5-6 Operation
MN1276
There are 7 parts to the setup procedure:
Motor Select your motor from the list. First, select the general “Motor Type”. Then select
your specific “Motor ID”. All of the parameters will be entered if your motor is on
the list. If your motor is not on the list, you must define a motor and all of its
parameters. If your motor is not listed, select “User Models” in the Library menu
and enter the motor parameters. Click “Download” when finished.

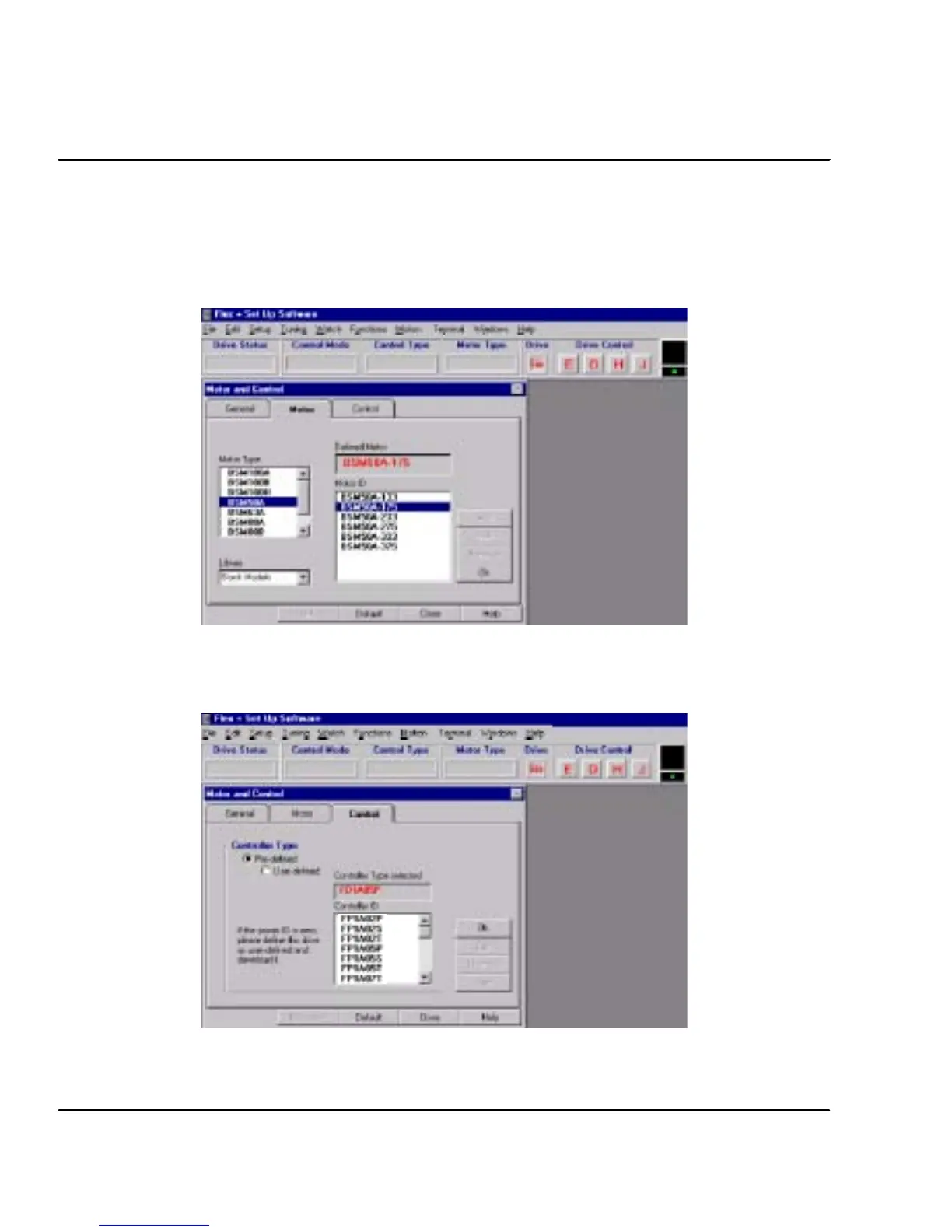

Figure 5-2 Motor Selection Screen
Control The “Control ID” is automatically selected. All of the parameters will be entered if
your control is on the list. Click “Download” when finished.
Figure 5-3 Control Selection Screen
