A-2 Manual Tuning MN1276
There are 7 parts to the setup procedure:
Motor Select your motor from the library. First, select the general motor type. Then
select your specific motor. All of the parameters will be entered if your motor is
on the list. If your motor is not on the list, you may define a motor and all of its
parameters. Click “Download” when finished.

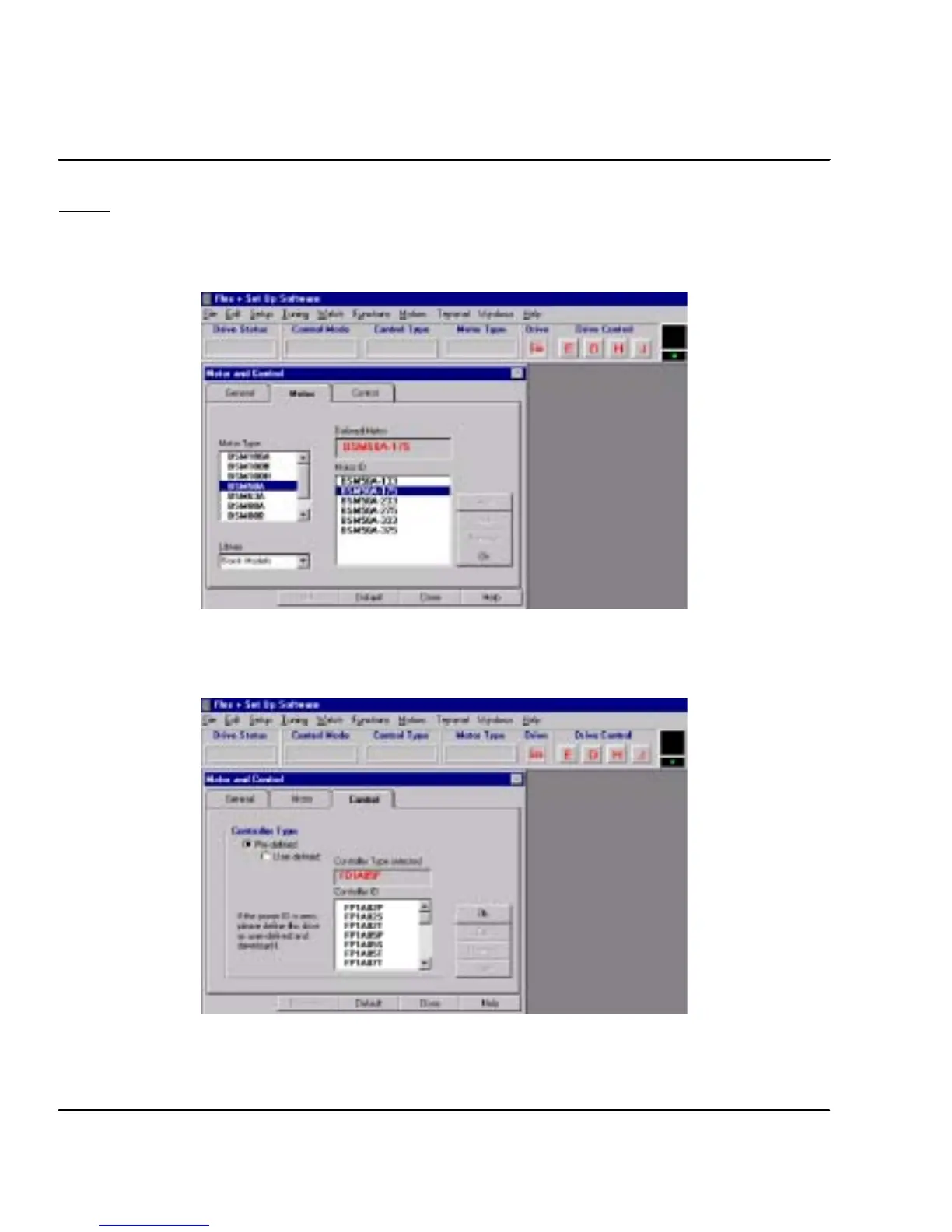

Figure A-3 Motor Selection Screen
Control The “Control ID” is automatically selected. All of the parameters will be entered if
your control is on the list. Click “Download” when finished.
Figure A-4 Control Selection Screen
