CAN Bus (Optional -- Not available for controls with encoder feedback)
Controls that are supplied with the CAN bus option have two additional
connectors, X10 and X11 (conform to DS102, version 2.0). T hese are shown in
Figure 9-1. CAN is a factory installed option.

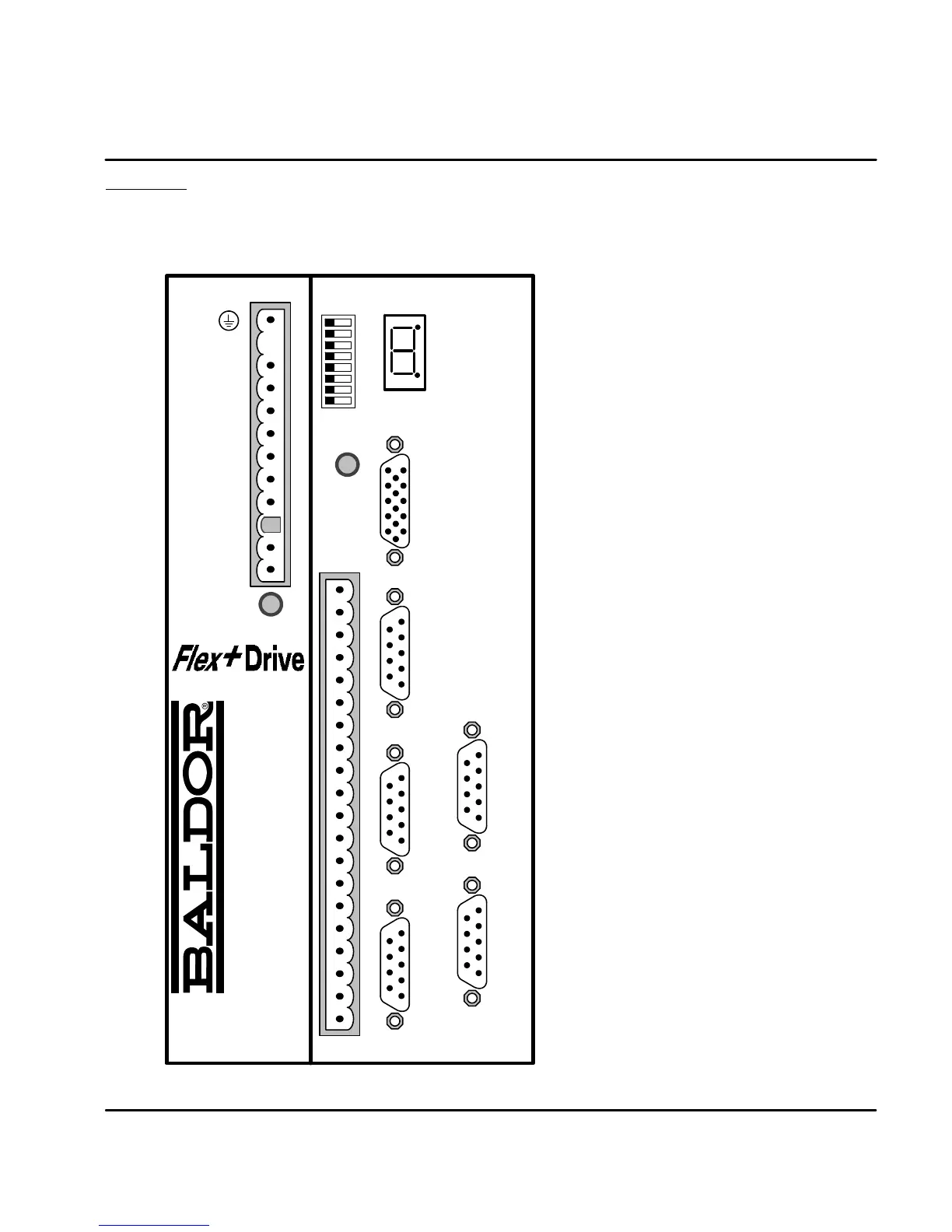

Figure 9-1 CAN Bus Connectors
AS1
1
2
3
4
5
6
7
8
Off/On
Ready
X3
DB On
Encoder In X9RS232 / 485 X6Encoder Out X7Resolver In X8
Monitor
X1
NC
L
N
U
V
W
R1
R2
+24V
0V
X10 - CAN Bus
1 Reserved 6 GND
2CAN_L 7CAN_H
3 GND 8 Reserved
4 Reserved 9 VCC
5 Reserved
CAN X10CAN X11
X11 - CAN Bus
1 Reserved 6 GND
2CAN_L 7CAN_H
3 GND 8 Reserved
4 Reserved 9 VCC
5 Reserved
Note: On some models, the width of the
control may increase slightly when
equipped with the CAN option.
