Baldor NextMove ESB-2 User Manual

4-10 Input / Output MN1957
www.baldormotion.com

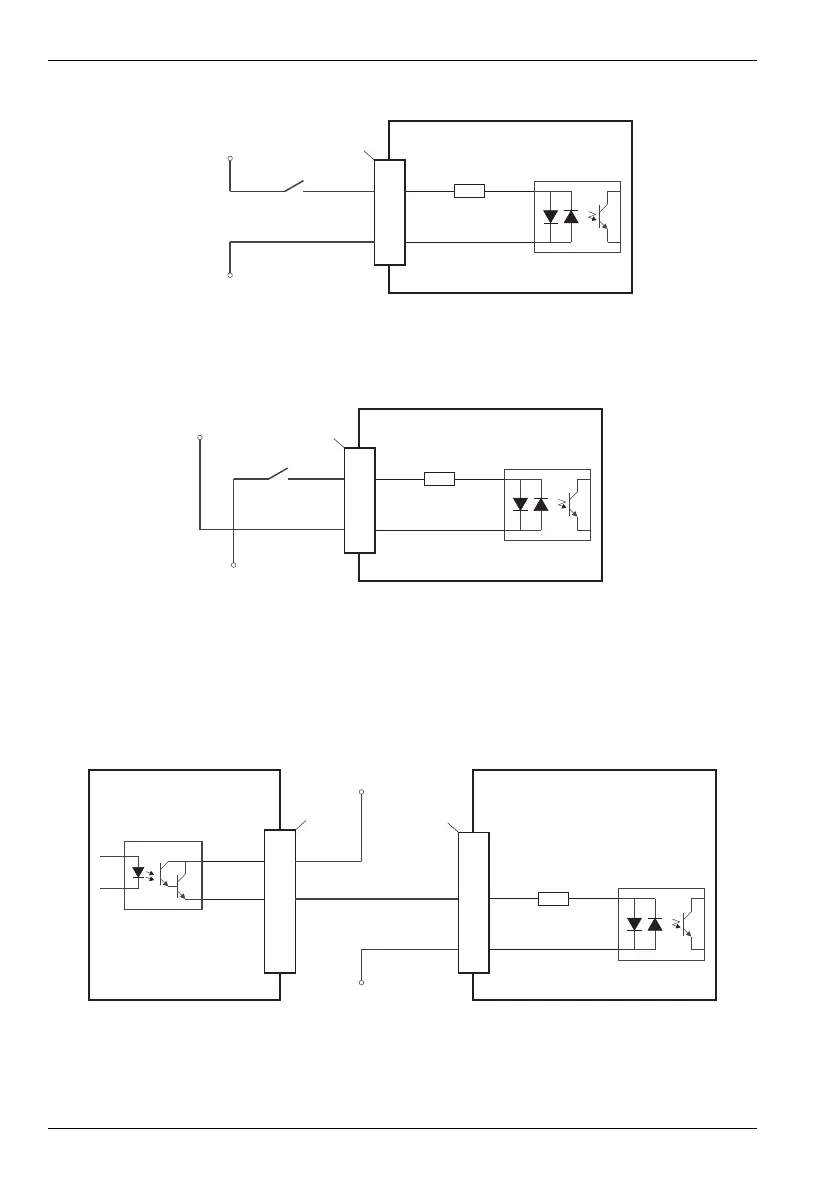

4.3.1.5 Typical digital input wiring
Figure 12: Digital input - typical ‘active high’ input connection using a switch
Figure 13: Digital input - typical ‘active low’ input connection using a switch
Note: The circuits shown in Figures 12 and 13 are not suitable for use with fast inputs
DIN0 to DIN3. Using a mechanical switch, relay contacts or other source liable
to signal ‘bounce’ could cause unwanted multiple triggering.
Figure 14: Digital input - typical connections from a Baldor MicroFlex
NextMove ESB-2
DIN4
User
supply
24V
User
supply
GND
X9
8
9
CREF1
TLP280
DIN4
User
supply
GND
CREF1
NextMove ESB-2
X9
8
9
TLP280
User
supply
24V
NextMove ESB-2MicroFlex / equipment output
DIN4
Status+
Status-
User
supply
24V
User
supply
GND
X9
X3
82
3
9
CREF1
NEC PS2562L-1
TLP280
