Balluff MATRIX VISION mvBlueFOX-200wC User Manual

1.9 Technical Data 41

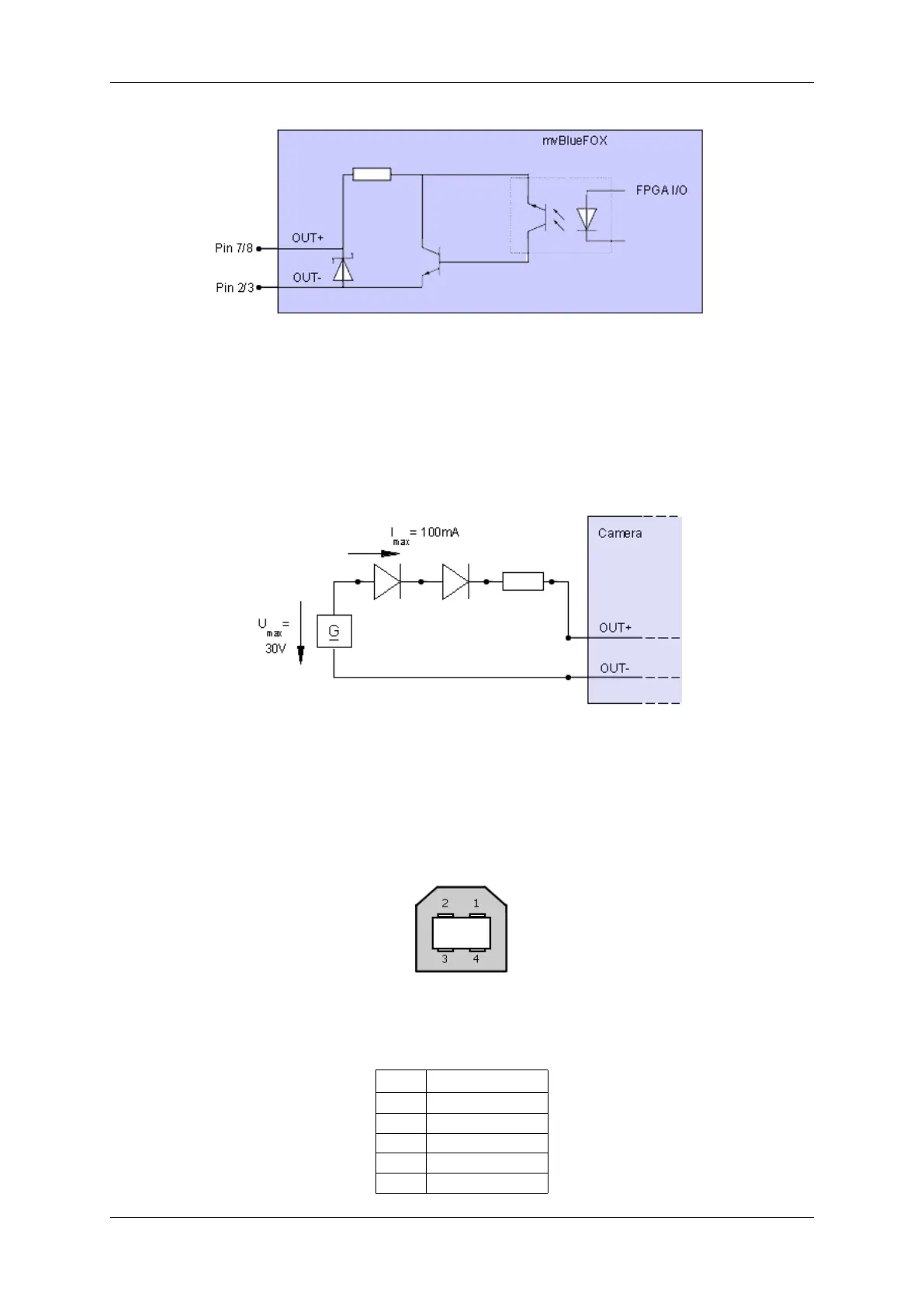

Figure 6: DigOut mvBlueFOX-xxx
1.9.2.1.1.3 Connecting flash to digital output You can connect a flash in series to the digital outputs as shown
in the following figure, however, you should only use LEDs together with a current limiter:
Figure 7: Connecting flash (LEDs) to DIG OUT
1.9.2.1.2 USB connector, type B (USB 2.0)
Figure 8: USB B connector (female)
Pin Signal
1 USBPOWER_IN
2 D-
3 D+
4 GND
Shell shield
