Balluff Micropulse BTL5 Series User Manual

www.balluff.com • 1-800-543-8390
11
BTL5-_-M_-J-DEXC-TA12
Micropulse Linear Position Sensor
Analog & Digital-Pulse Outputs
Explosion-Proof Rod Style

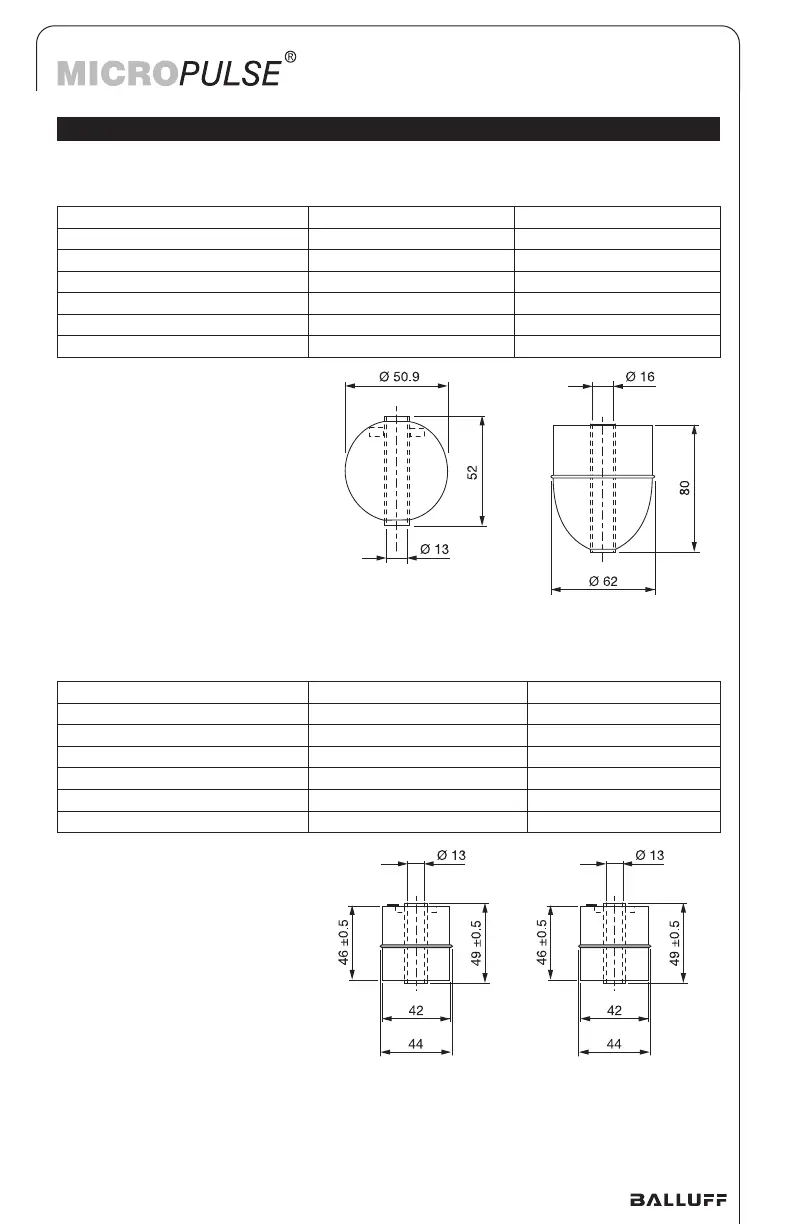

5.3 Floats
NOTE: The use of float magnets other than those shown on this page is not approved.
Order code BAM014A BAM014E
Part number BTL2-S-5113-4K-EX BTL2-6216-8P-EX
Material Stainless 316 Stainless 316
Weight 26 g 41 g
Minimum fluid density 0.7 g/cm
3
0.6 g/cm
3
Immersion depth in 1 g/cm
3
(H
2
0) 26 mm 41 mm
Immersion depth in 0.7 g/cm
3
40 mm 57 mm
Order code BAM0148 BAM0147
Part number BTL2-S-4414-4Z01-EX BTL2-S-4414-4Z-EX
Material Stainless 316 Stainless 316
Weight 52 g 34 g
Minimum fluid density 0.85 g/cm
3
0.7 g/cm
3
Immersion depth in 1 g/cm
3
(H
2
0) 45 mm 30 mm
Immersion depth in 0.7 g/cm
3
Sinks 39 mm
