Balluff Micropulse BTL5 Series User Manual

1-800-543-8390 • www.balluff.com
6
BTL5-_-M_-J-DEXC-TA12
Micropulse Linear Position Sensor
Analog & Digital-Pulse Outputs
Explosion-Proof Rod Style

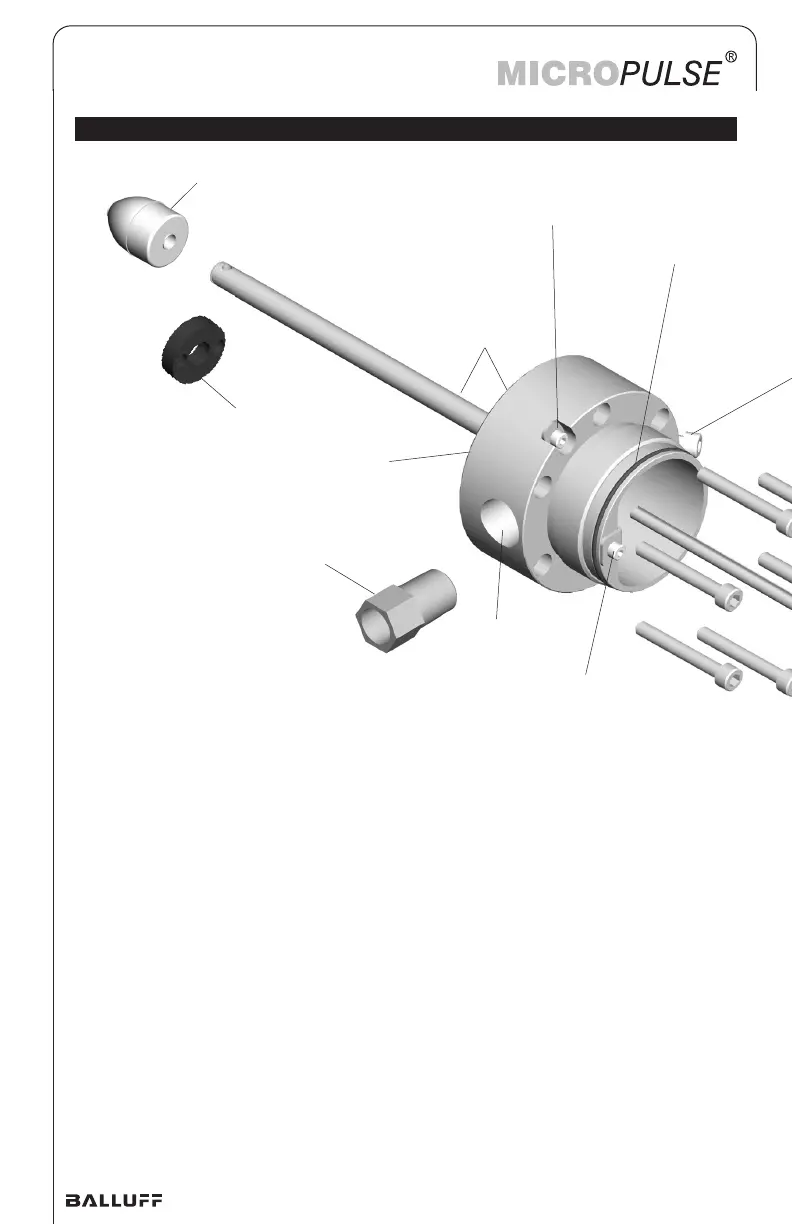

Key:
1. Housing Cover.
2. Electronics Module.
3. Pressure Housing.
4. Conduit Entry
(Modified 1/2"-14 NPT per FM 3615, 3.3.3, D, 1)
5. Analog Programming Tool (optional). See section 6.5 for additional information.
6. Wiring Terminal Block. See section 6.4 for wiring information.
7. Electronics Module Retaining Screws.
8. Housing Screws. M6x45 A4-70 Socket-Head Cap Screws (6x–included).
(Replacement Screw Kit: BTL7-A-FK01-E-J-DEX)
9. Float Magnet–For use in liquid-level applications. See section 5.3 for additional options.
10. Position Magnet. See section 5.1 for additional magnet sizes.
11. Housing Cover O-Ring.
12. Flange O-Ring (not visible).
13. External Housing GND.
14. Internal Housing GND.
15. 1/2”-14 NPT-to-M20 Adapter (optional). See section 5.2 for additional information.
16. Cover secondary retaining screw.
17. Location of order code for replacement electronics module.
3
4
9
10
11
13
14
15
12
3 Component Overview
