BTL5-_-M_-J-DEXC-TA12
Micropulse Linear Position Sensor
Analog & Digital-Pulse Outputs
Explosion-Proof Rod Style

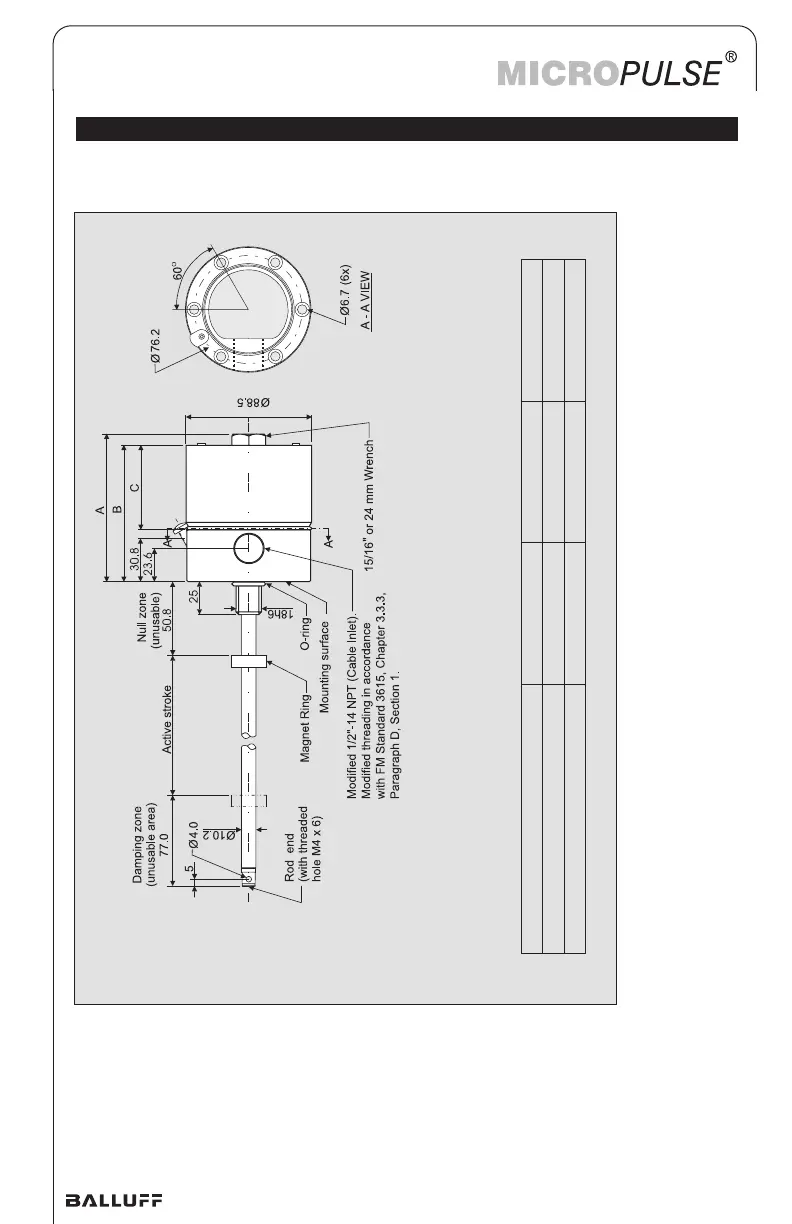

4.1 Dimensions
Mounting is accomplished using six M6x45 A4 (stainless) socket-head cap screws (supplied with linear position sensor) or six 1/4"-20x1-3/4" socket- head cap screws (user-supplied)
4 Mechanical Data
Electrical Interface Dim. A (mm) Dim. B (mm) Dim. C (mm) Analog, Digital, SSI, Quadrature 104.12 96.12 59.5 Profibus, CANbus 135.62 127.62 91
