BTL5-_-M_-J-DEXC-TA12
Micropulse Linear Position Sensor
Analog & Digital-Pulse Outputs
Explosion-Proof Rod Style

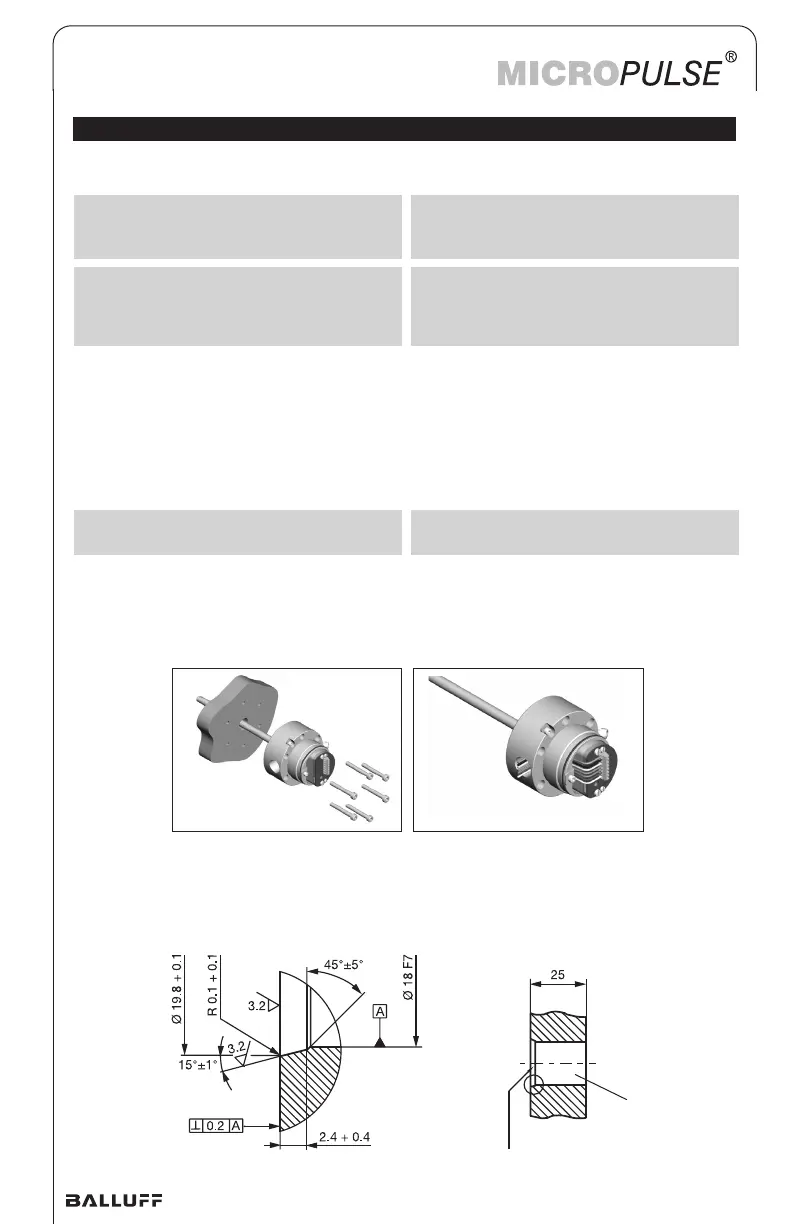

6.1 Installation Procedure
Step 1: Unscrew and remove housing cover.
Step 2: Install linear position sensor into position. Secure linear position sensor using six
M6x45 A4-70, stainless steel, socket head cap screws (supplied with linear position
sensor), or with 1/4"-20 x 1-3/4", stainless steel socket head cap screws. Tighten
screws to 3.5 Nm (2.6 ft-lbs.) torque. (Fig. 1)
Step 3: Connect wiring as indicated in section 6.4. (Fig. 2)
Step 4: For analog output versions only—If necessary, scale the active stroke range per the
instructions in section 6.5; otherwise, proceed to next step.
Step 5: Replace the housing cover and tighten to 25 ft-lbs. minimum, 30 ft-lbs. maximum.
Tighten secondary retaining screw (ATEX).
6.2 Installation in Hydraulic/Pneumatic Cylinders
If the linear position sensor is to be installed in a cylinder, prepare the cylinder port in
accordance with the diagram below.
thru-hole
Bevel for O-Ring 15.4x2.1
Fig. 1
Fig. 2
6 Installation
Warning!
Do not open when an explosive
atmosphere may be present.
Avertissement!
Ne pas ouvrir si l'environnement
est explosive.
Attention!
Seal all conduits within 18 inches per
NEC and CEC. Manufacturer does not
supply conduit.
Attention!
Scellez toutes les conduites au 18 pouces
par NEC et CEC. Le fabricant ne fournit
pas de conduit.
Use 90°C rated conductors. Utilisez des conducteurs
approuve 90° C
