12. Convergence
3
6

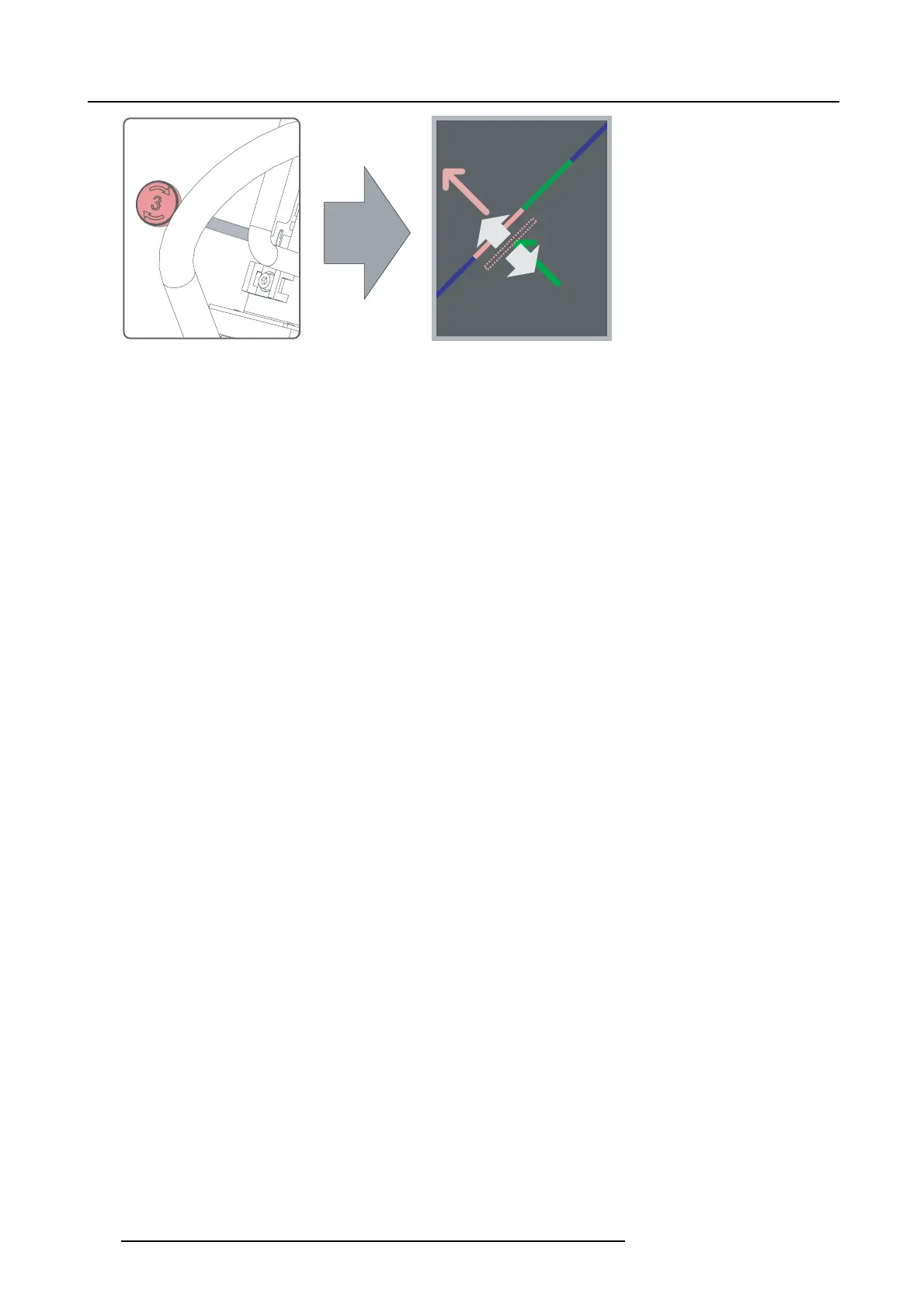

Image 12-7
Clockwise turning w ill move the line upwards
4. Repeat step 2 and step 3 until coincidence is obtained of the red pattern in the lower left and upper right of the pr ojected image.
5. Repeat from step 1 until full coincidence is obtained of the red pattern in the center, lower left and upper right of the projected
image.
120
R59770351 DP2K-20C 02/02/2010
