6. Input & communication
6.1 Introduction
General
The input & comm unication side of a DP 2K- 20C projector consis ts of a button m odule and 3 separate removable units, fan controller
module, Integrated cinema processor (ICP), HDSDI module and a C inema c ontroller m odule.
1
2
3
4
5
6
A
B
C
G
D
F
E

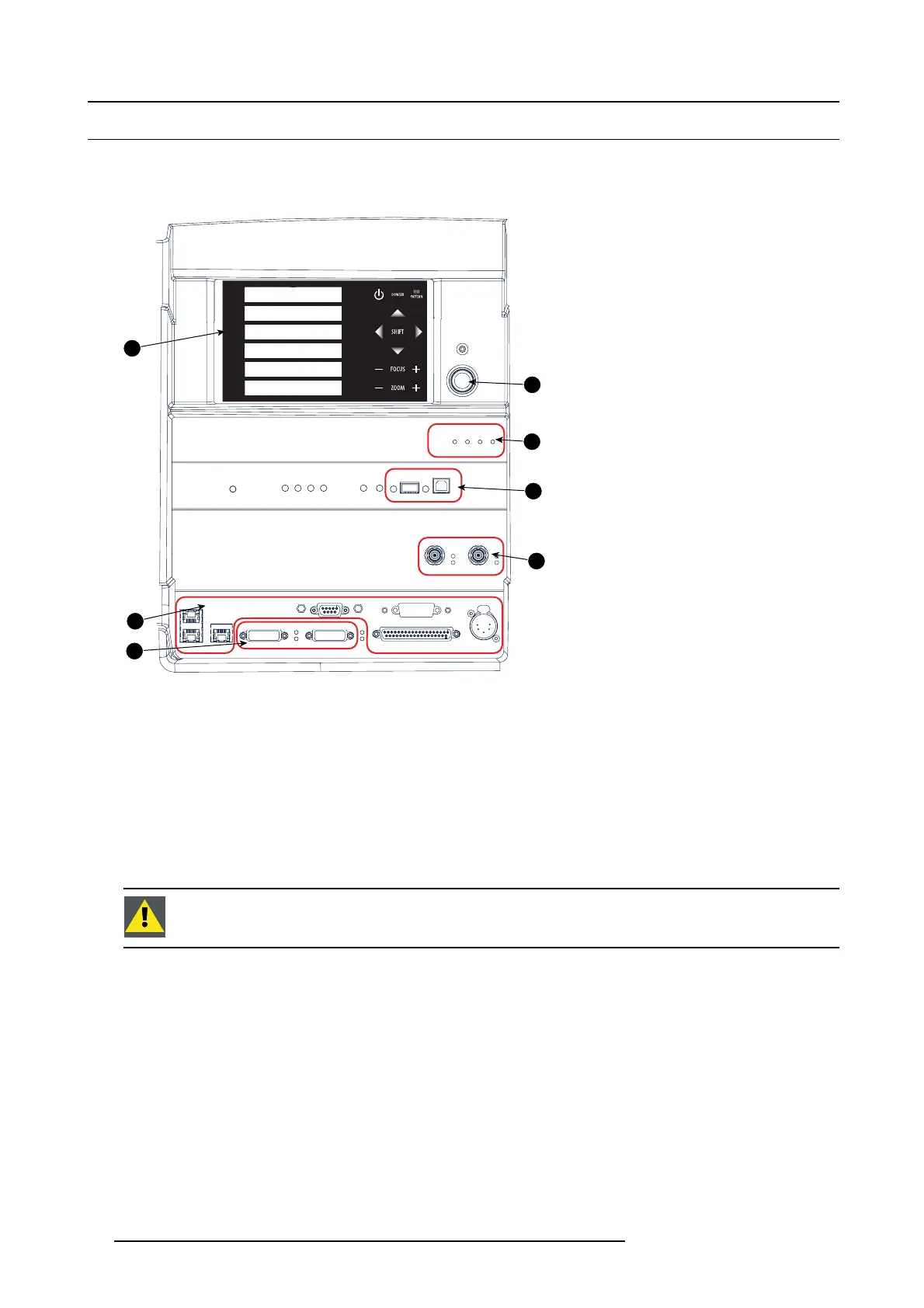

Image 6-1
Input and communication
A
Local keypad (button module)
B
Communication ports
C
DVI input ports
D
Socket for security key
E Fan controller module
F
USB ports (for future ex pansion) and
LED indications for service purpo ses
G SMPTE inputs (HDSDI)
CAUTION: A unit m ay only be removed by qualified service personnel. Rem oving a un it will result in an
authorization request upon starting.
58 R59770351 DP2K-20C 02/02/2010
