12. Convergence
3
6

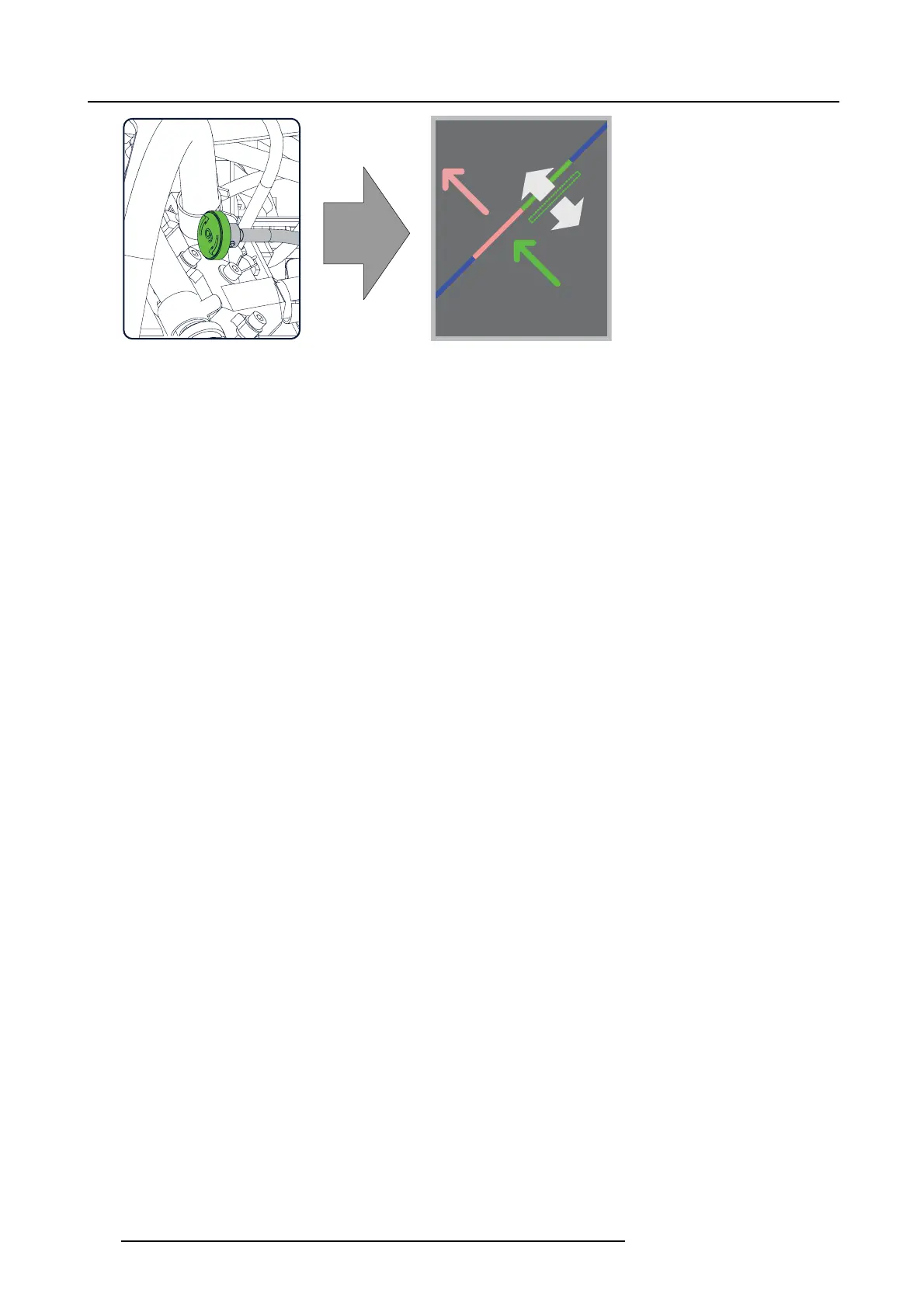

Image 12-10
Clockwise turning w ill move the line upwards.
4. Repeat step 2 and step 3 until coinc idence is obtained of the green pattern in the lower left and upper right of the projected image.
5. Repeat from step 1 until full coincidence is obtained of the green pattern in the center, lower left and upper right of the projected
image.
6. Close the sealed compartment and reinstall all covers of the projector.
122
R59770351 DP2K-20C 02/02/2010
