7. Communicator touch panel
W

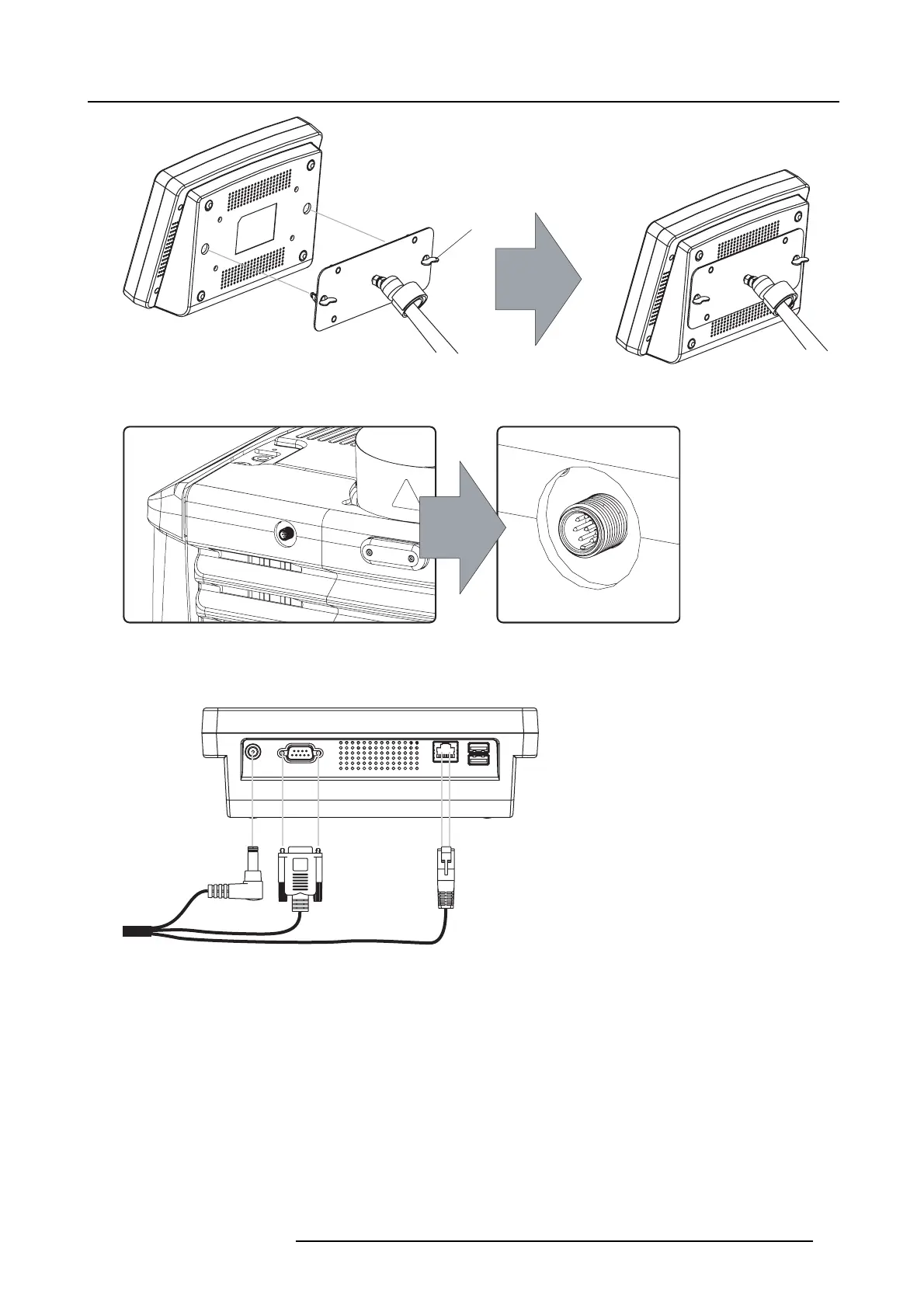

Image 7-5
Mount touch panel
4. Connect the circular plug of the multi c able with the circular s ocket at the rear side of the D P 2K-20C projector.
Image 7-6
Connections
5. Attach the multi cable to the swivel arm us ing the two Velcro strips.
6. Connect the DC plug, the RJ 45 E thernet plug and the D-SUB plug into their respective s ockets on the touch panel interface.
Image 7-7
Connections
R59770351 DP2K-20C 02/02/2010 71
