6. Lamps and lamp houses

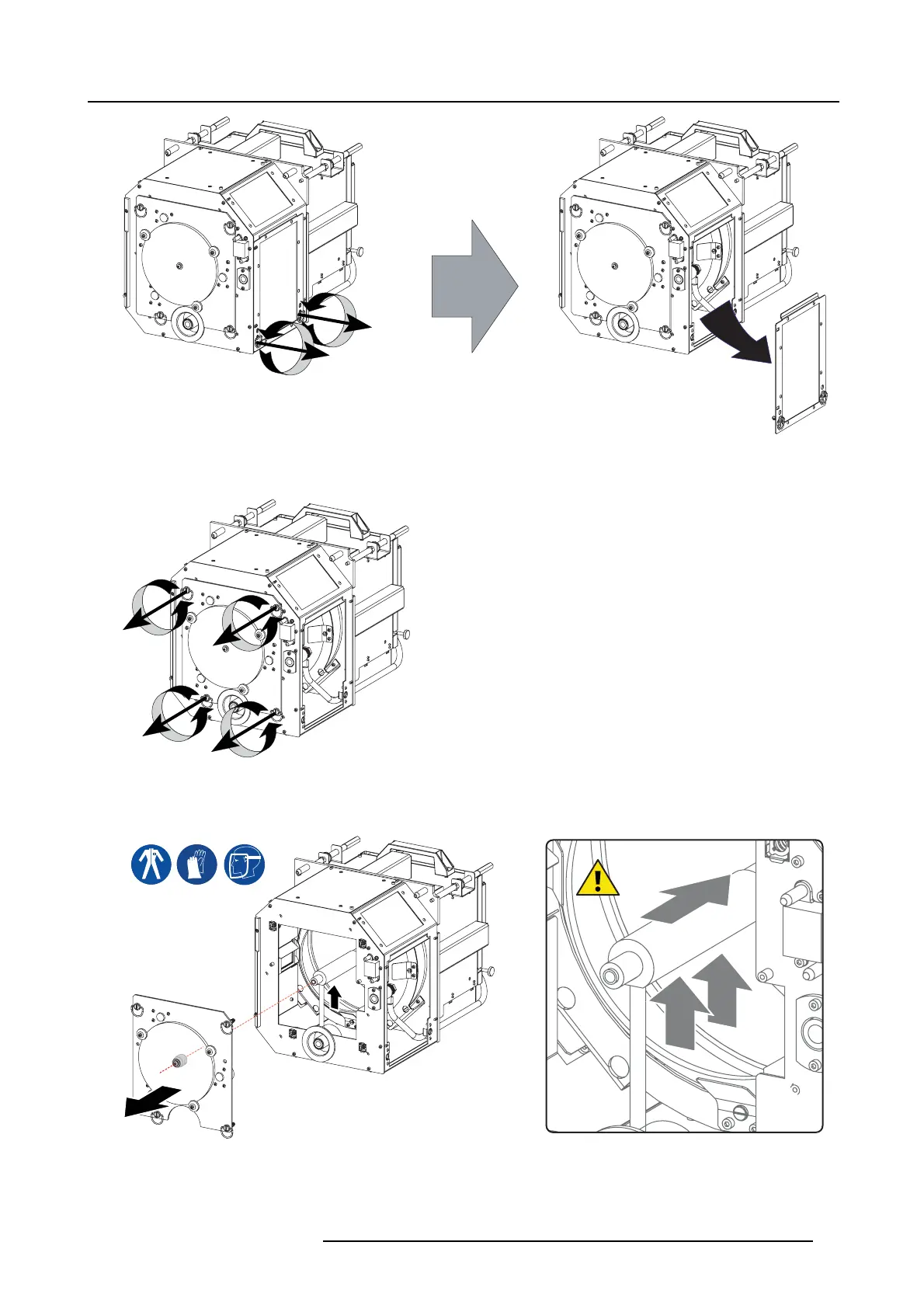

Image 6-7
3. Release the four retaining thumbscrew s of the UV blocker assem bly as illustrated. M
ake sure that the UV bloc ker assembly
remains in its position while releasing the screws.
Image 6-8
4. Support the x enon lamp inside the Lamp House with one hand while removing the U V blocker assembly from the Lamp House.
Note that s ome xenon lamps are ins talled with an anode adaptation bushing.
Caution: Ensure that you wear protective clothing, a full face shield and protective gloves.
Image 6-9
5. Slide the white anode socket, which is connected v ia a thick wire with the xenon lamp, up wards away from its position and then
remove the xenon lamp with anode soc ket from the Lamp House.
R5905043 DP2K-12C/11CX 19/02/2018
99
