6. Lamps and lamp houses

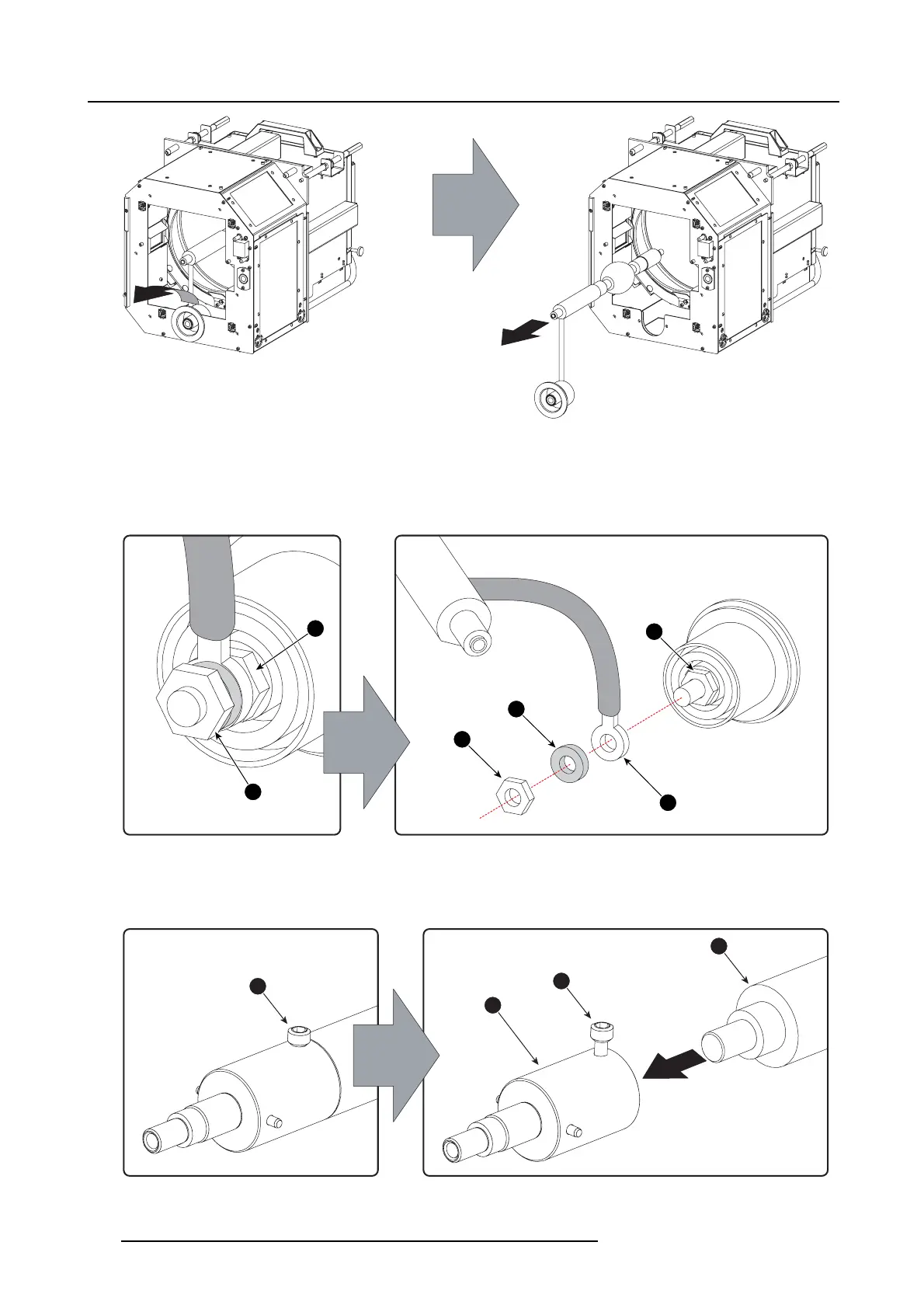

Image 6-10
6. Place the xenon lamp into a protective container or wrap a protective cloth around the xenon lamp prior to proceed with this
procedure.
7. Remove the anode wire lug from the anode socket. Use for that two open end wrenches of 17 mm. H old one nut (reference
7) with one wrench w hile releasing the other nut (reference 4) with the other wrench. Note that a plain w asher (reference 5) is
provided between the lock nut (reference 4) and the anode wire lug (reference 6).
5
7
7
6
4
4
Image 6-11
Note: The electrical connection pins of older Lamp H ouses may contain two flat washers, one on each side of the wire lug. N ew
Lamp Houses can contain only one flat washer due to the shorter thread clearance of the new im proved connection pins.
8. Remove the cathode lamp adaptor (reference 11) from the xenon lamp (reference 13) as illustrated. Use a 5 mm Allen wrench
to release t he adaptor fixation screw (reference 12) of the ada ptor.
12
12
11
13
Image 6-12
100 R5905043 DP2K-12C/11CX 19/02/2018
