11. Lenses and Lens holder
3
4

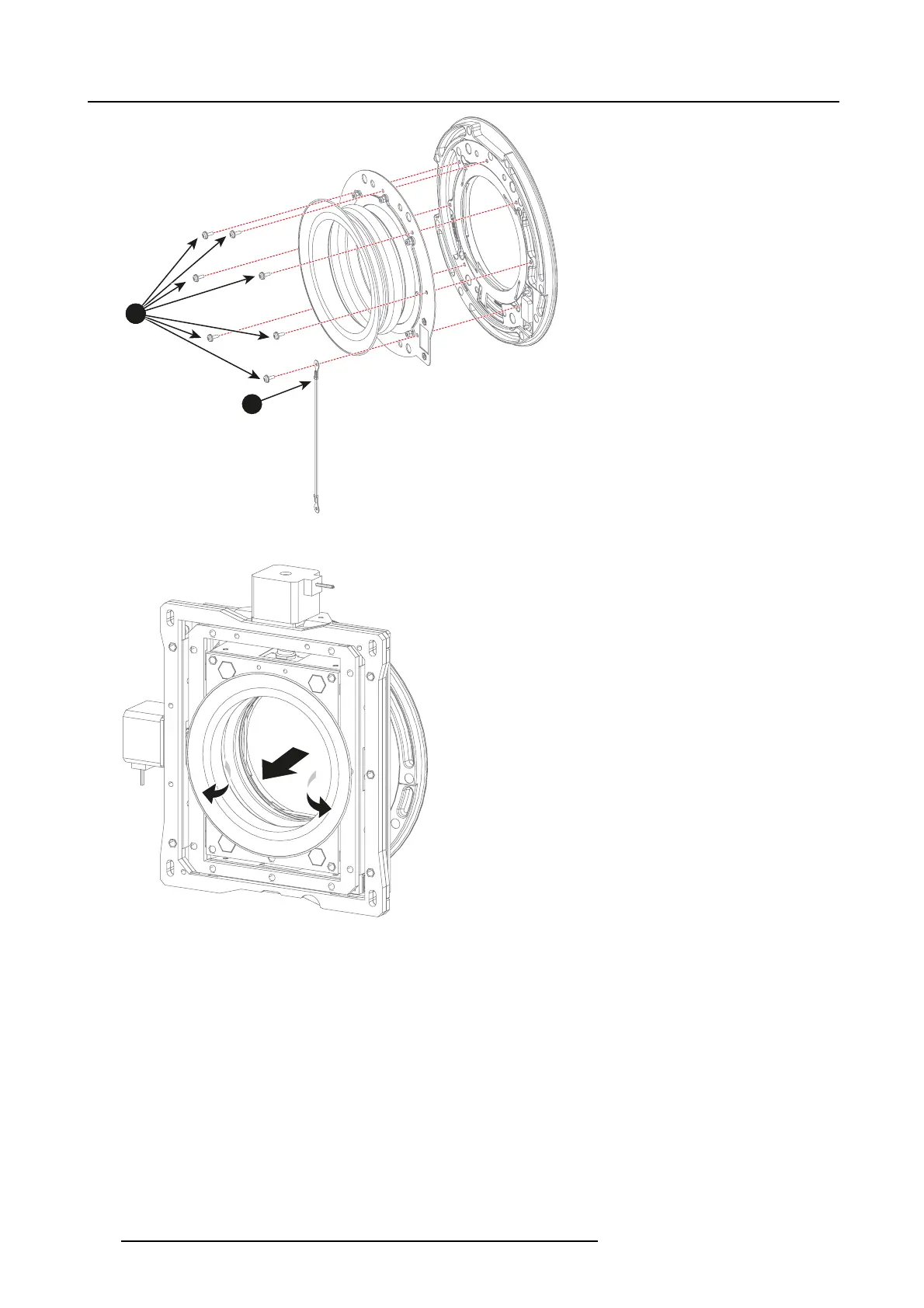

Image 11-34
5. Carefully reinstall the front plate onto the Lens Holder.
Help the rubber through the L ens Holder onto the other side.
Image 11-35
6. Use a 13 mm nut dr iver to fasten the four big nuts (reference 2). Fa sten the big nuts crosswise bit by bit. Ensure that the upp er
two rods and the lower left rod contain a big spring.
202
R5905043 DP2K-12C/11CX 19/02/2018
