Barco ICMP Installation Manual

2. ICMP functionality

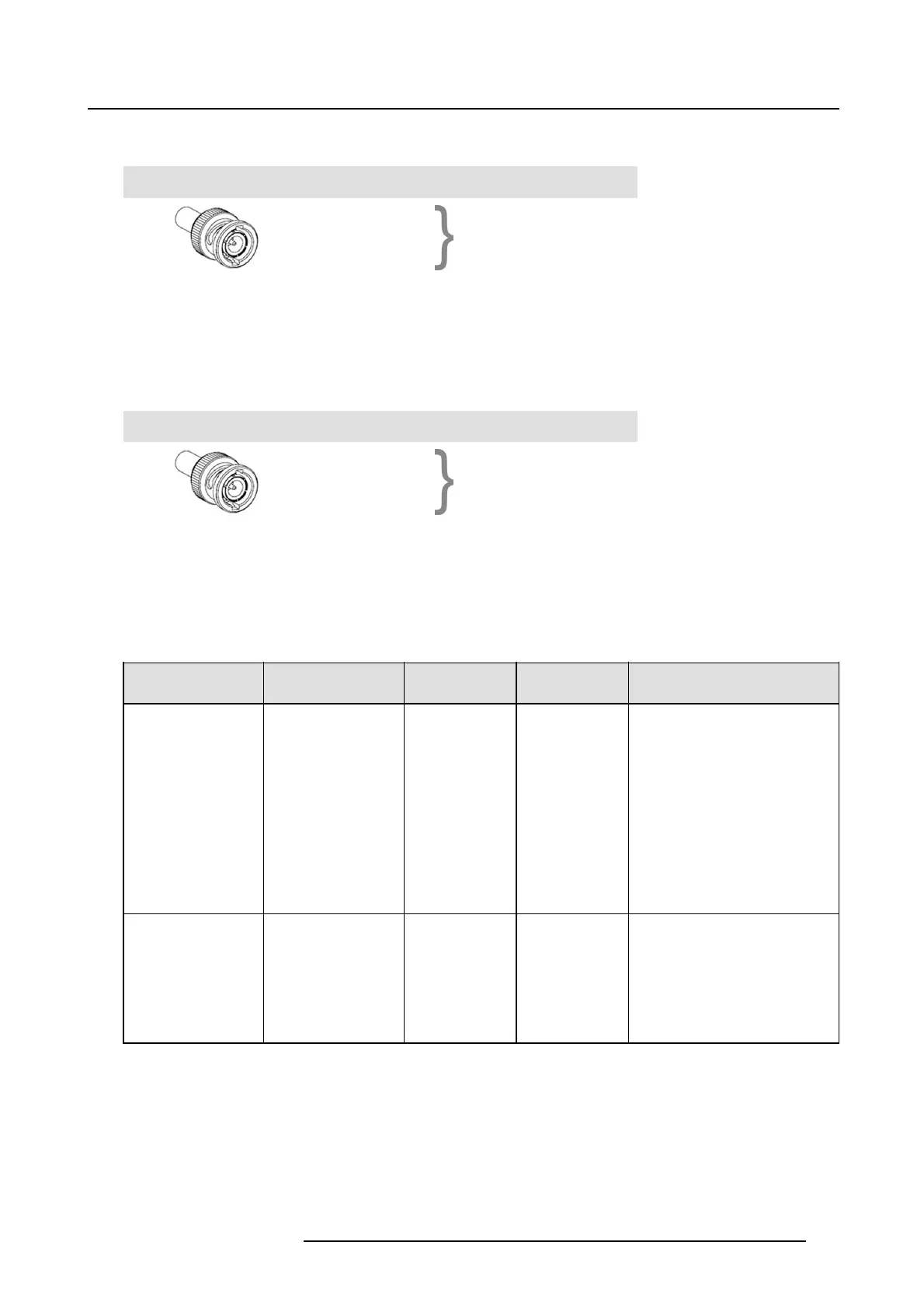

3G HD-SDI signal
3G
3Gb/s
1080p 50/60 (Level A)
or
1080p 4:4:4 (Level B)
3G HD-SDI uses a higher data rate (2.97 Gb/s). This allows a single cable interface to achieve the same
capabilities of a Dual-Link HD-SDI implementation.
In direct mapping (level A) this is used to achieve higher frame rates. (50, 59.940 and 60 fps streams are
supported).
Dual Stream 3G HD-SDI signal
Dual Stream 3G
3Gb/s
HD 4:2:2 Signal #1
and
HD 4:2:2 Signal #2
Dual Stream 3G is a specific variant of the 3G signal which combines two completely separate 4:2:2 image
streams into a single 3G signal. This can be used to transmit stereosc
opic streams by keeping the left
and right eye signals together.
SMPTE 292M STANDARD 1.485 Gb/s HD-SDI SIGNALS
Standard HD-SDI (SMPTE 292M) formats
SMPTE S tandard Source
Resolution
Frame Rate Display Rate
Scan Type
SMPTE 296M
1280 x 720 23.976
24
25
29.970
30
50
59.940
60
23.976
24
25
29.970
30
50
59.940
60
Progressive
Y Cb Cr 4:2:2 10-Bit
SMPTE 274M
SMPTE 428-8
1920 x 1080
2048 x 1080
23.976
24
25
29.97
30
23.976
24
25
29.97
30
Progressive
Y Cb Cr 4:2:2 10-Bit
R5905722 ICMP 09/11/2016 17
