Barco RLM W12

23

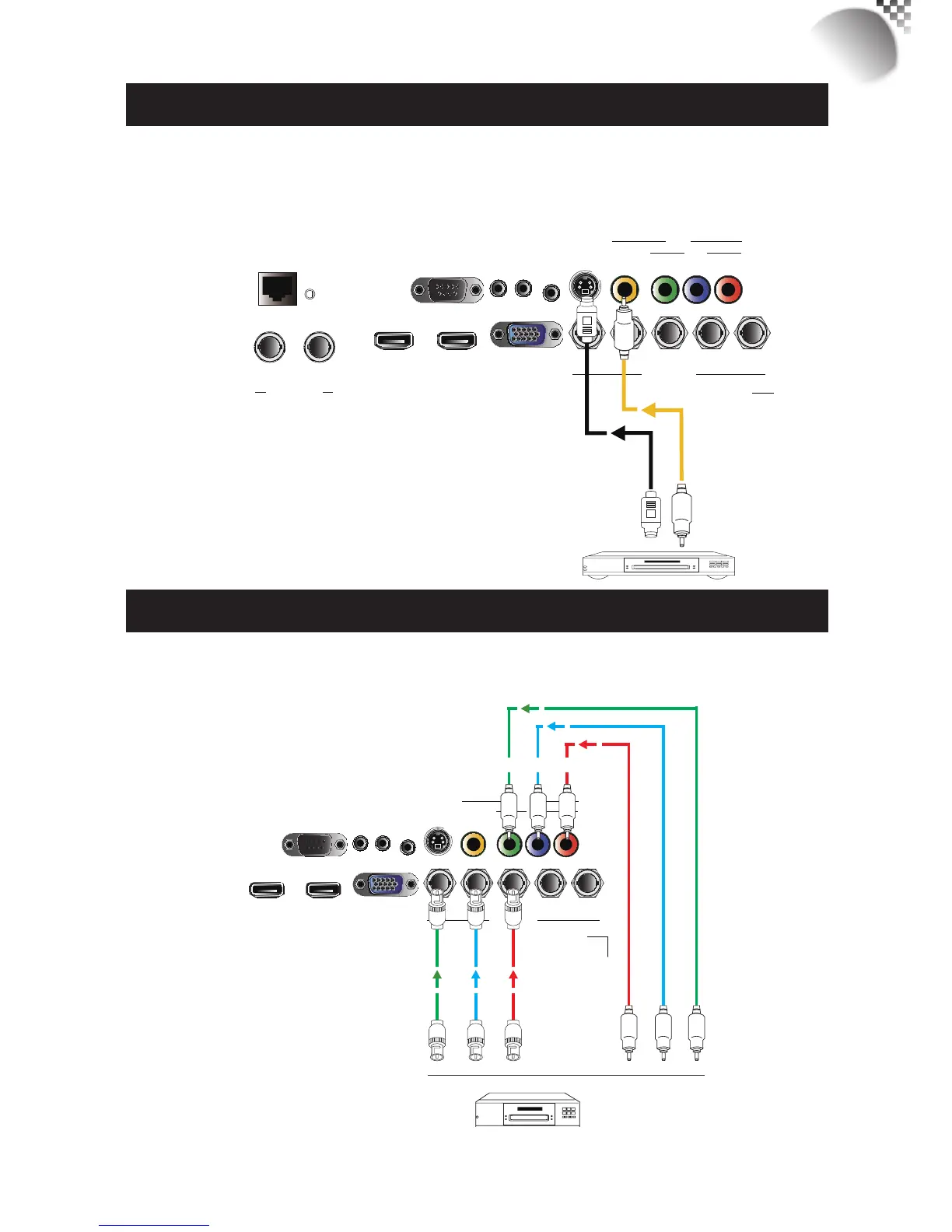

S-Video/Video connection
IftheimageinputdeviceoffersbothS-VideoandVideoconnection,itisrecommendedthat
youchooseS-Videotoobtainbetterimagequality.IfboththeS-VideoandVideoinputsare
connectedtotheprojector,theprojectorwillprioritizeS-Videosignalinputandimagefrom
theVideoinputwillnotbeplayed.
 
S-VIDEO VIDEO YUV 1
RGB-S
RS-232
12V TRIGGER
IR ext.I II
350mA
RGBHV / YUV 2
G/Y B/Pb R/Pr H VRGB-HV/SOG
HDMI
 HDMI 
IN OUT
10/100 BASE-T
SDI / HDSDI / 3G
DVD player, VCR, satellite receiver,
LD and so forth

COMPONENT connection
Takethe3/5cabledRGBcomponentvideoconnectorsfromthesourceequipmenttothe
projector’sCOMPONENT1SCARTorCOMPONENT2jacks.
 
S-VIDEO VIDEO YUV 1
RGB-S
RS-232
12V TRIGGER
IR ext.I II
350mA
RGBHV / YUV 2
G/Y B/Pb R/Pr H VRGB-HV/SOG
HDMI
 HDMI 
DTV
(YPbPr)
Y Pb Pr
DTV set-top-box or other compo-
nent (YPbPr) input source
Installing the projector
4
