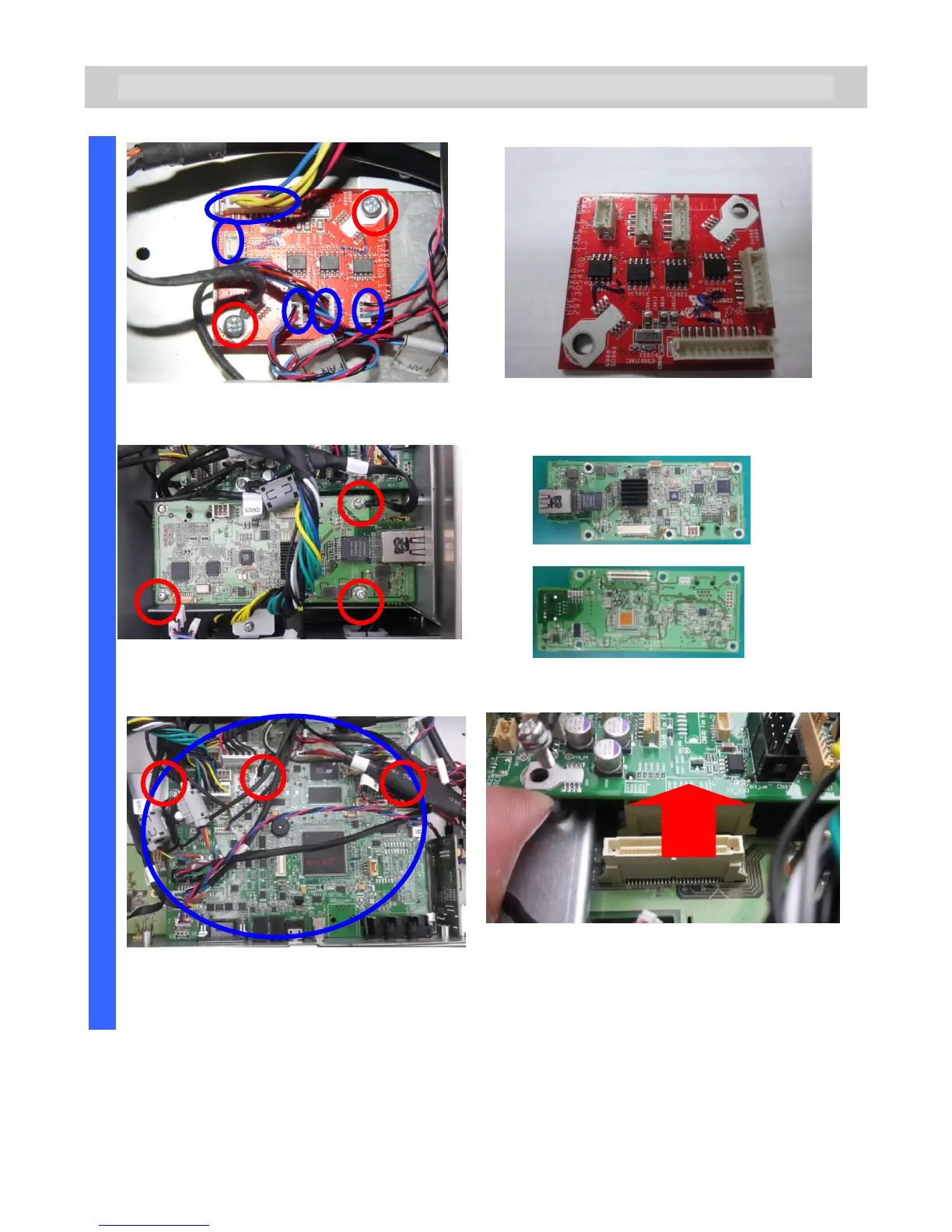

4-6 Fan E Board & HD BaseT Board & Micor control Board & RJ-45 Board
Loosen 2 screws and unplug 5
connectors on the Fan E Board.
Take out the Fan E Board.
Loosen 3 screws on the HDBaseT Board.
Take out the HDBaseT Board.
Unplug 23 connectors and loosen 3
screws on the Micor control board.
Disconnect the left connector under Micro
control board.
