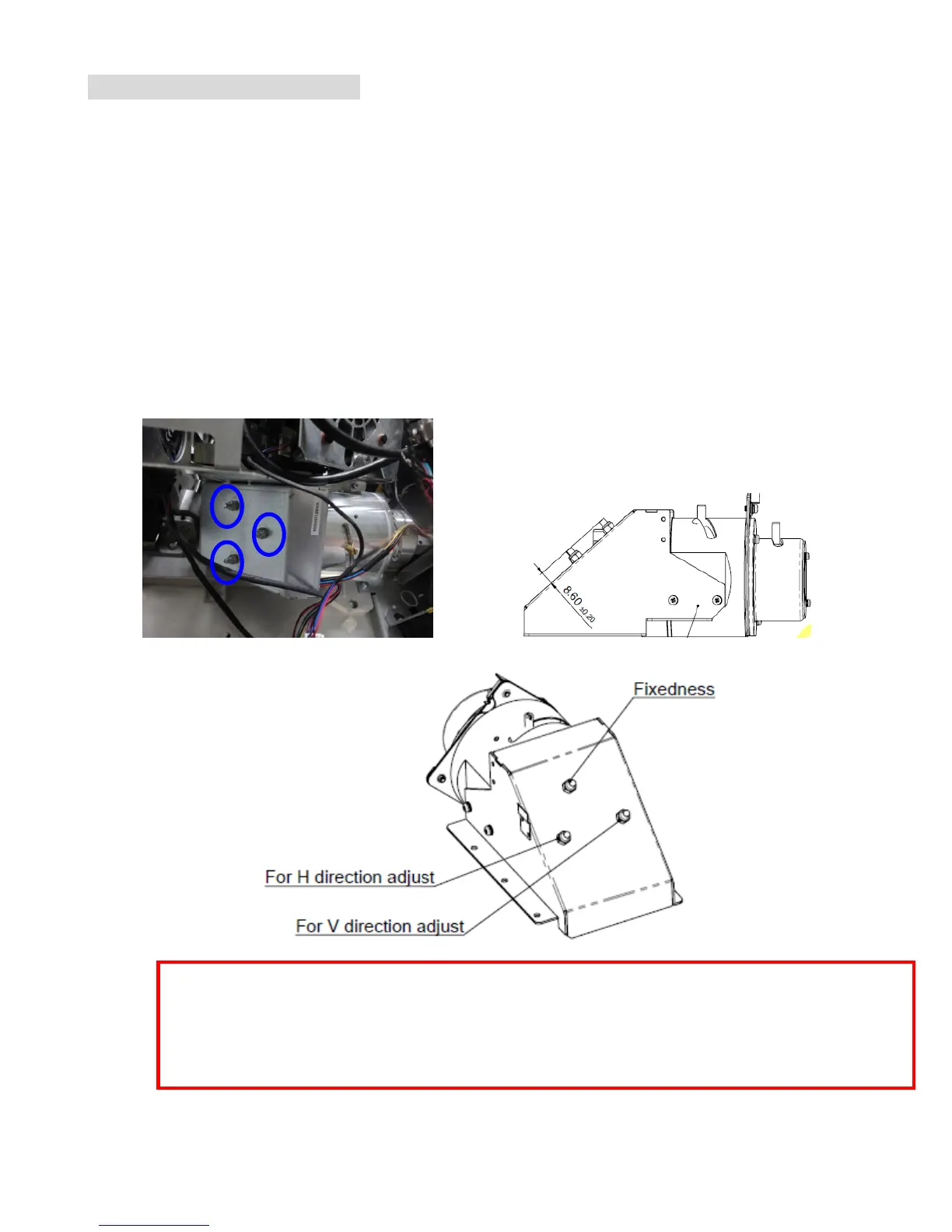

6-2. Folding Mirror Adjusting
1. Use 7 mm Hex-Sleeve screwdriver to adjust.
2.
Check the full-white image where color band is, and slight adjust fixed-nut to
remove it.
3. When finish adjusted, add TB1401B glue on the nuts to fix it.
A
C
B
(1) To adjust nut A to move the image vertically
(2) To adjust nut B to move the image horizontally
(3) Nut C is to confirm the reflector default position (The distance from bracket to top of
screw is 8.6 ± 0.2)
