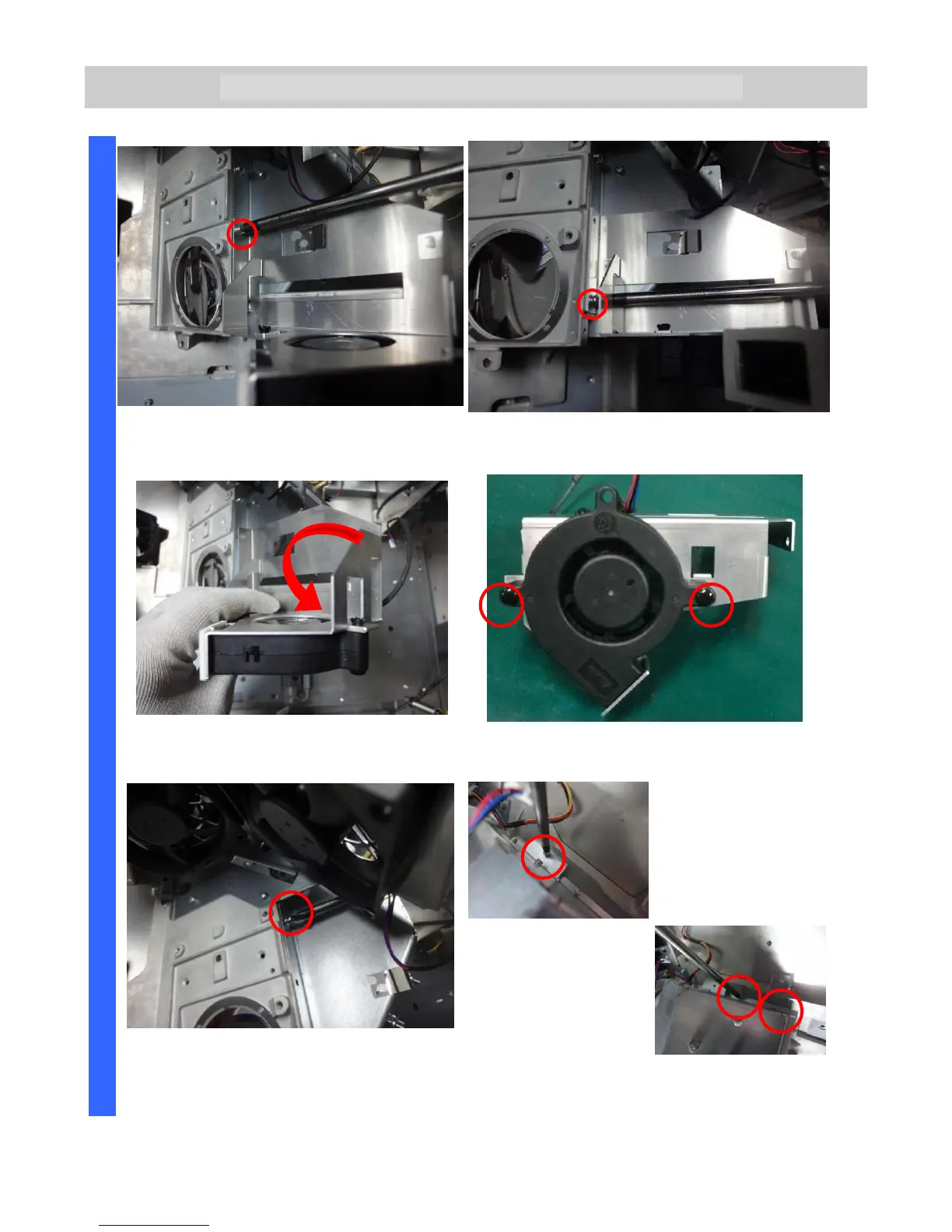

4-18 Illumination & Fan 6 & Fan 7 & Fan 10 & Fan 11
Loosen first screw on the bottom side of
Fan 11 bracket.
Loosen second screw on the bottom side of
Fan 11 bracket.
Take off the Fan 11 module.
Loosen 2 plastic pins on the Fan 11 bracket.
And, take off the Fan11.
Loosen 1 screw on the left bottom side of
the illumination.
Loosen 3 screws on the right bottom side of
the illumination.
