10.5 Front XLR output voltage control
What can be done?
The output voltage on the front XLR connector can be enabled or disabled. If enabled, the output voltage level
can be set to 0 V, 12 V or 24 V.
The output voltage will depend on the application or peripheral used. For example, the optional external
mechanical shutter requires 12 V. The motorized rigging frame on the other end requires 24 V.
How to enable or disable?
1. In the main menu, select System Settings → Communication → DMX.

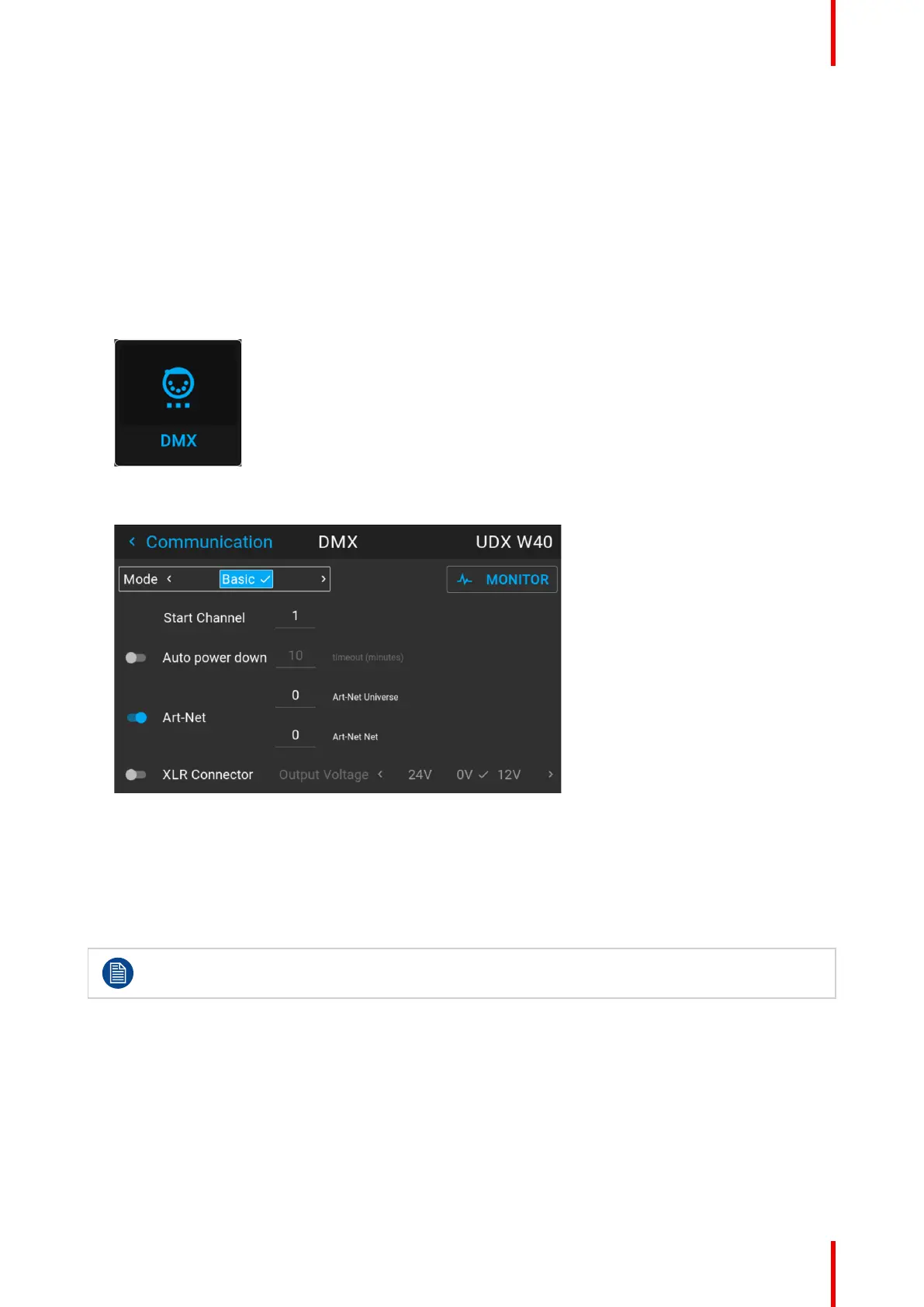

Image 10–29 Communication menu, DMX
The DMX menu is displayed.
Image 10–30 Example of the DMX menu
2. On the bottom of the DMX menu, Enable the XLR connector slider.
3. Select the desired Output Voltage.
10.6 GSM configuration
Only possible when a GSM module with SIM card is installed in the projector.
When to use the GSM menu
The GSM menu by itself does not have any functionality. The main purpose of this menu is to read out the
necessary data from the SIM card in the GSM module.
You may require this information when using specific connectivity functions (e. g. configuring the Projector
Management Suite in a mobile–only setup).
