151R5911443 /08 UDM

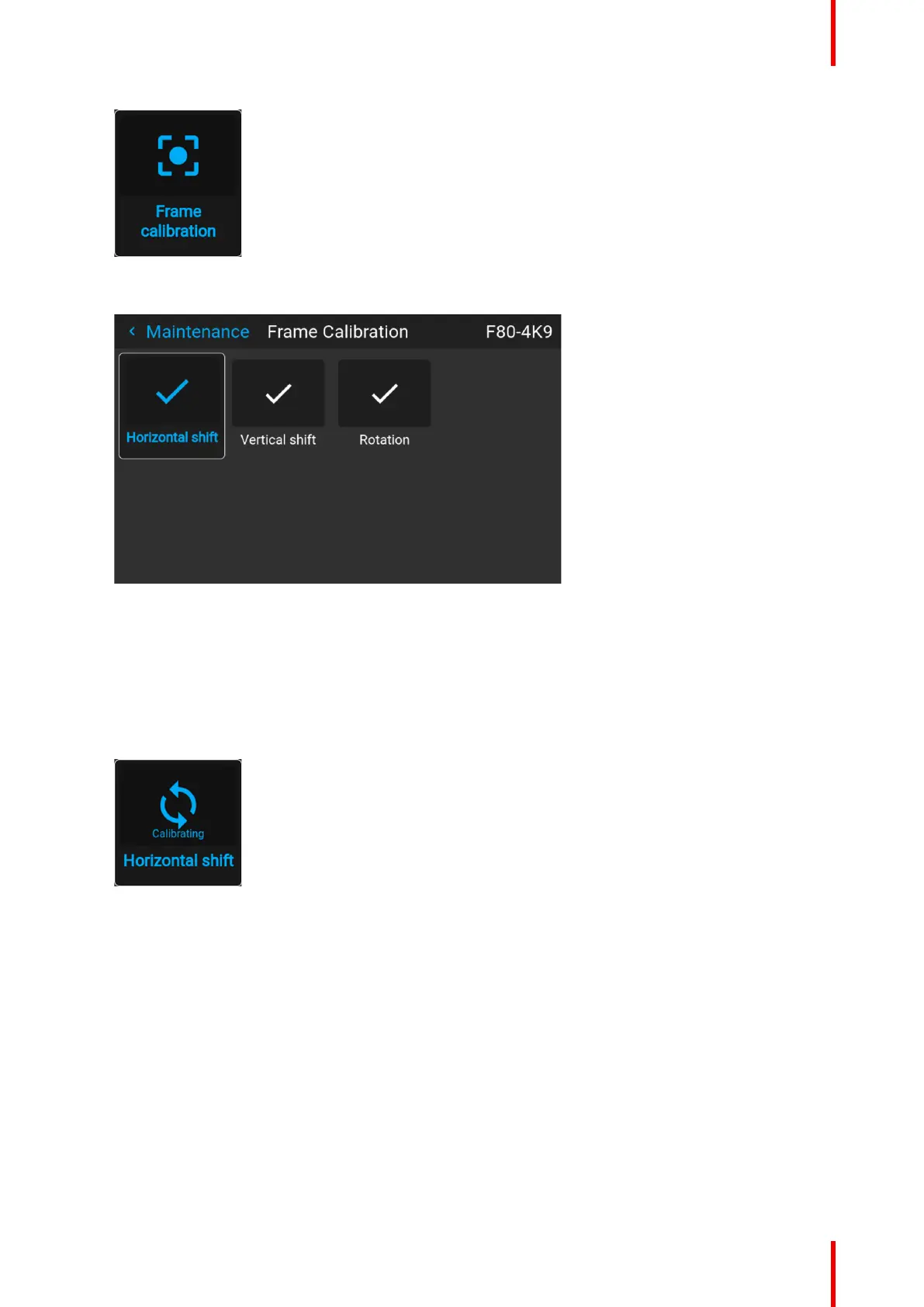

Image 10–62 Maintenance menu, Frame calibration
The Frame calibration menu is displayed.
Image 10–63 Example of the Frame calibration menu
2. In the Frame Calibration menu, select the desired calibration action and click OK.
You can select one of the following functions:
• Horizontal shift
• Vertical shift
• Rotation
The text Calibrating will be displayed until the calibration is completed.
Image 10–64 Example of a calibration in progress
When an error is detected, the message Calibration Error is displayed next to function.
10.19 Electronic Convergence
What can be done?
The convergence patterns can be used to check the convergence alignment of red, green and blue. If there is
a misalignment of at least one 1 pixel, an electronic realignment is possible.
Mechanical realignment of the convergence can only be done by a qualified service technician.
How to display the convergence settings
1. In the main menu, navigate to Settings → Maintenance → Electronic Convergence.
GUI – System Settings
