R5911443 /08 UDM152

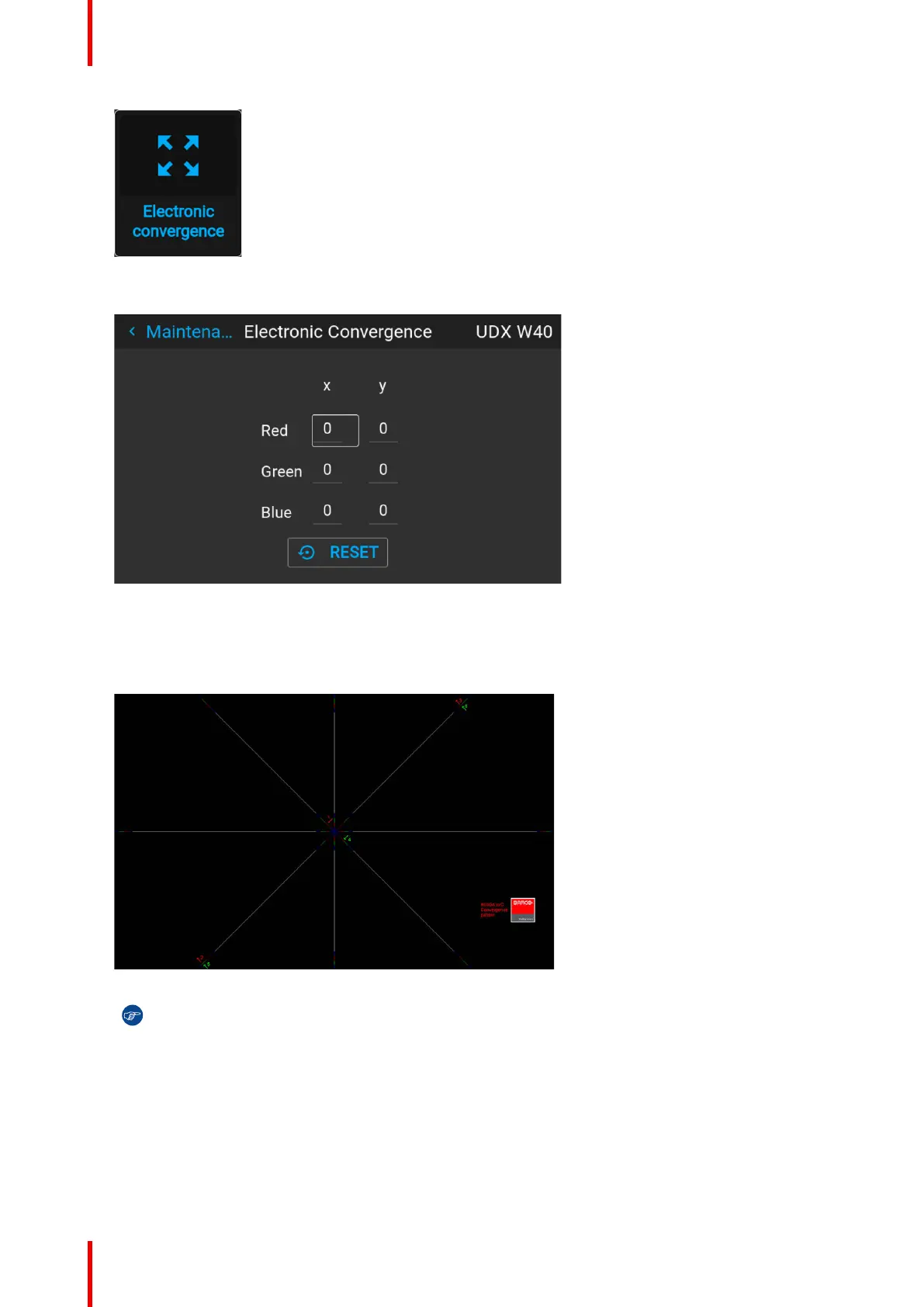

Image 10–65 Maintenance menu, electronic convergence
The Electronic Convergence menu is displayed.
Image 10–66 Example of the electronic convergence menu
2. Select the desired X or Y value for one of the three colors and confirm.
3. Use the arrow keys to raise or lower the value and confirm.
4. Confirm all changes by pressing Enter.
Image 10–67
Tip: Press Reset to return all values to the factory settings.
5. Repeat all steps until the desired alignment is achieved.
GUI – System Settings
