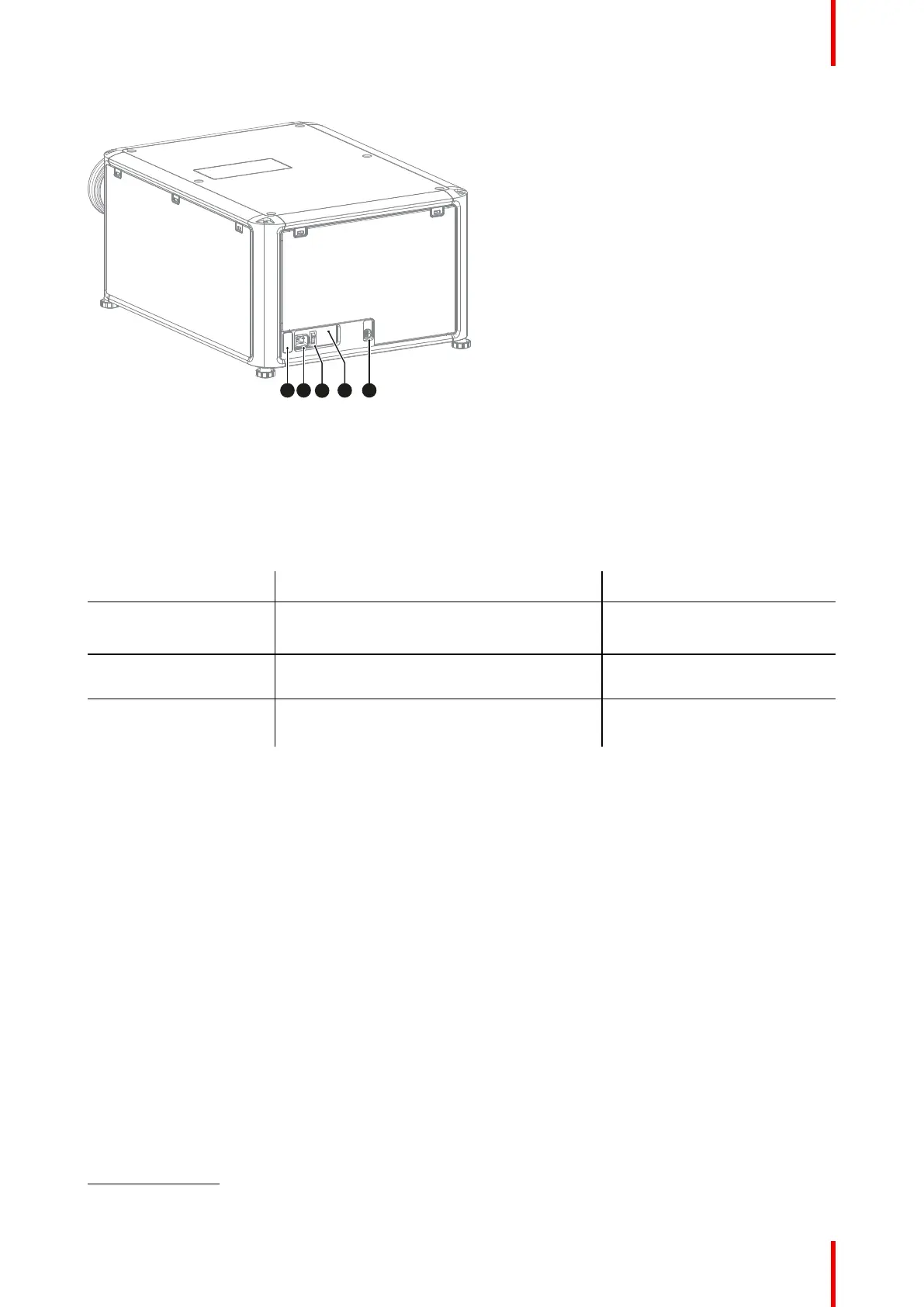

Image 2–3
9 IR receiver projector rear side
10 Mains power input socket (for C19 plug)
11 Power ON/OFF switch
12 Overvoltage status light
13 USB port (to control motorized rigging frame)
For detailed info about the Input & Communication module see chapter “Input & Communication”, page 37.
Environment conditions
Table below summarizes the physical environment in which the projector safely operates or can be stored.
Environment
Operating Non-Operating
Ambient Temperature
(depends on altitude)
0-1000 meter: 0°C (32°F) to 40°C (104°F)
1000-3000 meter: 0°C (32°F) to 30°C (86°F)
-15°C (5°F) to 60°C (140°F)
Humidity 0% RH to 80% RH Non-condensed 0% RH to 90% RH Non-
Condensed
Altitude -60 m (-197 Ft) to 3000 m (9843 Ft)
1
-60 m (-197 Ft) to 10000 m
(32810 Ft)
Projector airflow
The projector has three air inlets: one at the top, one at the front and one at the right side of the projector.
Each air inlet is equipped with a dust filter. For cleaning/replacement instructions see chapter “Product
maintenance”, page 169.
There is only one air outlet which is located at the rear of the projector.
Getting Started
1. For PRC (People's Republic of China) the certified altitude is specified on the product label.
To Next Page
