9. Basic replacements
C
D
D
C
E

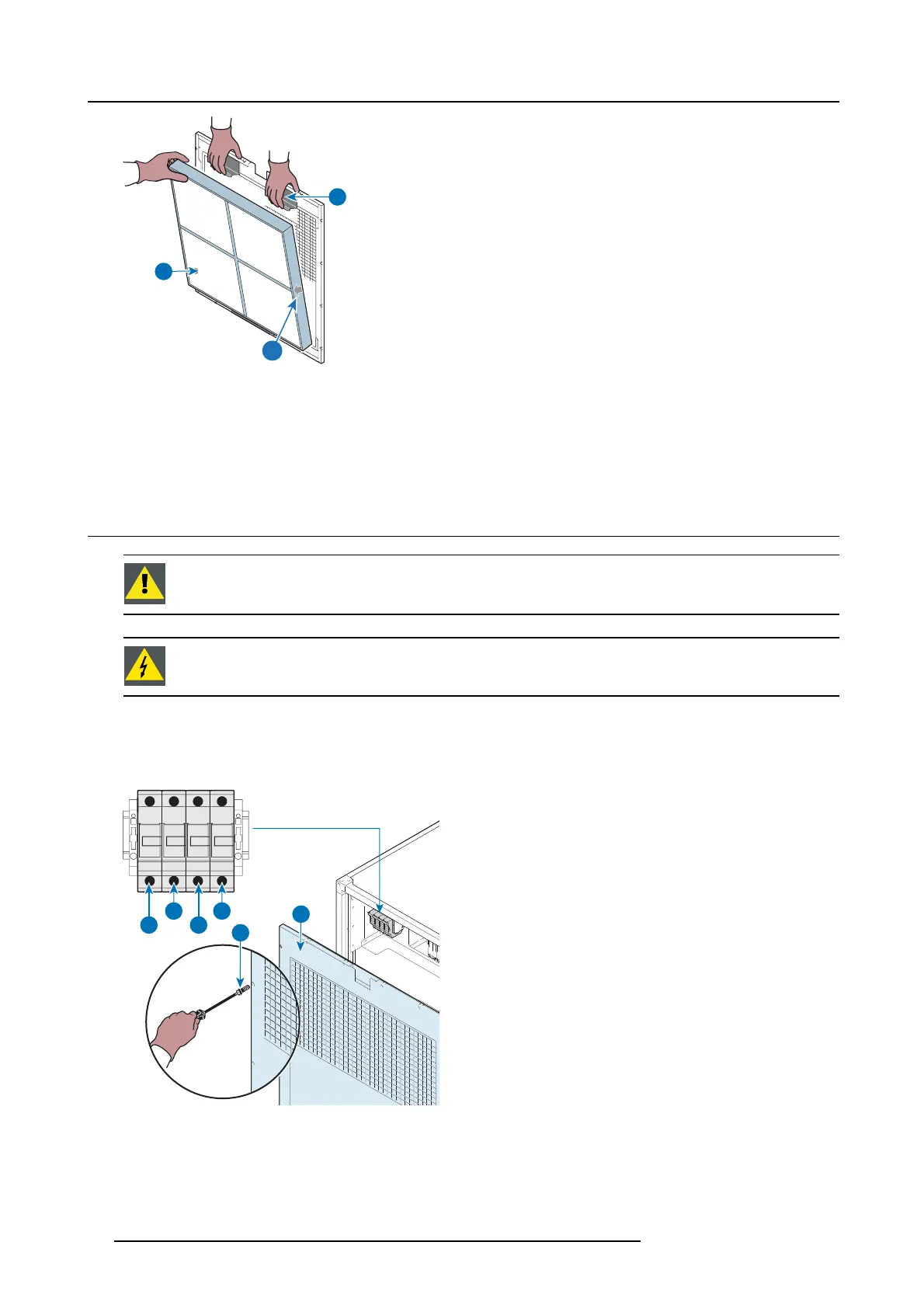

Image 9-2
4. Remov e the filter ( D).
5. Take a new filter and insert it at the back of the cover. Lift up the fasteners to mount the fi lter correctly.
Caution: Pay attention to the airflow direction of the filter (E)
6. Mount the cover and fixthescrews.
9.2 Replacing the fuse
CAUTION: Before replacing the fuse, remove the cause of the problem.
WARNING: Replace the fuse only with a fuse with the sam e characteristics.
How to replace
1. Disconnect the ULC- 30A from the power supply source.
2. Remov e the front cover (B) by removing all the screws (A).
B
A
F1
F2 F4
F3
Image 9-3
3. Replace the interrupted fuse.
4. Put the fixed c over back in place (
B).
5. Driveinallthescrews(A).
