4. Getting started
The area must be adequately ventilated and illuminated, in accorda nce with the relevant workplace health and s afety regulations.
Make sure to leave enou gh space around the installation area so that interventions can b e carried out unde r safe conditions.

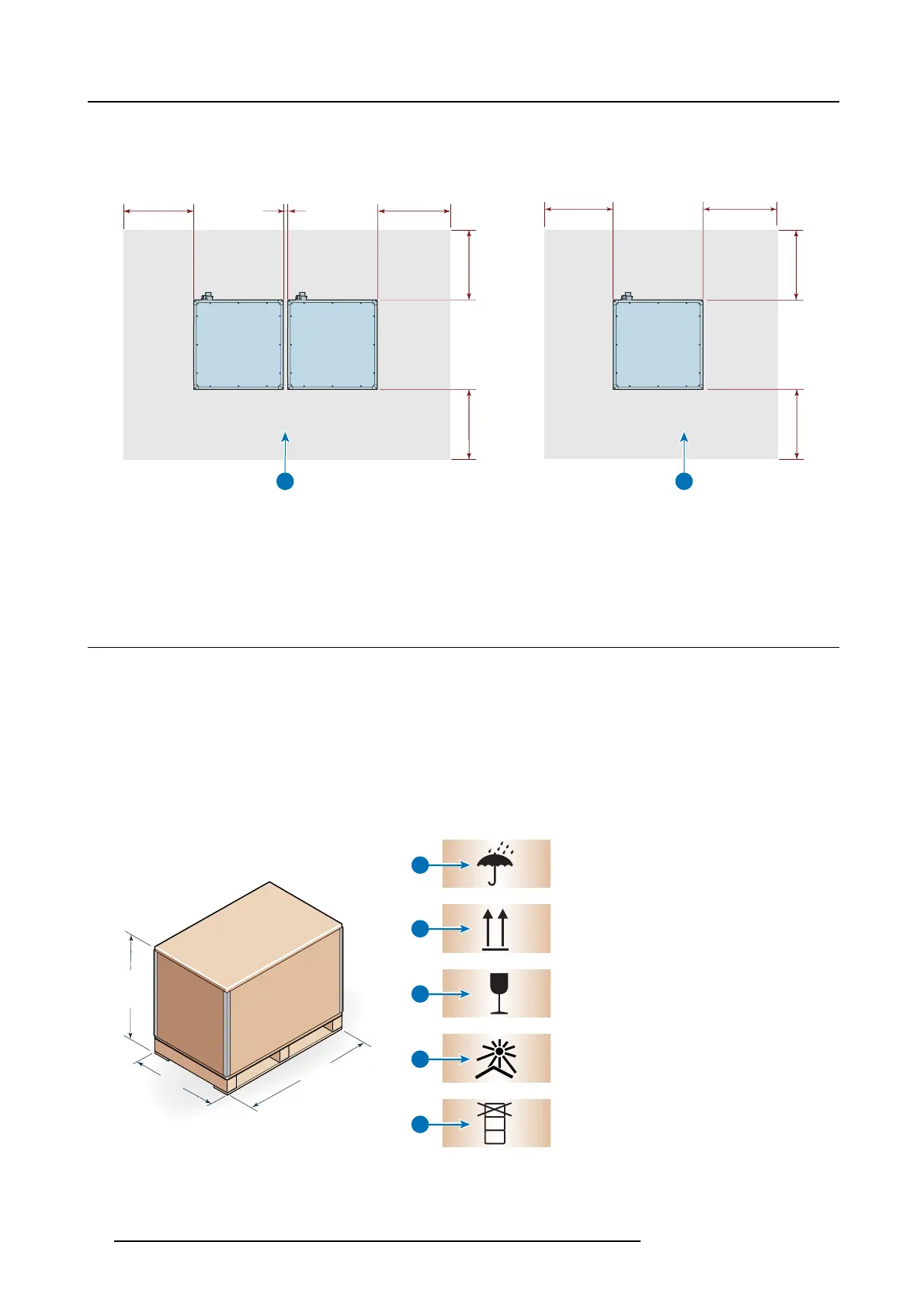

The figure shows the minimum perimeter space for each foreseen configuration.
1000
50
1000
1000 1000
1000 1000
1000
1000
A B
Image 4-1
A Minimum pe rimeter space w ith un its placed side by side.
B Minimum perimeter space for units placed one on top of the other or for s ingle units.
4.3 Unpacking
Packing description
Upon de livery, the ch iller is pac ked into a wooden box ins ide a cardboard box. The w ooden box is placed upon a wooden p allet
and secured w ith banding and fastening clips. Furthermore, to provide protection during transportation, the chiller is surrounded by
foam.
Once the chiller has ar rived at the installation site, it needs to be removed from its carton box and pallet in a safe manner without
damaging the projector.
Components such as the DMD module, flexible hoses, etc., are packed inside apposite cardboard box es.
The following figure illustrates the most com
mon package type, the maximum dime nsions, wa rning symbols and information affixed
to the pac kages.
1
800
1200
1000
E
D
C
B
A
Image 4-2
14 R5905866 ULC-30A 31/01/2018
