Barco ULC-30A - Assembly of the Secondary Cooling Unit

5. Physical installation

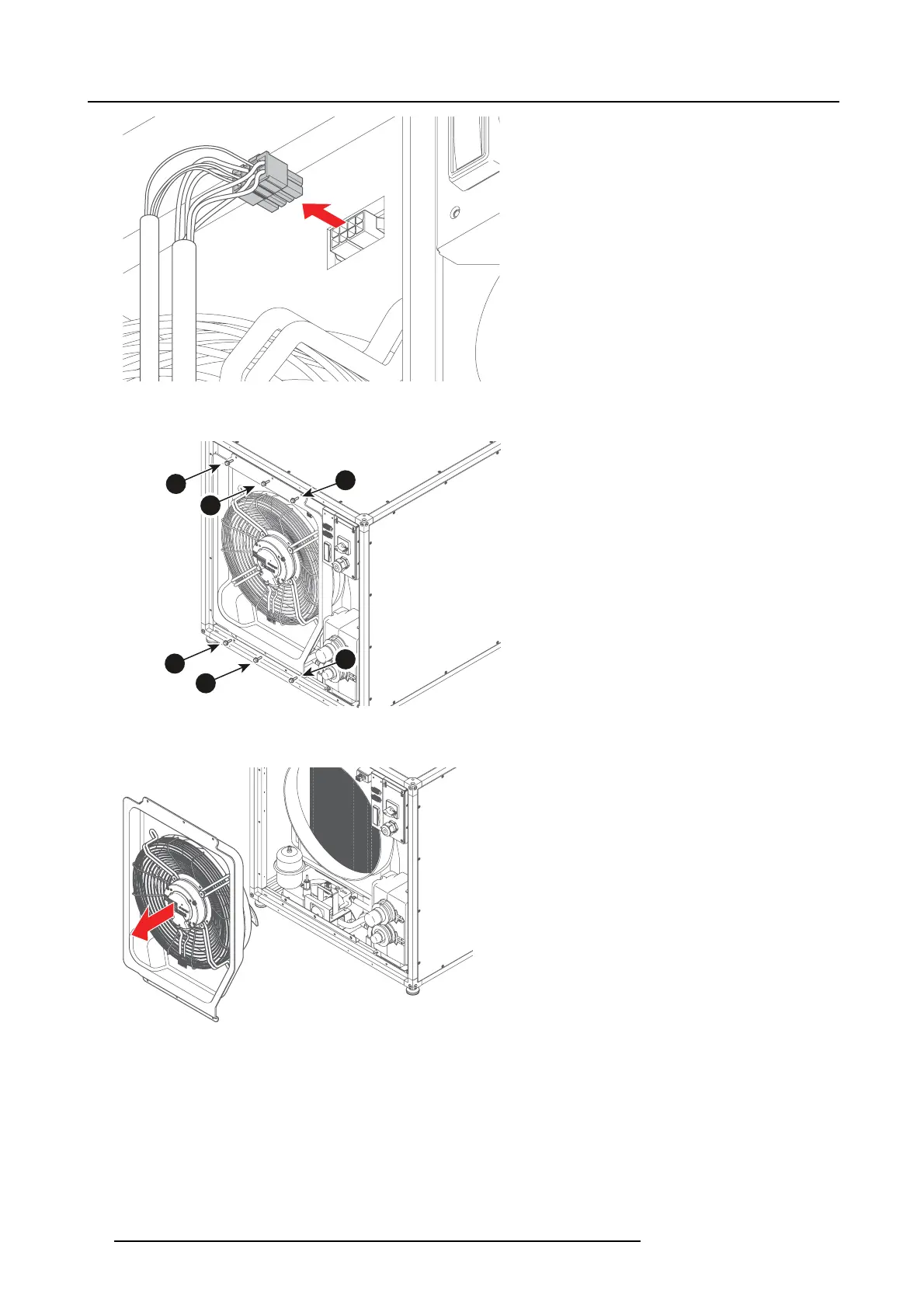

Image 5-5
Unplugging the cable connector
2. Remov e the 6 screws (reference 1 image 5-6) using the nut spanner 8 m m .
1
1
1
1
1
1
Image 5-6
Removing the 6 screws
3. Remov e the fan unit.
Image 5-7
Removing the fan unit
5.2.5 Assembly of the s econda
ry cooling unit
Necessary tools
• Allenwrench4mm
• Cutting pliers
