Operation of the gauging unit
34
Instruction Manual PETRO 3003 VOLUTANK Gauging unit BA 140918
The MID correction factor is also entered.
Hereby the measured value of the MID can be adjusted in percent.
The value "1.0" corresponds to 100 %.
CAUTION!
If the hose connecting the vehicle and the “IN” is replaced, it is always
necessary to recalculate the volume and change it in the configuration.
The "Fully automated" mode does not require any intervention on the part
of the operator during the gauging process (as long as the connected
OUT chambers can hold the content of the chamber which is to be emp-
tied) (cf. section 5.3.5.5).
„Stop for ventilation of piping“ pauses the gauging process just before the
calculation of the pipe volume so that possibly existing air can be re-
moved manually.
The IP addresses are deactivated for changing.
Example of dark colour scheme:
Changes are applied immediately.
5.3.2 “System 3003” tab

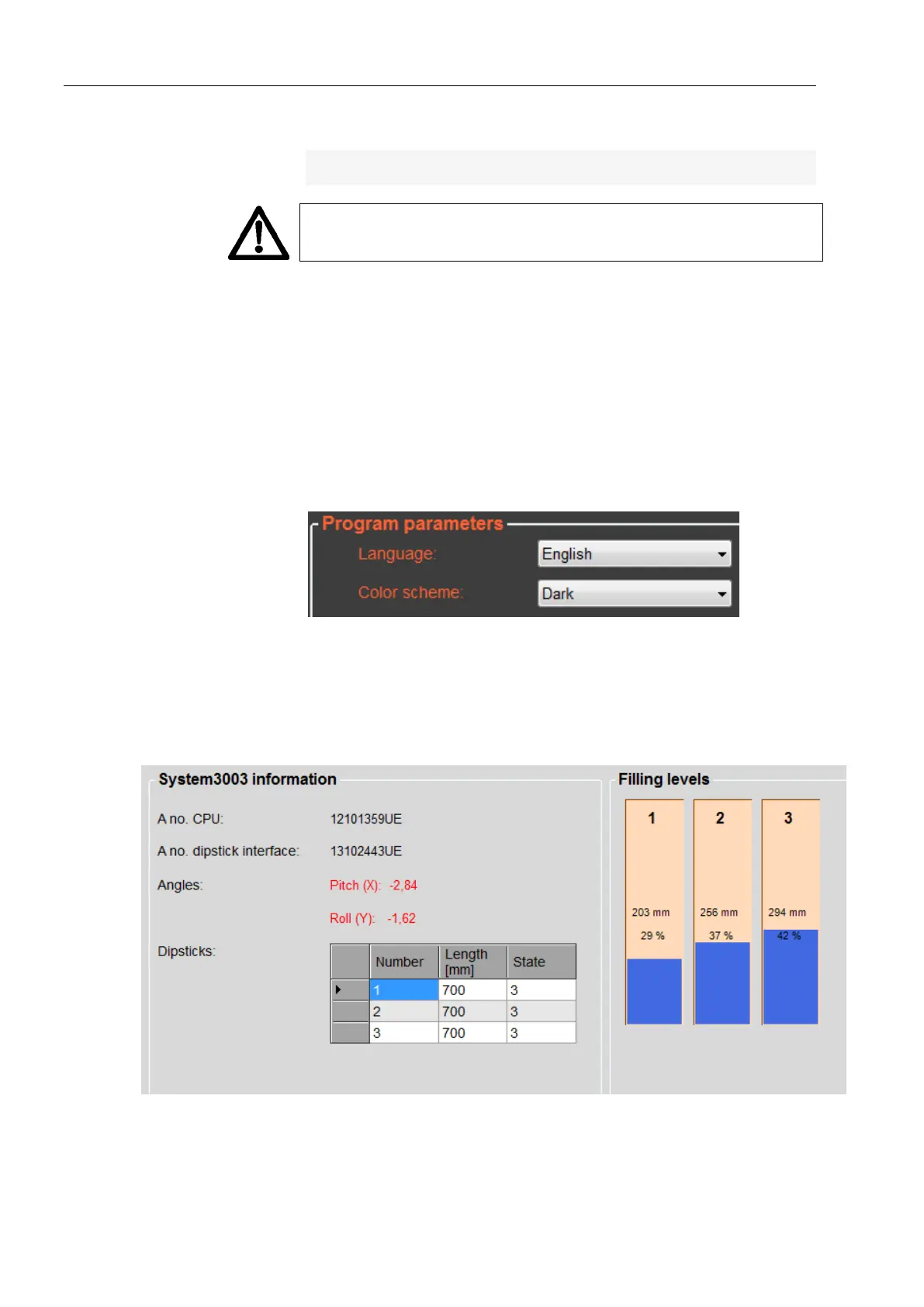

The first program screen gives an overview of the connected Sys-
tem3003:
There is a tolerance of ±0.1 for the angle. If the deviation is too great, it
will be shown in red, otherwise it will be in green.
