Operation of the gauging unit
38
Instruction Manual PETRO 3003 VOLUTANK Gauging unit BA 140918
5.3.5 “Gauge” tab
The actual gauging process takes place in this view.

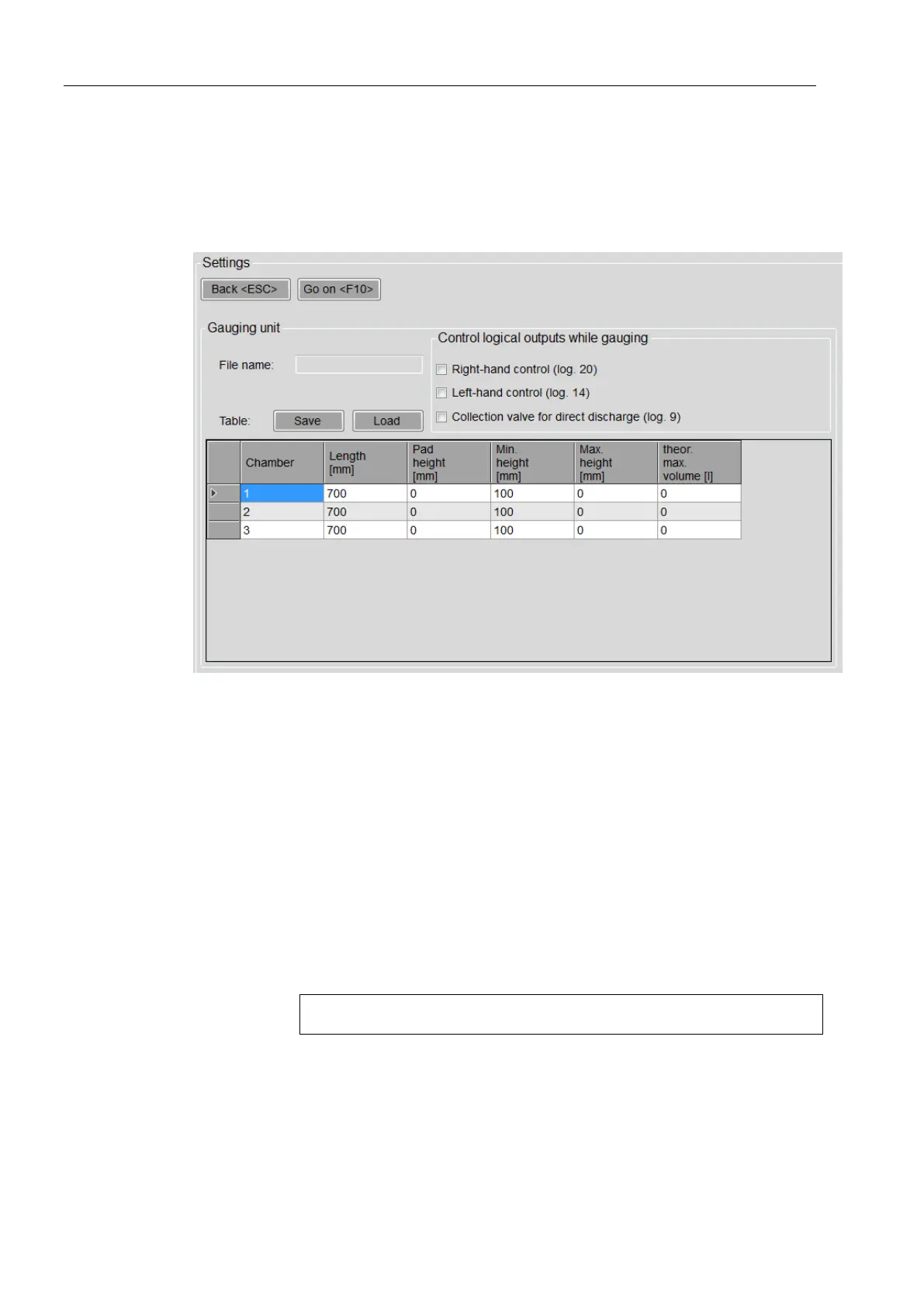

5.3.5.1 “Settings”
The preparations for the gauging process are made here.
The names of the gauging files (Geometrie, Rohrvolumen- and
Stützpunktdatei - geometry, pipe volume and support point file) must be
entered.
If the control of logical outputs while gauging (right-/left-hand control, col-
lection valve) needs to be actuated, this must be indicated here.
The minimum height of each dipstick must be entered. The maximum
height and the theoretically possible maximum volume can be entered
optionally. These entries are used to control the automatic changeover to
the second output (OUT2) and to control the pump cut-out.
Table:
The entries can be stored by pressing "Save" so that they can be used
again for identical vehicles. They can be imported by pressing "Load".
