9424200996 25-3
BE1-11m Virtual Control Switches (43)
A Block Tag alarm indicates when a block tag is in place. Refer to the Alarms chapter for information on
how to program alarms.
Logic Connections
Virtual control switch element logic connections are made on the BESTlogicPlus screen in
BESTCOMSPlus. The virtual control switch element logic block is illustrated in Figure 25-2. Logic inputs
and outputs are summarized in Table 25-1.

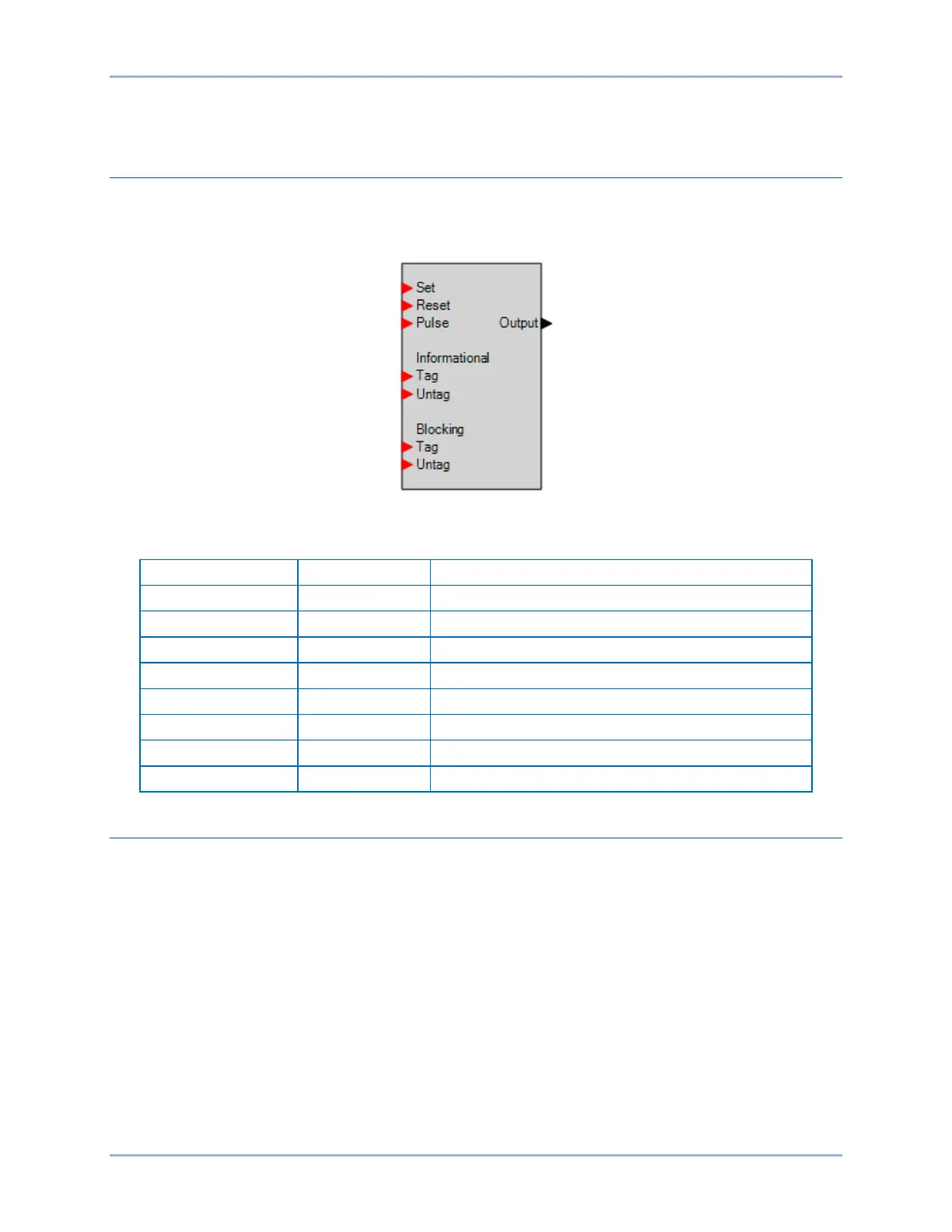

Figure 25-2. Virtual Control Switch Element Logic Block
Table 25-1. Logic Inputs and Outputs
Name
Logic Function
Purpose
Set
Input
Sets the state of the output to true
Reset
Input
Sets the state of the output to false
Pulse
Input
Momentarily changes state of the output
Informational Tag
Input
Sets an informational tag on the 43 element
Informational Untag
Input
Removes the informational tag from the 43 element
Blocking Tag
Input
Sets a blocking tag on the 43 element
Blocking Untag
Input
Removes the blocking tag from the 43 element
Output
Output
True when the 43 element is set
Operational Settings
Virtual control switch element operational settings are configured on the Virtual Control Switches (43)
settings screen (Figure 25-3) in BESTCOMSPlus.
