46-2 9424200996
Typical Connections BE1-11m

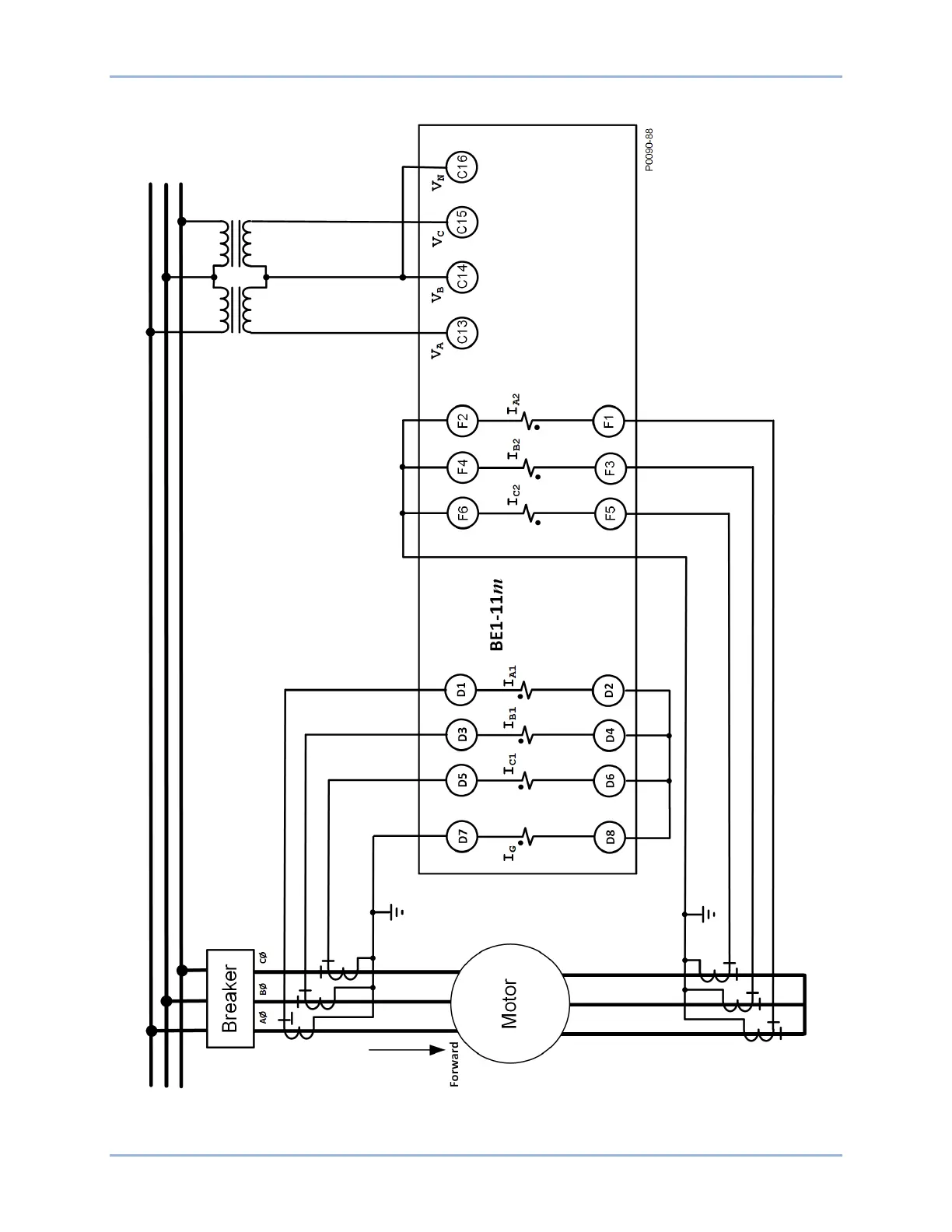

Typical external ac connections for three-phase are shown in Figure 46-2.
Figure 46-2. Typical AC Connections for Three-Phase Current
