9424200996 46-3
BE1-11m Typical Connections

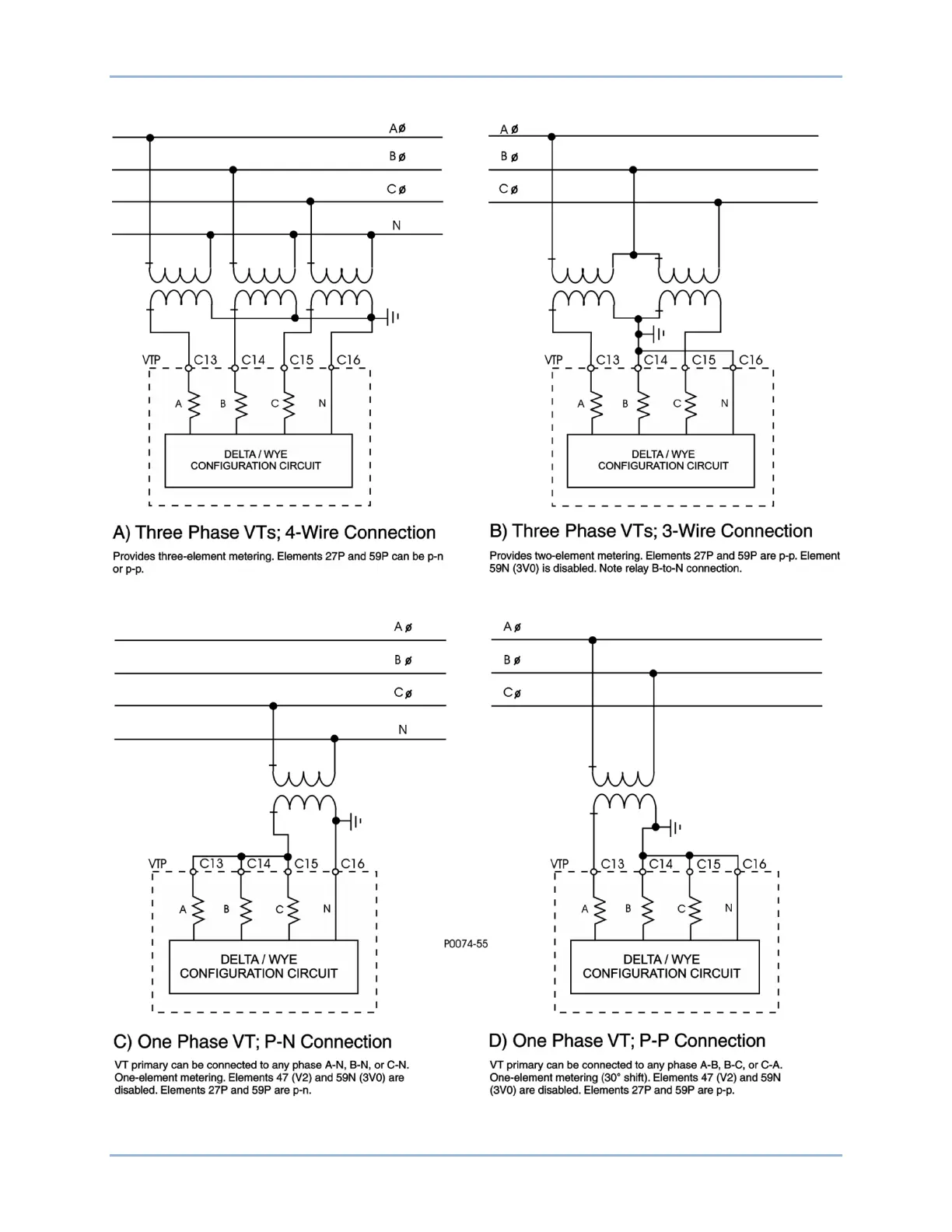

Three-phase voltage sensing, alternate VT inputs are shown in Figure 46-3.
Figure 46-3. Three-Phase Voltage Sensing, Alternate VT Inputs
