83-2 9424200996
RTD Module BE1-11m
Mounting
RTD modules are contained in a potted plastic case and may be mounted in any convenient position. The
construction of an RTD module is durable enough to mount directly on a motor using UNC ¼-20 or
equivalent screws. Hardware selection should be based on any expected shipping/transportation and
operating conditions. The torque applied to the mounting hardware should not exceed 65 in-lb (7.34 N•m).
See Figure 83-1 for RTD module overall dimensions. All dimensions are shown in inches with millimeters
in parenthesis.

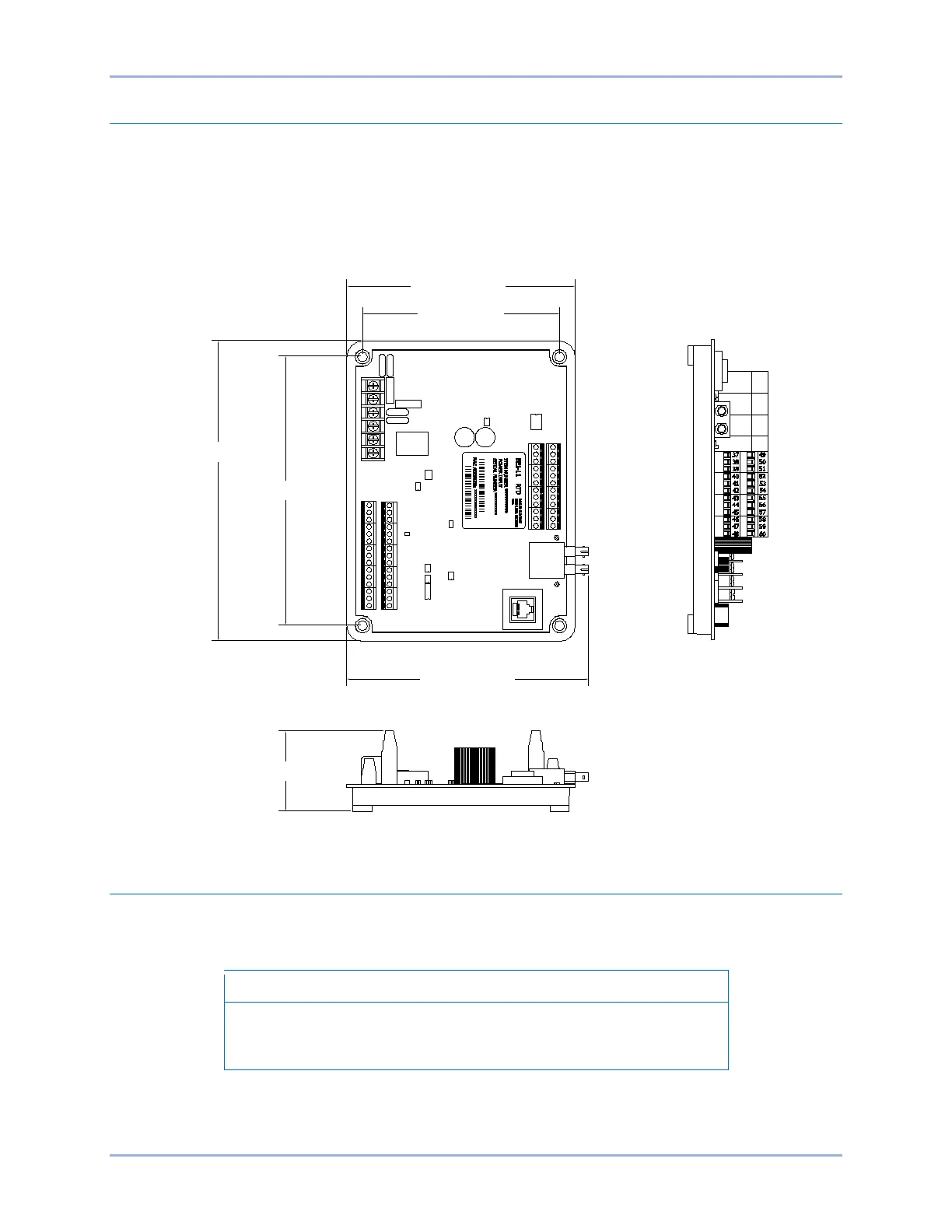

Figure 83-1. RTD Module Overall Dimensions
Connections
RTD module connections are dependent on the application. Incorrect wiring may result in damage to the
module.
Be sure that the RTD module is hard-wired to earth ground with no
smaller than 12 AWG (3.31 mm
2
) copper wire attached to the chassis
ground terminal on the module.
Terminations
The terminal interface consists of permanently mounted connectors with screw-down compression
terminals.
8.38 [212.75]
6.75 [171.35]
6.38 [161.95]
2.24 [56.84]
P0097-12
5.50 [139.7]
7.50 [190.5]
