9424200996 83-5
BE1-11m RTD Module

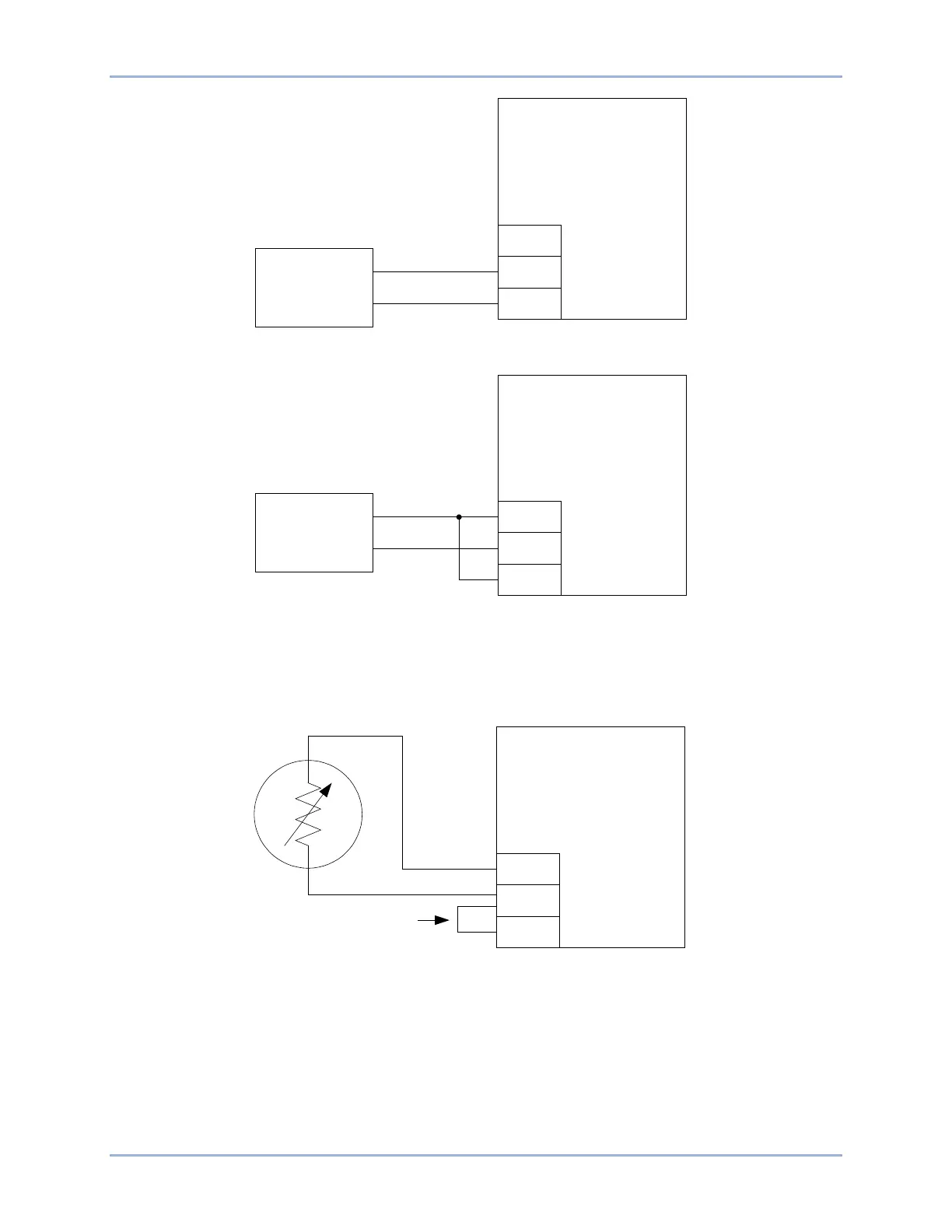

Figure 83-3. Analog Inputs - Voltage Input Connections
Figure 83-4. Analog Inputs - Current Input Connections
External RTD Input Connections
External 2-wire RTD input connections are shown in Figure 83-5. Figure 83-6 shows external 3-wire RTD
input connections.
Figure 83-5. External Two-Wire RTD Input Connections
AIN I+
AIN
AIN V+
RTD Module
P0061-38
0 10 Vdc
Voltage
Transducer
AIN I+
AIN
AIN V+
RTD Module
P0
061-39
4 20 mA
Current
Transducer
RTD1+
RTD1–
RTD1C
RTD Module
Jumper
P
00
61-40
BLACK
RED
