Baudoulin 6 M26.2 - Machine Room Cabinet Options

- 4/8 -
00343 - Edition 01 - September 11
Design
B600 - Electrical system
Non-contractual illustrations

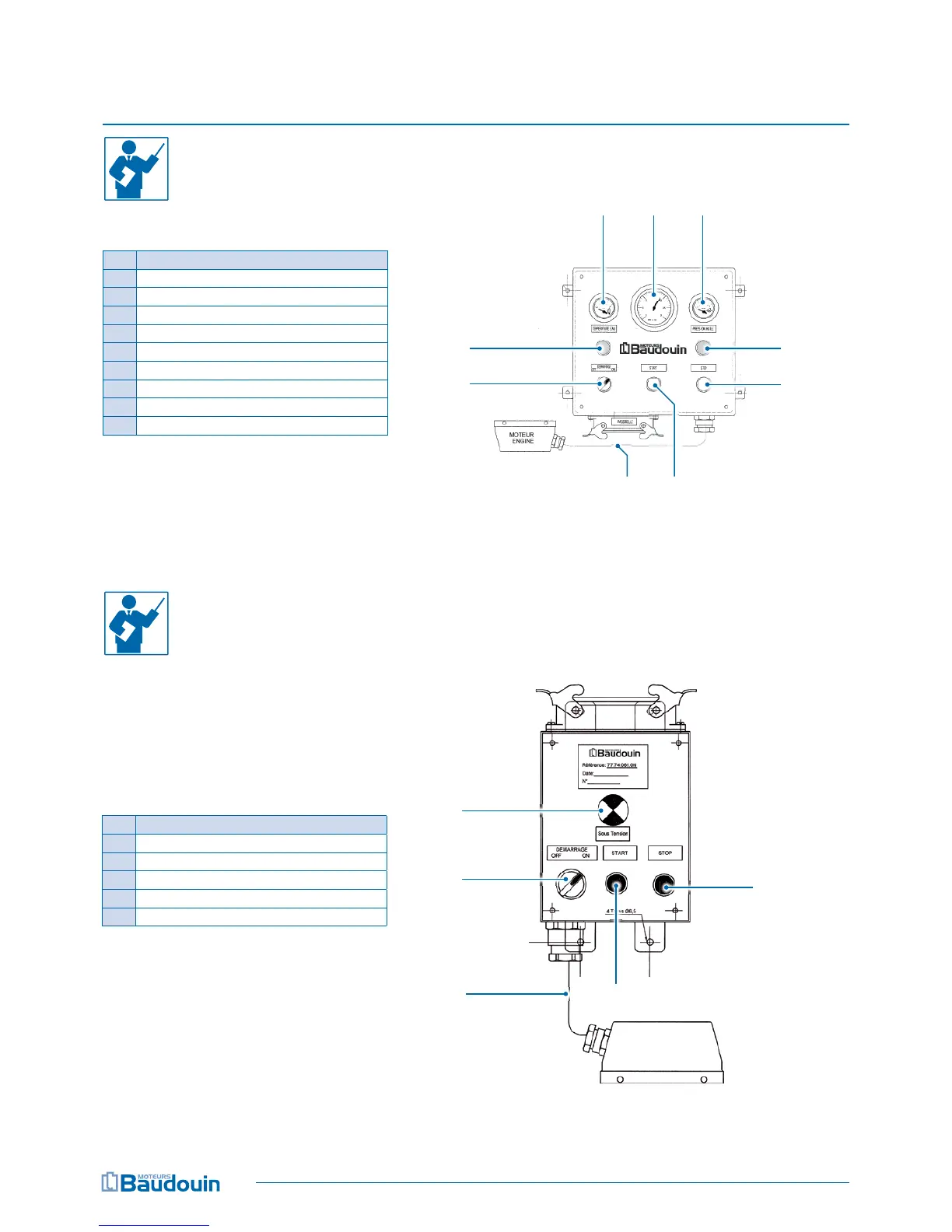

Machine room mini-cabinet - option
Il is possible to install a mini-cabinet in the machine room as
an option (ref. 77 74 061 0N).
DT 11 G06
DT 11 G06
Rep Description
1 Traction presence light
2 Engine stop button
3 Start-up button
4 Connecting lead
5 Start-up button
1
5
4 3
2
Rep Description
1 Tachometer
2 Oil pressure indicator
3 Pressure alarm light
4 Engine stop button
5 Start-up button
6 Connecting lead
7 Start-up button
8 Temperature indicator light
9 Coolant temperature indicator
9 1 2
3
4
56
8
7
Machine room cabinet - option
It is possible to install a cabinet in the machine room as an
option (ref. 77 72 725 1S).
plug on motor side
