Design
B600 - Electrical system
Non-contractual illustrations

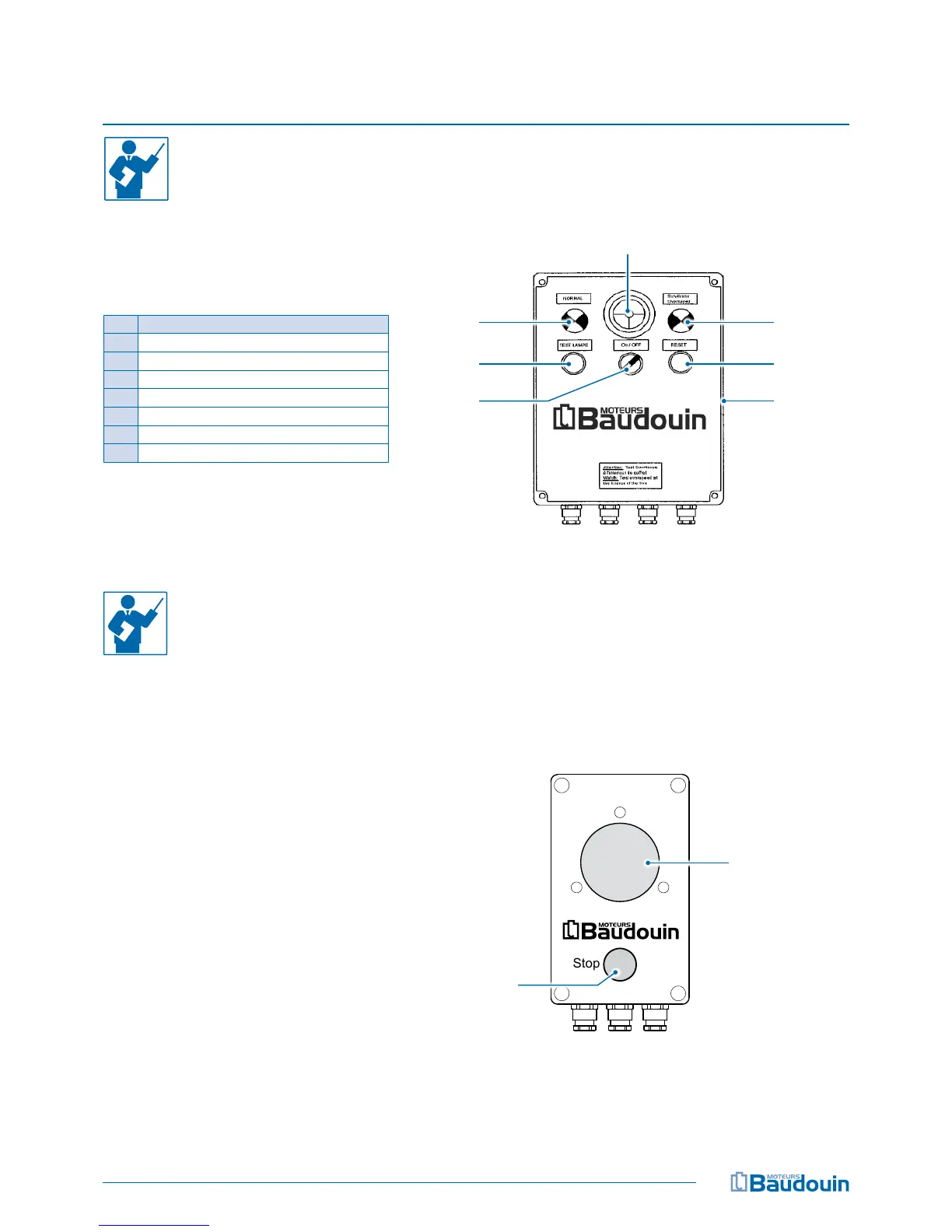

Overspeed cabinet - option
If maximum rotation speed authorised by the controller is
exceeded, this device stops the engine.
DT 11.G02
Rep Description
1 "Normal operation" light
2 Buzzer
3 "Overspeed" light
4 Black “reset” button
5 SAREL cabinet
6 "On/Off” turn button
7 Black “lamp test” button
31
2
47
56
Audible alarm cabinet - option
Exterior alarm annunciator, with sound level of 110dB.
Connects to the bridge instrument panel and/or the
overspeed cabinet.
DT 11.G01
Stop
Push button
Buzzer
