Baumer TXG - Protective Caps; Maximal Objective Length Inside Protective Cap

11

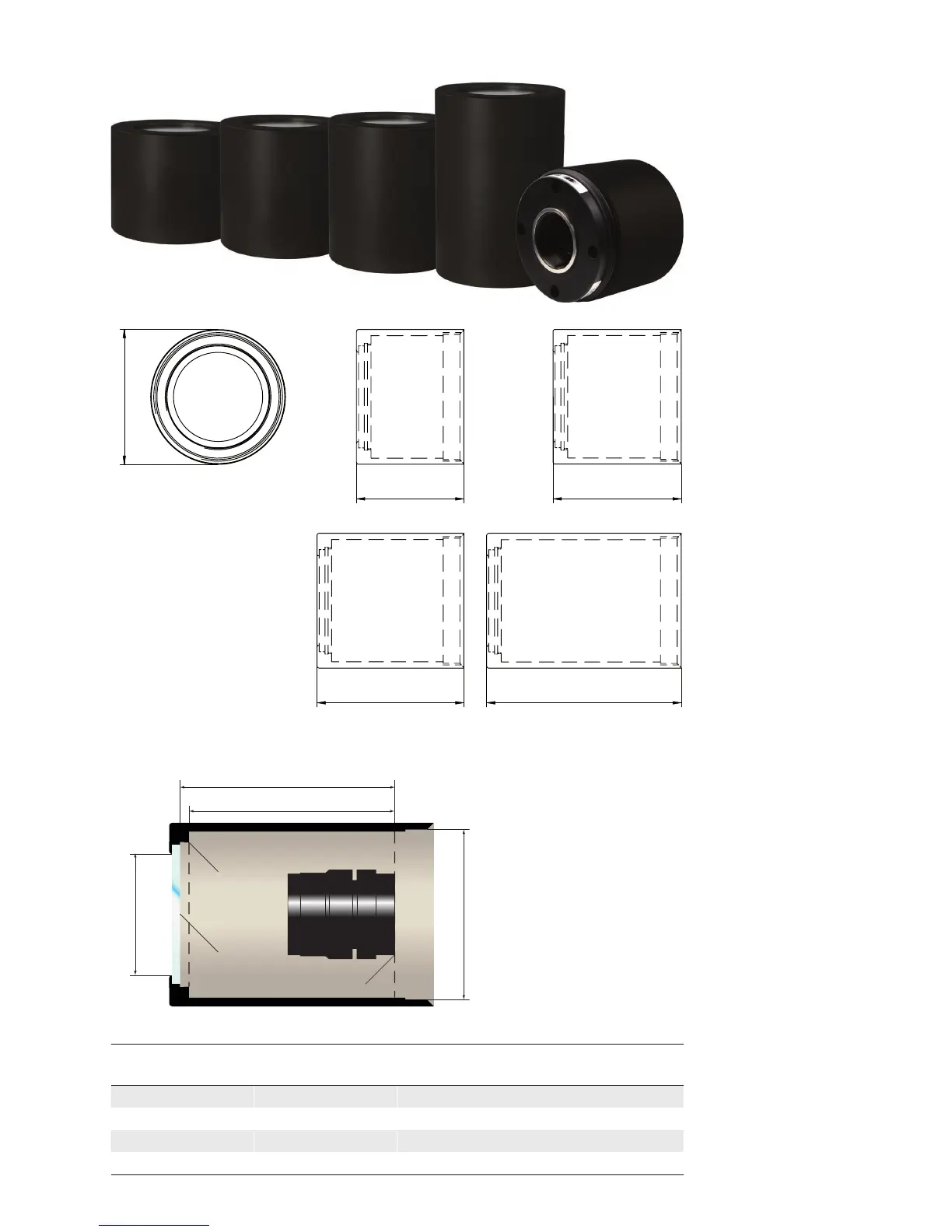

1.4.1 ProtectiveCaps
ProtectiveCapDimensions
51,8 61,8
70,8 93,8
Ø
65
MaximalObjectiveLengthinsideProtectiveCap1.4.2
Ø 43
Distance X
1
Ø 59
Distance X
2
A
B
C
A - Cylinder bottom
B - Cover glass
C - C-mount
TubeLength
[mm]
Item
Number
DistanceX
1
[mm]
DistanceX
2
[mm]
51,8 11008777 32,6 30
61,8 11008776 42,6 40
70,8 11008775 51,6 49
93,8 11008774 74,6 72
◄Figure9
Available protective
caps for Baumer TXG-
I7 cameras.
◄Figure10
Dimensions of available
protective caps for IP67
housing.
◄Figure11
Maximal objective legth
inside protective caps
for IP67 housing.
