Baumer TXG - 2.3 Process- and Data Interfaces; 2.3.1 Interfaces of Camera Types; 2.3.2 Pin-Assignment

21
2.3 Process-andDataInterfaces
InterfacesofCameraTypes2.3.1
Camera
Type
8P8C
modjack
8P8C
modjack
LED
M8
3pins
M8
4pins
M8
8pins
M12
8pins
Standard ■ □ ■ ■ □ □
PoE □ ■ □ ■ □ □
I7 □ □ ■ ■ □ ■
E7 □ □ ■ ■ □ ■
m3 □ □ ■ □ ■ □

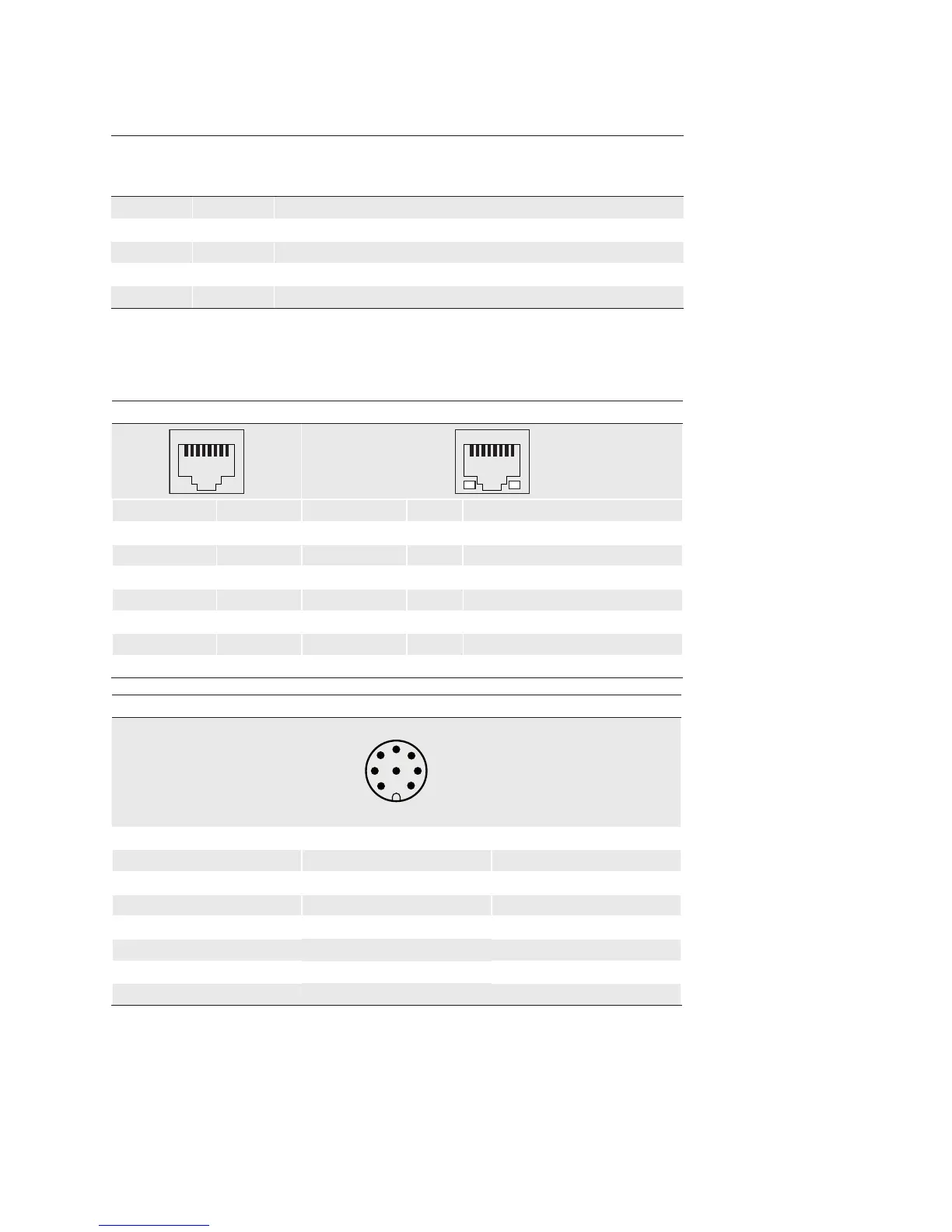

2.3.2 Pin-Assignment
2.3.2.1 GigabitEthernetInterface
8P8Cmodjack 8P8CmodjackwithLED
1 8
1 8
1 (gn/wh) MX1+ 1 (gn/wh) MX1+ (negative / positive V
port
)
2 (gn) MX1- 2 (gn) MX1- (negative / positive V
port
)
3 (og/wh) MX2+ 3 (og/wh) MX2+ (positive / negative V
port
)
4 (bu) MX3+ 4 (bu) MX3+
5 (bu/wh) MX3- 5 (bu/wh) MX3-
6 (og) MX2- 6 (og) MX2- (positive / negative V
port
)
7 (bn/wh) MX4+ 7 (bn/wh) MX4+
8 (bn) MX4- 8 (bn) MX4-
M12/8pins
8
5
7 3
1
4
2
6
1 (white) MX3-
2 (brown) MX4+
3 (green) MX4-
4 (yellow) MX1-
5 (grey) MX2+
6 (pink) MX1+
7 (blue) MX3+
8 (red) MX2-
