Baumer TXG - 4.6 Process Interface; 4.6.1 Digital IOs; 4.6.1.1 User Definable Inputs

46
4.6 ProcessInterface
4.6.1 DigitalIOs
Baumer standard cameras are equipped each with on digital input and one digital out-
put.
Additional digital in- and outputs (IOs) are offered by the following cameras of the Baumer
TXG series:
MonochromeCameras ColorCameras
TXG03m3 TXG03cm3
TXG13m3
TXG14m3
TXG20m3 TXG20cm3
TXG50m3
UserDenableInputs4.6.1.1
The wiring of these input connectors is left to the user.
Sole exception is the compliance with predetermined high and low levels (0 .. 4,5V low,
11 .. 30V high).
The dened signals will have no direct effect, but can be analyzed and processed on the
software side and used for controlling the camera.
The employment of a so called "IO matrix" offers the possibility of selecting the signal and
the state to be processed.
On the software side the input signals are named "Trigger", "Input 1" and "Input 2".
Due to the fact, that the TXG models standard and m3 have a different number of in- and
outputs, there are two kinds of IO matrixes for the input side the output side:
(Input) Line 0
state high
state low
Trigge
r
IO Matrix
state selection
(software side)

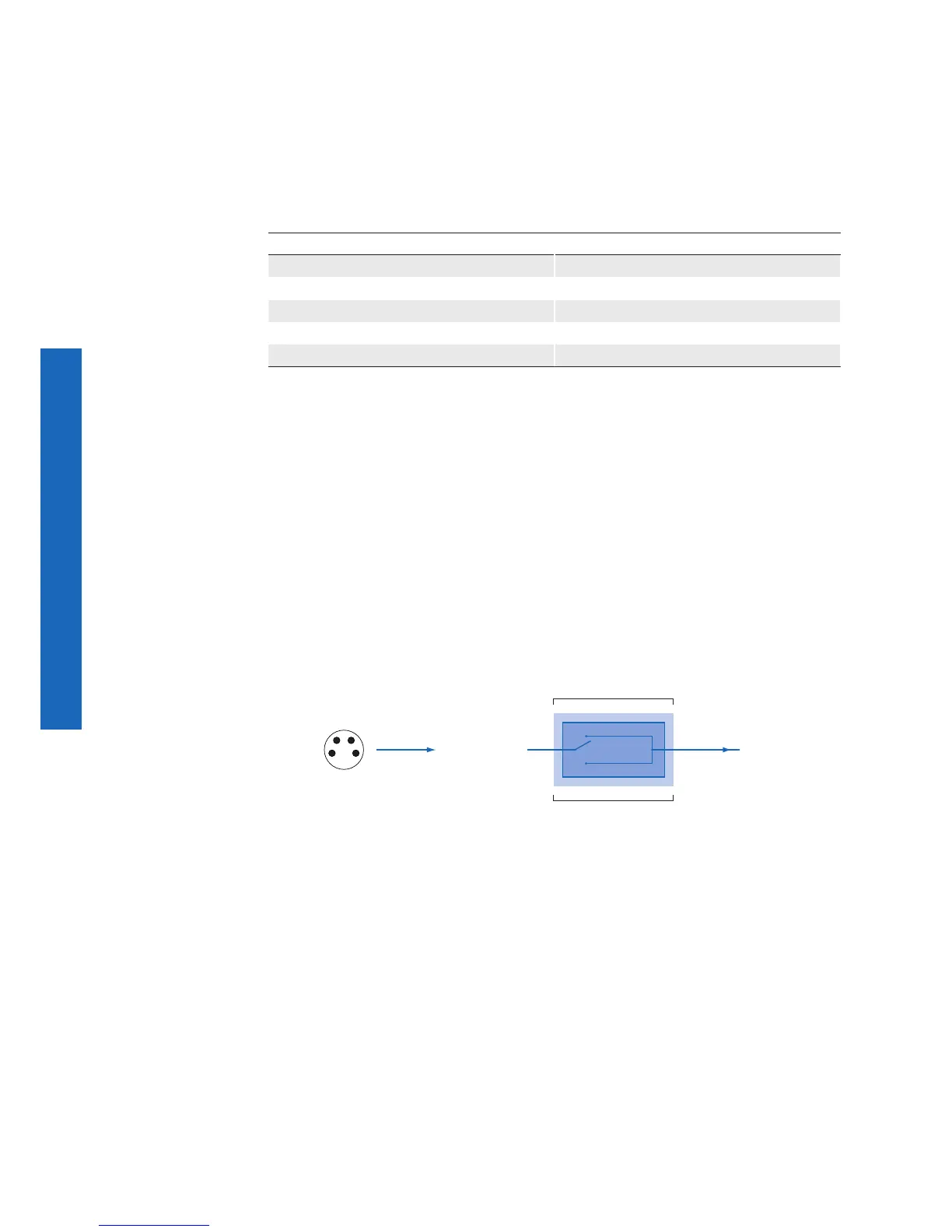

Figure48►
IO matrix of the
Baumer TXG standard
cameras on input side.
