4.8 UserSets
Four user sets (0-3) are available for the Baumer cameras of the TXG series. User set 0
is the default set and contains the factory settings. User sets 1 to 3 are user-specic and
can contain the following information:
Parameter Parameter
Binning Image Format
Brightness Correction Look-Up-Table
Defect Pixel Correction Message Channel
Defectpixellist Offset (Black Level)
Digital IOs Partial Scan
Fast / HQ Mode Pixel Format
Flash Settings Sequencer
Gain Trigger Settings
Exposure Time
These user sets are stored within the camera and and cannot be saved outside the de-
vice.
By employing a so-called "user set default selector", one of the four possible user sets
can be selected as default, which means, the camera starts up with these adjusted pa-
rameters.
4.9 FactorySettings
The factory settings are stored in "user set 0" which is the default user set. This is the only
user set, that is not editable.
4.10 Timestamp
The timestamp is part of the GigE Vision
®
standard. It is 64 bits long and denoted in
Ticks
*)
. Any image or event includes its corresponding timestamp.
At power on or reset, the timestamp starts running from zero.
1122354
1122454
1122554
1122754
1123154
1123354
1122654
1123054
1123254
*) Tick is the internal time unit of the camera, it lasts 32 nsec.

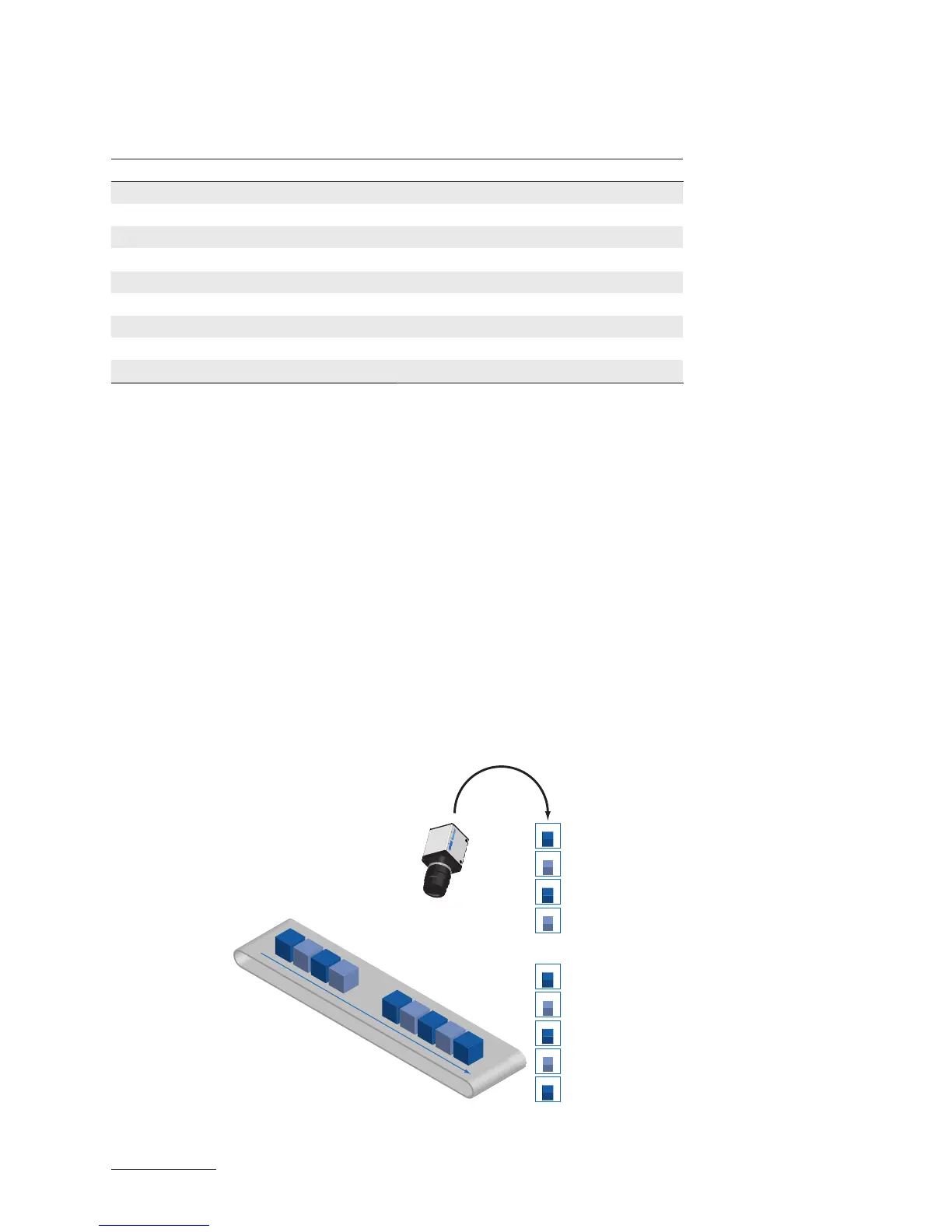

◄Figure63
Timestamps of recorded
images.
