InterruptionBehaviour4.6.7.2

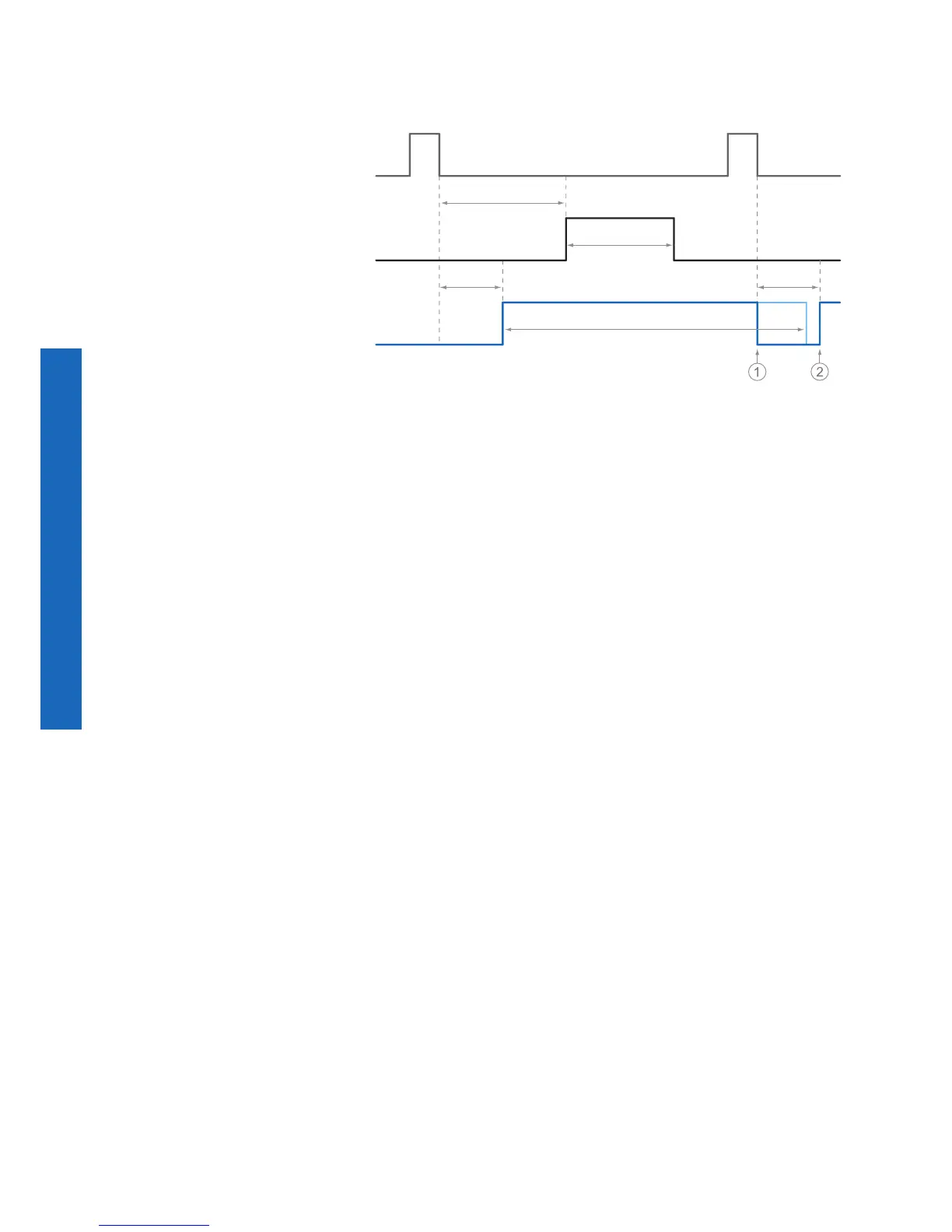

Upon unintended faulty conguration, Baumer TXG cameras are able to interrupt running
timers as displayed within the following gure.
Exposure
Timer
t
exposure
t
triggerdelay
Trigger
t
TimerDuration
t
TimerDelay
t
TimerDelay
In case of incoming valid trigger signal during a running timer, the timer will be aborted (1)
and restarted (2) after the predened TimerDelay.
4.6.8 FrameCounter
The frame counter is part of the Baumer image infoheader and supplied with every image,
if the chunkmode is activated. It is generated by hardware and can be used to verify that
every image of the camera is transmitted to the PC and received in the right order.
Figure57►
Interruption behaviour
of the timer feature.
