Baumer TXG - Standard Cameras with 3 In- and 3 Outputs

9
1.3 StandardCameraswith3In-and3Outputs
Freely congurable inputs and outputs ▪
Each with 3 inputs and outputs ▪
PLC conform signal levels ▪
CameraType
Sensor
Size
Resolution
Full
Frames
[max.fps]
Monochrome/Color
TXG03m3 / TXG03cm3 1/3" 656 x 494 / 656 x 490 90
TXG04m3 1/2" 656 x 494 56
TXG06m3 / TXG06cm3 1/2" 776 x 582 / 776 x 578 64
TXG08m3 / TXG08cm3 1/3" 1032 x 776 / 1032 x 772 28
TXG13m3 / TXG13cm3 1/2" 1392 x 1040 / 1384 x 1036 20
TXG14m3 / TXG14cm3 2/3" 1392 x 1040 / 1384 x 1036 20
TXG14fm3 2/3" 1392 x 1040 30
TXG20m3 / TXG20cm3 1/1.8" 1624 x 1236 / 1624 x 1232 16
TXG50m3 / TXG50cm3 2/3" 2448 x 2050 / 2448 x 2050 15
Dimensions
26
26
36
36
4
x
M
3
36
36
26
8
x
M
3
48
2626
Photosensitive
surface of the
sensor
C Mount

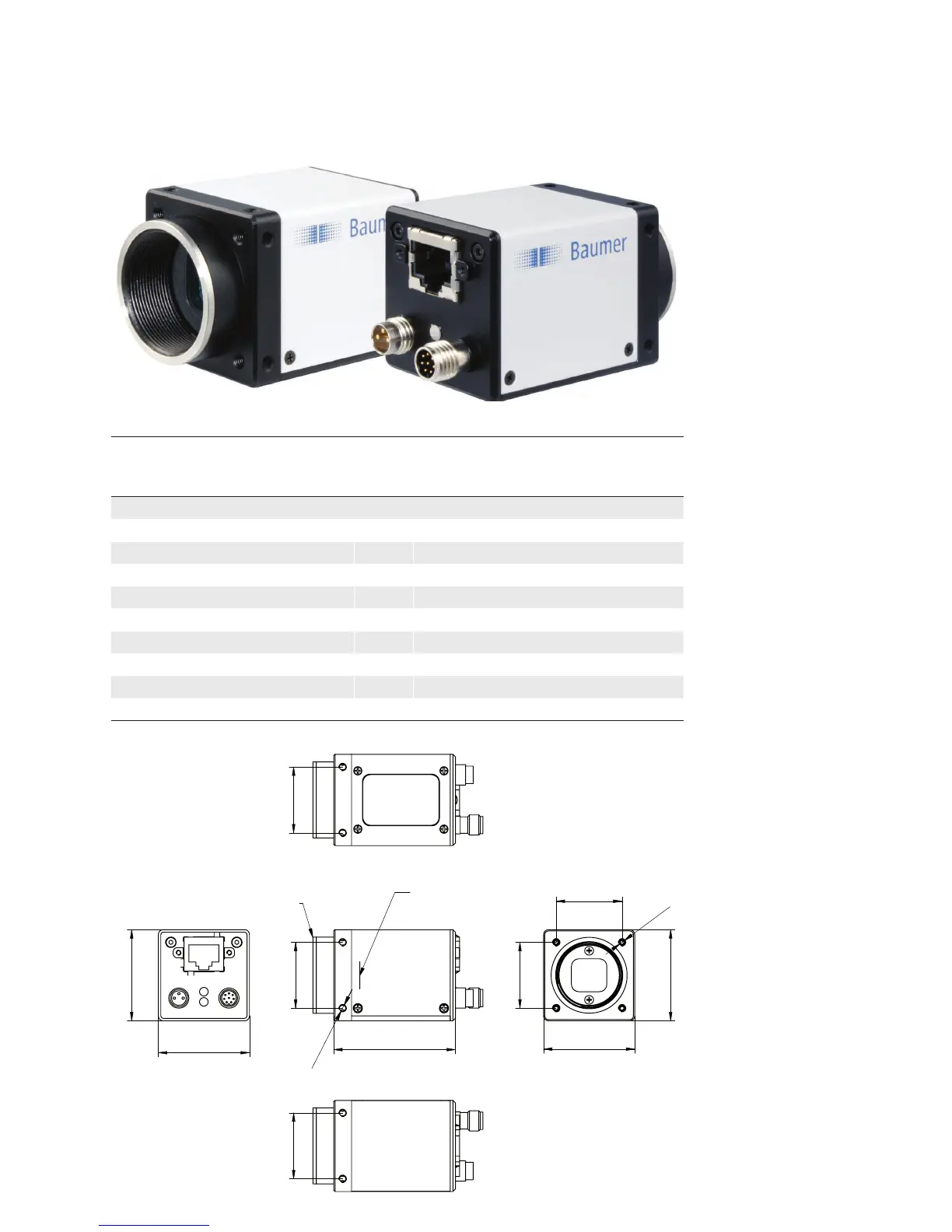

◄Figure5
Front and rear view of
a Baumer TXG cam-
era with additional IOs
(m3).
◄Figure6
Dimensions of a
Baumer TXG camera
with additional IOs
(m3).
