Baumer TXG - 2.5 Environmental Requirements; 2.5.1 Temperature and Humidity Range*)

31
2.5 EnvironmentalRequirements
2.5.1 TemperatureandHumidityRange
*)
Temperature
Storage temperature -10°C ... +70°C ( +14°F ... +158°F)
Operating temperature* +5°C ... +50°C (+41°F ... +122°F)
Housing temperature
**)***)
max. +50°C (+122°F)
* For environmental temperatures ranging from (value A) to (value B), please pay atten-
tion to the max. housing temperature. The values are listed in the table below:
CameraType ValueA ValueB
Monochrome
TXG02 +26°C (+78,8°F) +50°C (+122°F)
TXG03 +40°C (+104°F) +50°C (+122°F)
TXG04 +39°C (+102.2°F) +50°C (+122°F)
TXG06 +39°C (+102.2°F) +50°C (+122°F)
TXG08 +40°C (+104°F) +50°C (+122°F)
TXG12 +24°C (+75,2°F) +50°C (+122°F)
TXG13 +38°C (+100.4°F) +50°C (+122°F)
TXG14 +36°C (+96.8°F) +50°C (+122°F)
TXG14f +40°C (+104°F) +50°C (+122°F)
TXG20 +38°C (+100.4°F) +50°C (+122°F)
TXG50 +25°C (+77°F) +50°C (+122°F)
TXG50-I7 +37°C (+98.6°F) +50°C (+122°F)
Color
TXG02c +26°C (+78,8°F) +50°C (+122°F)
TXG03c +40°C (+104°F) +50°C (+122°F)
TXG06c +39°C (+102.2°F) +50°C (+122°F)
TXG08c +40°C (+104°F) +50°C (+122°F)
TXG12c +24°C (+75,2°F) +50°C (+122°F)
TXG13c +38°C (+100.4°F) +50°C (+122°F)
TXG14c +36°C (+96.8°F) +50°C (+122°F)
TXG20c +38°C (+100.4°F) +50°C (+122°F)
TXG50c +25°C (+77°F) +50°C (+122°F)
Humidity
Storage and Operating Humidity 10% ... 90%
Non-condensing
T
T
2.5.2 HeatTransmission
It is very important to provide adequate dissipation of heat, to ensure that the temperature
does not reach or exceed +50°C (+122°F). As there are numerous possibilities for instal-
lation, Baumer do not speciy a specic method for proper heat dissipation, but suggest
the following principles:
operate the cameras only in mounted condition ▪
mounting in combination with forced convection may provide proper heat dissipation ▪
*) Please refer to the respective data sheet.
**) Measured at temperature measurement point (T).
***) Housing temperature is limited by sensor specications.

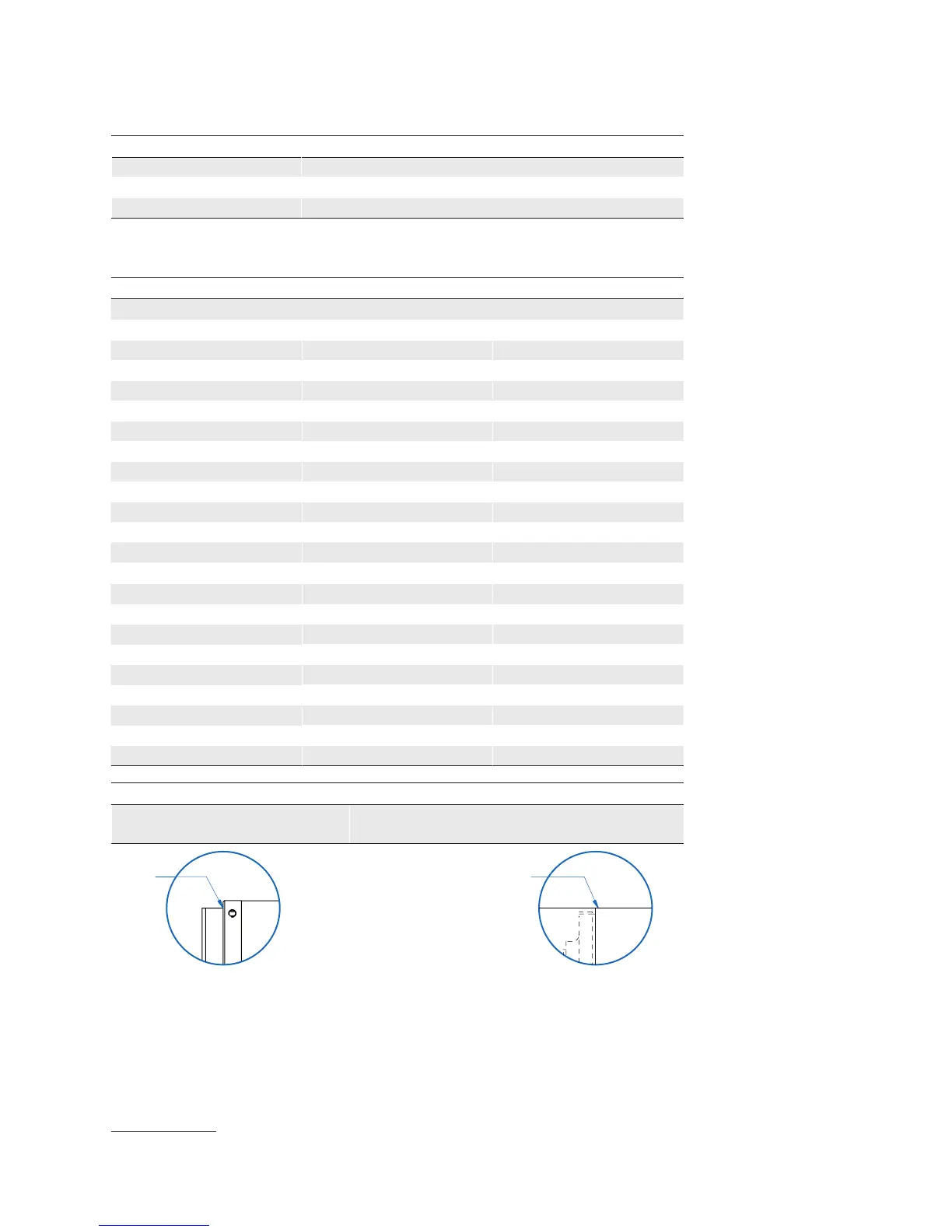

◄Figure26
Temperature measure-
ment points of Baumer
TXG cameras:
Standard camera and
Camera with IP67
housing.
