Baumer TXG - 4.1.3 Exposure Time

37
4.1.3 ExposureTime
On exposure of the sensor, the inclination of photons produces a charge separation on
the semiconductors of the pixels. This results in a voltage difference, which is used for
signal extraction.
Light
Photon
Pixel
Charge Carrie
r
The signal strength is inuenced by the incoming amount of photons. It can be increased
by increasing the exposure time (t
exposure
).
On Baumer TXG cameras, the exposure time can be set within the following ranges (step
size 1μsec):
CameraType t
exposure
min t
exposure
max
Monochrome
TXG02 4 μsec 60 sec
TXG03 4 μsec 60 sec
TXG04 4 μsec 60 sec
TXG04h 15 μsec 2 sec
TXG06 4 μsec 60 sec
TXG08 4 μsec 60 sec
TXG12 4 μsec 60 sec
TXG13 4 μsec 60 sec
TXG14 4 μsec 60 sec
TXG14f 4 μsec 60 sec
TXG20 4 μsec 60 sec
TXG50 4 μsec 2 sec
Color
TXG02c 4 μsec 60 sec
TXG03c 4 μsec 60 sec
TXG04c 4 μsec 60 sec
TXG06c 4 μsec 60 sec
TXG08c 4 μsec 60 sec
TXG12c 4 μsec 60 sec
TXG13c 4 μsec 60 sec
TXG14c 4 μsec 60 sec
TXG20c 4 μsec 60 sec
TXG50c 4 μsec 2 sec

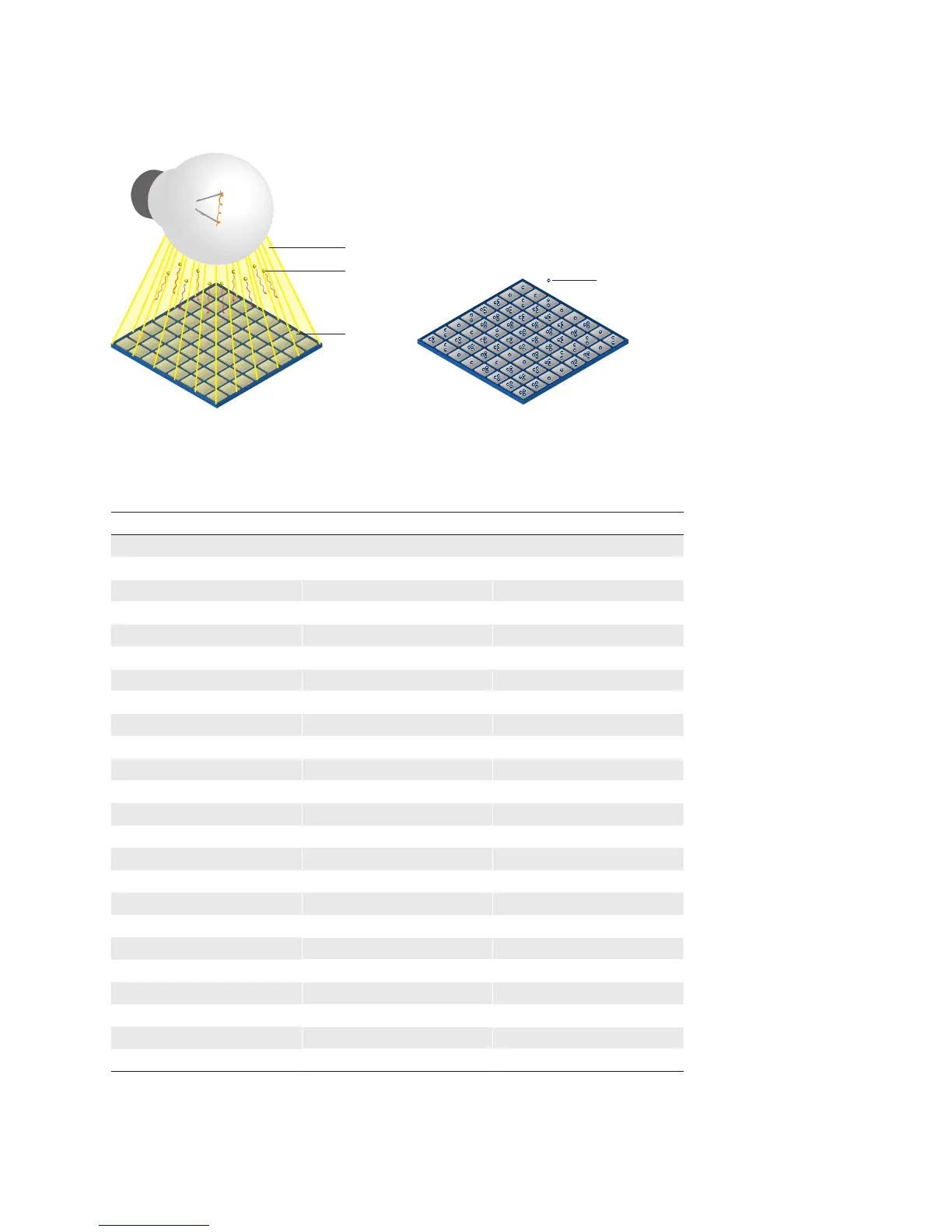

◄Figure33
Incidence of light causes
charge separation on
the semiconductors of
the sensor.
