Baumer TXG - 4.3.2 One Push White Balance

43
OnePush4.3.2 WhiteBalance
Here, the three color spectrums are balanced to a single white point. The correction fac-
tors of the color gains are determined by the camera (one time).
non-adjusted
histogramm
histogramm after
„one push“ white
balance
4.4 AnalogControls
4.4.1 Offset/BlackLevel
On Baumer cameras, the offset (or black level) is adjustable from 0 to 16 LSB (relating
to 8 bit).
CameraType StepSize1LSB
Relatingto
Monochrome
TXG02 12 bit
TXG03 12 bit
TXG04 14 bit
TXG04h 14 bit
TXG06 12 bit
TXG08 12 bit
TXG12 14 bit
TXG13 12 bit
TXG14 12 bit
TXG14f 14 bit
TXG20 12 bit
TXG50 14 bit
Color
TXG02c 14 bit
TXG03c 12 bit
TXG04c 14 bit
TXG06c 12 bit
TXG08c 12 bit
TXG12c 14 bit
TXG13c 12 bit
TXG14c 12 bit
TXG20c 12 bit
TXG50c 14 bit

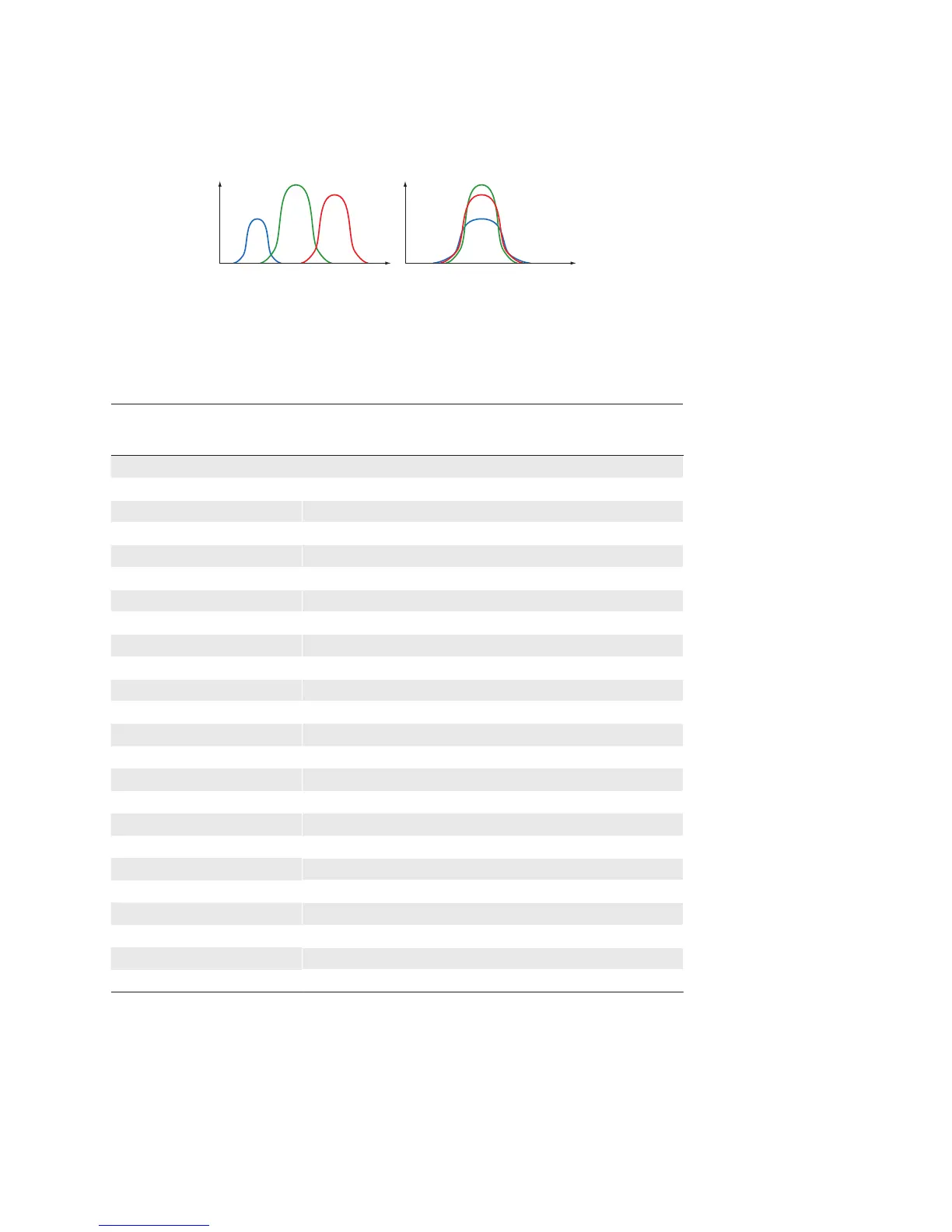

◄Figure44
Examples of histo-
gramms for a non-ad-
justed image and for an
image after "one push"
white balance.
