Baumer TXG - 2.4.4 Advanced Timings for GigE Vision Message Channel

29
AdvancedTimingsfor2.4.4 GigEVision
®
MessageChannel

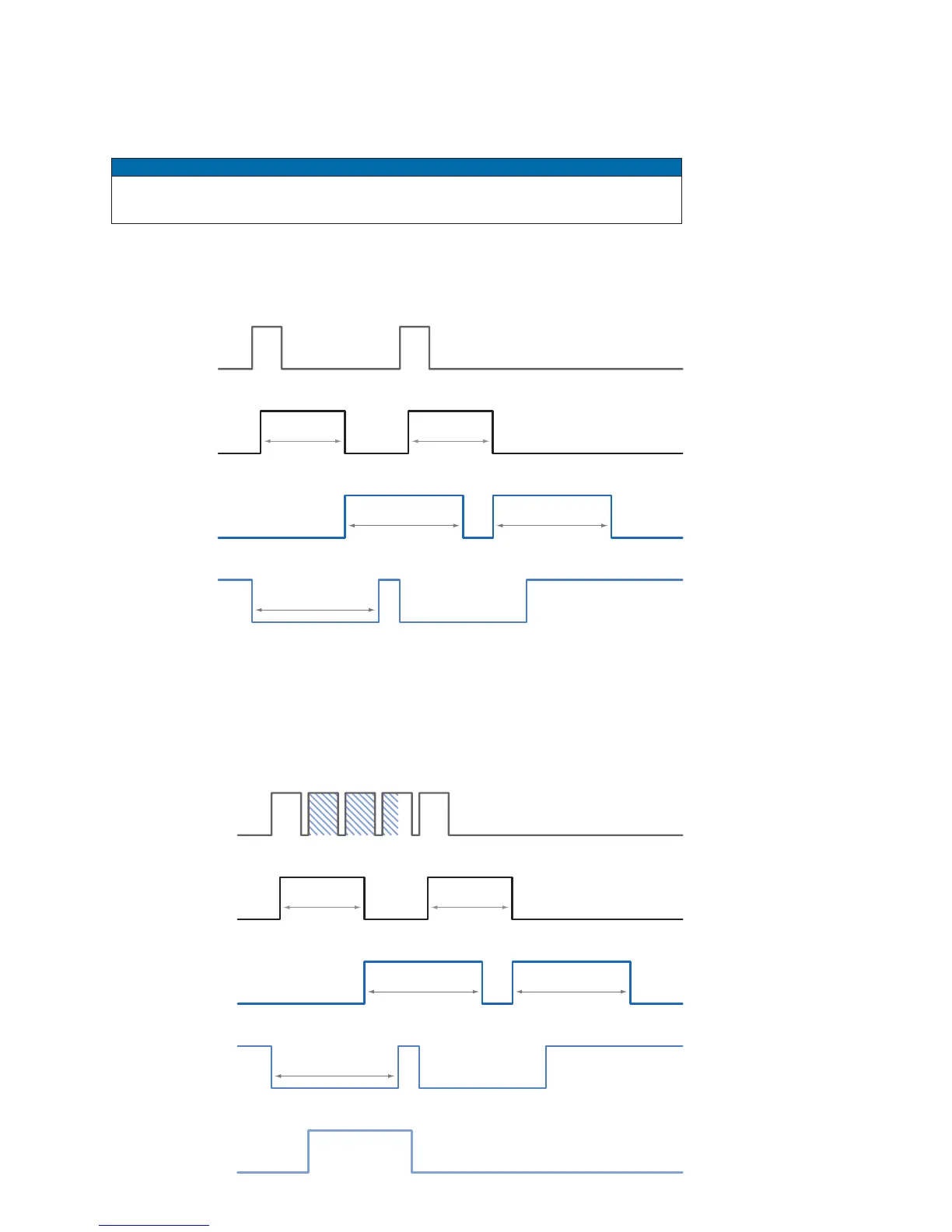

The following charts show some timings for the event signaling by the asynchronous
message channel. Vendor-specic events like "TriggerReady", "TriggerSkipped", "Trig-
gerOverlapped" and "ReadoutActive" are explained.
Notice
For further information on the message channel mentioned above, please see
section 5.6.
2.4.4.1 TriggerReady
This event signals whether the camera is able to process incoming trigger signals or not.
Exposure
Readout
t
exposure(n)
t
readout(n+1)
t
readout(n)
t
exposure(n+1)
Trigger
TriggerReady
t
notready
2.4.4.2 TriggerSkipped
If the camera is unable to process incoming trigger signals, which means the camera
should be triggered within the interval t
notready
, these triggers are skipped. On Baumer
TXG cameras the user will be informed about this fact by means of the event "Trigger-
Skipped".
Exposure
Readout
t
exposure(n)
t
readout(n+1)
t
readout(n)
t
exposure(n+1)
Trigger
TriggerReady
t
notready
TriggerSkipped
