2. ProductSpecications
2.1 SpectralSensitivityforBaumerTXGCameras
The spectral sensitivity characteristics of monochrome and color matrix sensors for
Baumer Gigabit Ethernet cameras are displayed in the following graphs. The charac-
teristic curves for the sensors do not take the characteristics of lenses and light sources
without lters into consideration.
Values relating to the respective technical data sheets of SONY Corporation.
400 500 600 700 800 900 1000
0
0 2
0 4
0 6
0 8
1 0
Wave Length [nm]
Relative Response
TXG02
400 450 500 550 600 650 700
0
0 2
0 4
0 6
0 8
1 0
Wave Length [nm]
Relative Response
TXG02c
400 500 600 700 800 900 1000
0
0 2
0 4
0 6
0 8
1 0
Wave Length [nm]
Relative Response
TXG03
400 450 500 550 600 650 700
0
0 2
0 4
0 6
0 8
1 0
Wave Length [nm]
Relative Response
TXG03c
400 500 600 700 800 900 1000
0
0 2
0 4
0 6
0 8
1 0
Wave Length [nm]
Relative Response
TXG04
400 450 500 550 600 650 700
0
0 2
0 4
0 6
0 8
1 0
Wave Length [nm]
Relative Response
TXG04c

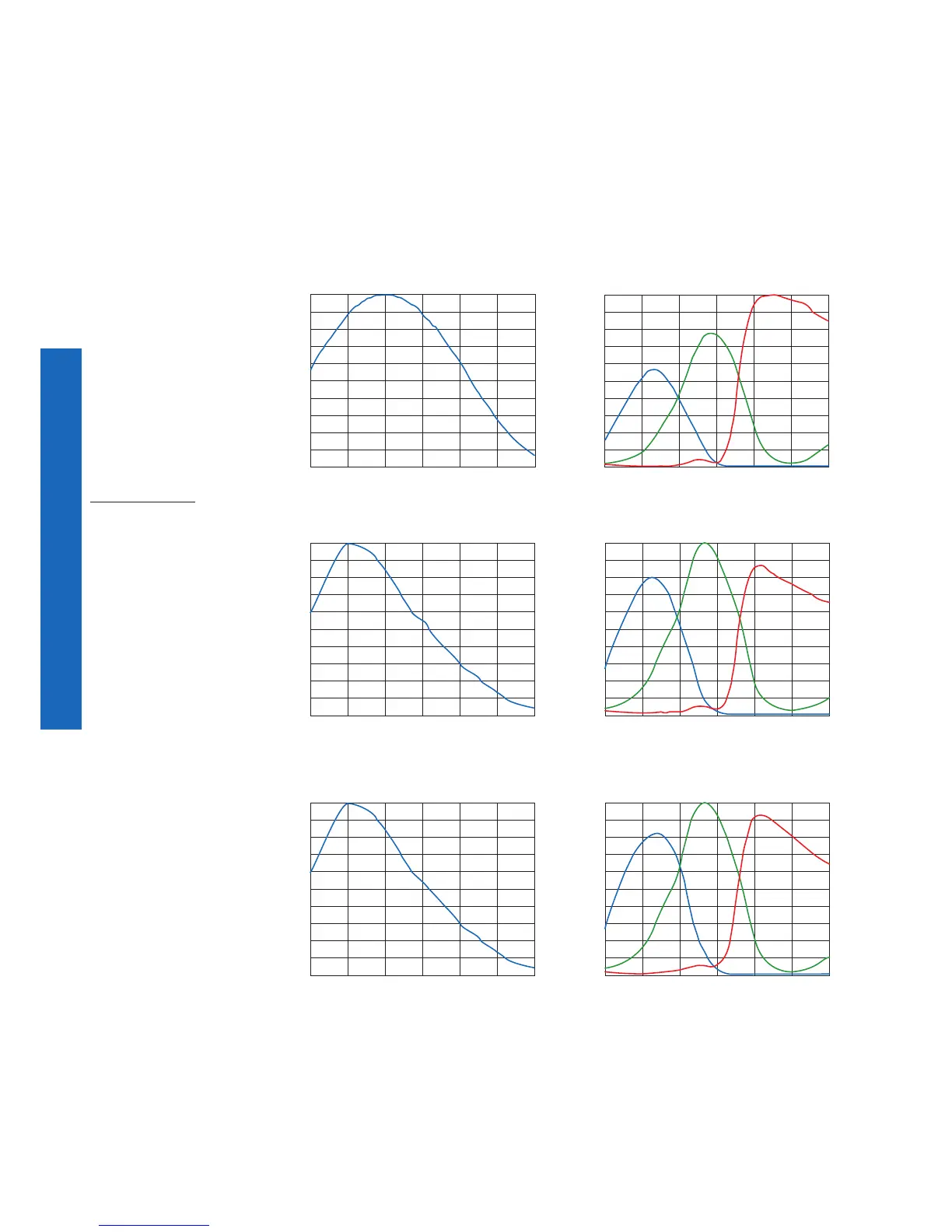

Figure12►
Spectral sensitivities for
Baumer cameras with
0.3 MP
*)
CCD sensor.
*) MP = Megapixels
Figure13►
Spectral sensitivities for
Baumer cameras with
0.3 MP CCD sensor.
Figure14►
Spectral sensitivities for
Baumer cameras with
0.3 MP CCD sensor.
