Baumer TXG - 2.4 Acquisition Modes and Timings

23
2.3.3 LEDsofCameraTypes
CameraType 2 LEDs 3 LEDs
Standard ■ □
PoE □ ■
I7 ■ □
E7 ■ □
m3 ■ □
2.3.3.1 LEDSignaling
1
1
2
3
2
2 LEDs Signal Meaning
1
green Power on
yellow Readout active
2
green Link active
green ash Receiving
yellow Transmitting
yellow / red ash Receiving and Transmitting
3 LEDs Signal Meaning
1
green Power on
yellow Readout active
2
green Link active
green ash Receiving
3 red Transmitting
2.4 AcquisitionModesandTimings
The image acquisition consists of two seperate, successively processed components.
Exposing the pixels on the photosensitive surface of the sensor is only the rst part of the
image acquisition. After completion of the rst step, the pixels are read out.
Thereby the exposure time (t
exposure
) can be adjusted by the user, however, the time need-
ed for the readout (t
readout
) is given by the particular sensor and image format.
Baumer cameras can be operated with three modes, the Free Running Mode, the Fixed-
Frame-Rate Mode and the Trigger Mode.

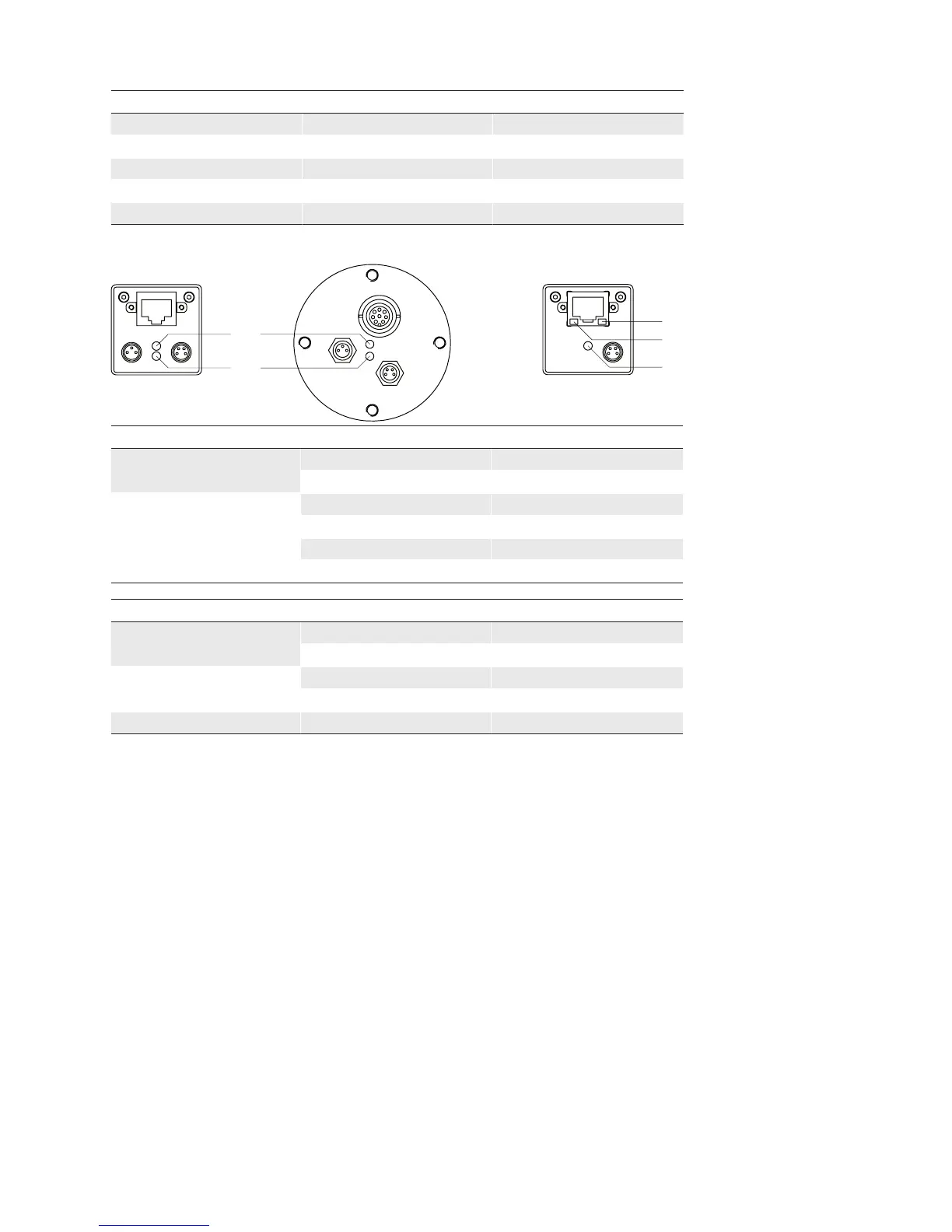

◄Figure25
LED positions on
Baumer TXG cameras.
