Baumer VCXG .I - VCXU Chunk Data Packets

121
9.3 Chunk
The chunk is a data packet that is generated by the camera and integrated into the pay-
load (every image), if chunk mode is activated.
This integrated data packet can contains adjustable settings for the image.
Rel. 1
Feature Description
BinningHorizontal Number of horizontal photo-sensitive cells to combine
together.
BinningVertical Number of vertical photo-sensitive cells to combine
together.
BlackLevel Returns the black level used to capture the image includ-
ed in the payload.
DeviceTemperature Device temperature in degrees Celsius (C). It is measured
at the location selected by DeviceTemperatureSelector.
ExposureTime Returns the exposure time used to capture the image.
FrameID Returns the unique Identier of the frame (or image)
included in the payload.
Gain Returns the gain used to capture the image.
Height Returns the height of the image included in the payload.
Image Transmits the Image data in chunk block.
ImageControl (subordinate features only together selectable)
BrightnessCorrection On/Off for the Brightness Correction.
DefectPixelCorrection On/Off the correction of defect pixels.
LUTSelector Selects the Chunk LUT.
LUTEnable On/Off the selected LUT.
ReverseX On/Off Flip horizontally the image sent by the device. The
Region of interest is applied after the ipping
ReverseY On/Off Flip vertically the image sent by the device. The
Region of interest is applied after the ipping.
LineStatusAll Returns the current status of all available Line signals at
time of polling in a single biteld.
OffsetX Horizontal offset from the origin to the area of interest (in
pixels).
OffsetY Vertical offset from the origin to the area of interest
(in pixels).
PixelFormat Returns the pixel format of the image included in the pay-
load.
Timestamp Returns the Timestamp of the image included in the pay-
load at the time of the FrameStart internal event.
Width Returns the width of the image included in the payload.

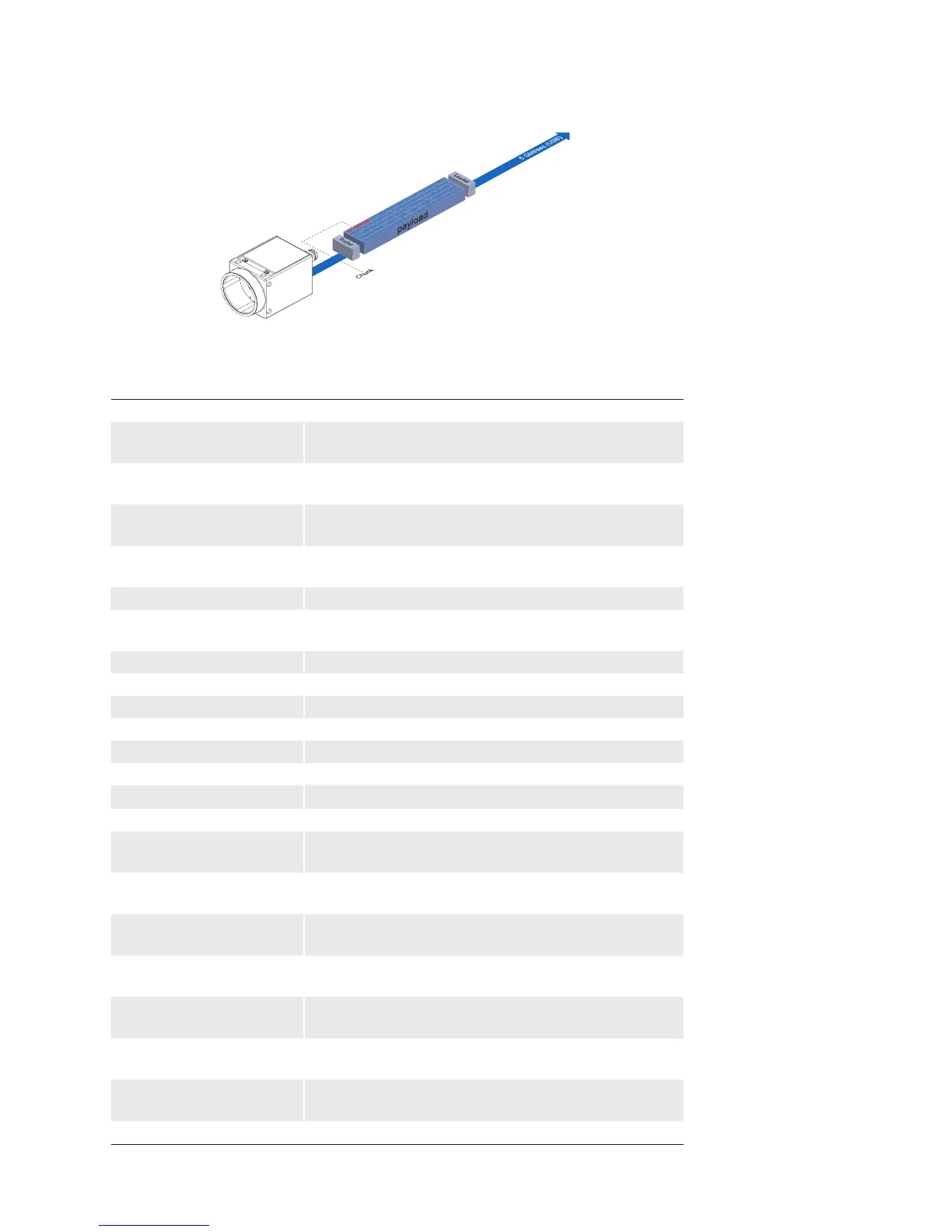

◄Figure71
Location of the chunk
